PCOM-BC00

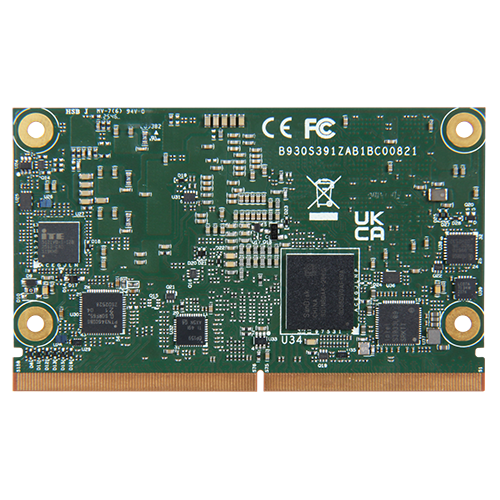

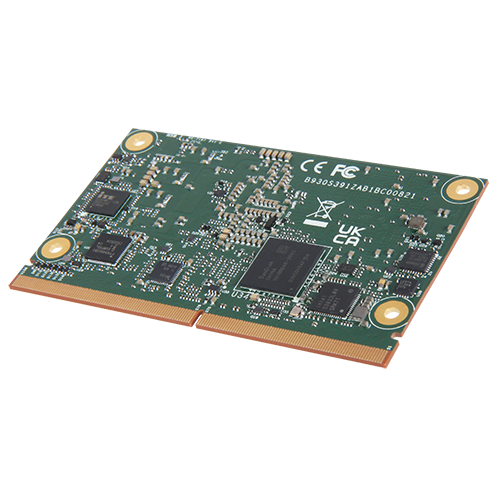

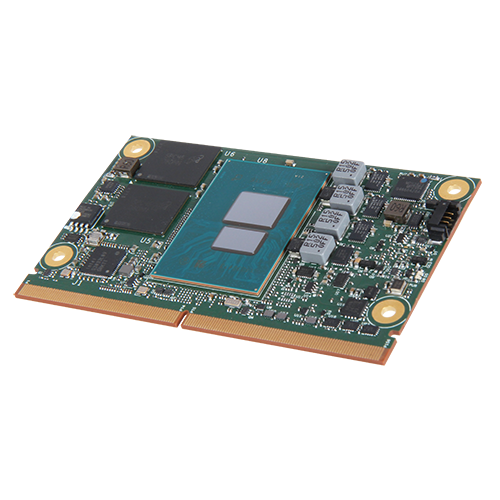

SMARC 2.2 Compliant module (82 x 50 mm) powered by Intel® Alder Lake-N, Amston Lake (Atom® x7000RE), and Twin Lake (Core Processor N) Series SoCs, featuring onboard LPDDR5 SDRAM
- Intel ® Alder Lake N & Amston Lake & Twin Lake series
- Onboard LPDDR5 SDRAM up to 16GB & eMMC up to 256GB
- Support wide temperature -40°C ~ 85°C (Selected SKU)
- Support Intel ® TCC/TSN with 2.5GbE (Selected SKU)
- Low Power Consumption (6W to 15W), 4K Display resolution
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | SMARC |
|---|---|
| CPU | Core3-N355 x7211E x7213E x7211RE x7213RE x7433RE x7835RE |
| Core/Thread | 8C/8T 2C 2C 2C 2C 4C 8C |
| Based Frequency | N/A 1 1.7 1 2 1.5 1.3 |
| Turbo Frequency | 3.9 3.2 3.2 3.2 3.4 3.4 3.6 |
| Cache | 6 6 6 6 6 6 6 |
| TDP | 15 6 10 6 9 9 12 |
| Graphics EU | 32 16 16 16 16 32 32 |
| Graphics Max Freq. | 1.35 1 1 1 1 1 1.2 |
| Memory Type/Speed | 1x DDR5 SO-DIMM up to 48GB 4800MT/s1x DDR5 SO-DIMM up to 48GB 4800MT/s1x DDR5 SO-DIMM up to 48GB 4800MT/s1x DDR5 SO-DIMM up to 48GB 4800MT/s1x DDR5 SO-DIMM up to 48GB 4800MT/s1x DDR5 SO-DIMM up to 48GB 4800MT/s1x DDR5 SO-DIMM up to 48GB 4800MT/s |
| ECC Memory Support | No Support No Support No Support No Support No Support No Support No Support |
| Temperature Range | 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) -40 °C to 85 °C(-40 ~ 185 °F) -40 °C to 85 °C(-40 ~ 185 °F) -40 °C to 85 °C(-40 ~ 185 °F) -40 °C to 85 °C(-40 ~ 185 °F) |
| BIOS | AMI uEFI BIOS |
| Storage | eMMC up to 256GB |
| Memory | 2 x On Board LPDDR5 up to 16GB |
| SATA | 1 x SATA III |
| USB | 2 x USB 3.2 Gen26 x USB 2.0 |
| Ethernet | 2 x 2.5 Gbe LAN |
| PCIe | 4 x PCIe Gen3 x1 |
| Legacy I/O | 1 x GPIO1 x I2C1 x SMBus2 x UART |
| Display | DDI |
| Operating Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| OS | Windows 11, Ubuntu 24.04 |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| TBD | PCOM-BC00-N355-16G-256G | Twin Lake N355 (8C,3.9Ghz , 16G+256G, 15W) | add to list – PCOM-BC00-N355-16G-256G |
| TBD | PCOM-BC00-x7211RE-4G-32G | Amston Lake x7211RE (2C, 1.0GHz, 4G+32G, 6W, Wide-temp) | add to list – PCOM-BC00-x7211RE-4G-32G |
| TBD | PCOM-BC00-x7213RE-8G-32G | Amston Lake x7213RE (2C, 2.0GHz, 8G+32G, 9W, Wide-temp) | add to list – PCOM-BC00-x7213RE-8G-32G |
| TBD | PCOM-BC00-x7433RE-16G-64G | Amston Lake x7433RE (4C, 1.5GHz, 16G+64G, 9W, Wide-temp) | add to list – PCOM-BC00-x7433RE-16G-64G |
| TBD | PCOM-BC00-x7835RE-16G-256G | Amston Lake x7835RE (8C, 1.3GHz, 16G+256G, 12W, Wide-temp) | add to list – PCOM-BC00-x7835RE-16G-256G |
| TBD | PCOM-BC00-x7211E-4G-32G | Alder Lake-N x7211E (2C, 1.0GHz, 4G+32G, 6W) | add to list – PCOM-BC00-x7211E-4G-32G |
| TBD | PCOM-BC00-x7213E-8G-32G | Alder Lake-N x7213E (2C, 1.7GHz, 8G+32G, 10W) | add to list – PCOM-BC00-x7213E-8G-32G |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCOM-BC00 | Datasheet | 514.90 KB | download – PCOM-BC00 | Datasheet |
