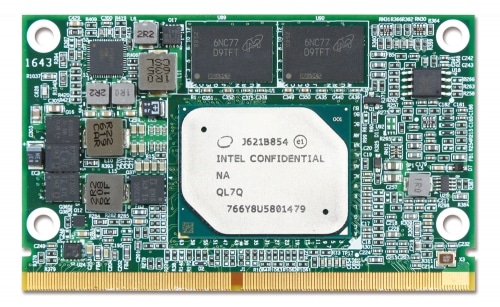

PSMC-M101
SMARC module by SMARC 2.0 based on Intel® Atom™ / Pentium® / Celeron® processors (Apollo Lake) with LPDDR4 SDRAM up to 8GB, 24bit LVDS, DP, HDMI®
- Intel Atom ® / Pentium ® / Celeron ® processors (“Apollo Lake”)
- On Board LPDDR4 DRAM and up to 8GB
- On Board eMMC 5.0 (Optional)
- 24-bit LVDS, HDMI ® , and DP output
- Four PCI Express x1 lanes
- Support two USB 3.0 and six USB 2.0
Platform Overview
About this series
PSMC-M101 is designed withIntel® Atom™/ Pentium®/ Celeron® processors (“APOLLO LAKE”) processors featured with higher graphic performance and wider memory bandwidth than the previous platform. Based on Intel Apollo Lake industrial grade processor support, industrial components selecting, and with wide-voltage input design adding on board, PSMC-M101 not only aims at various applications(i.e. automation, fire security, transportations), but is also set to support kinds of harsh environment with a stable power input.
| AB7-3051Z | (R). PSMC-M101-E3950-4G-8G. Atom E3950 Quad Core 2.0 GHz. SMARC Module/EC/LVDS |
| Contact us | (R). PSMC-M101-N3350-4G-8G. Celeron N3350 Dual Core 2.4 GHz. SMARC Module/EC/LVDS |
| Contact us | (R). PSMC-M101-N4200-4G-8G. Pentium N4200 Quad Core 2.5 GHz. SMARC Module/EC/LVDS |
| Contact us | (R). PSMC-M101-Exxx-xG-xG. With chosen CPU, memory and eMMC |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB7-3051Z | PSMC-M101-E3950-4G-8G | Atom E3950 Quad Core 2.0 GHz. SMARC Module/EC/LVDS | add to list – PSMC-M101-E3950-4G-8G |
| Contact us | PSMC-M101-N3350-4G-8G | Celeron N3350 Dual Core 2.4 GHz. SMARC Module/EC/LVDS | add to list – PSMC-M101-N3350-4G-8G |
| Contact us | PSMC-M101-N4200-4G-8G | Pentium N4200 Quad Core 2.5 GHz. SMARC Module/EC/LVDS | add to list – PSMC-M101-N4200-4G-8G |
| Contact us | PSMC-M101-Exxx-xG-xG | With chosen CPU, memory and eMMC | add to list – PSMC-M101-Exxx-xG-xG |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PSMC-M101 | Datasheet | 1.01 MB | download – PSMC-M101 | Datasheet |
