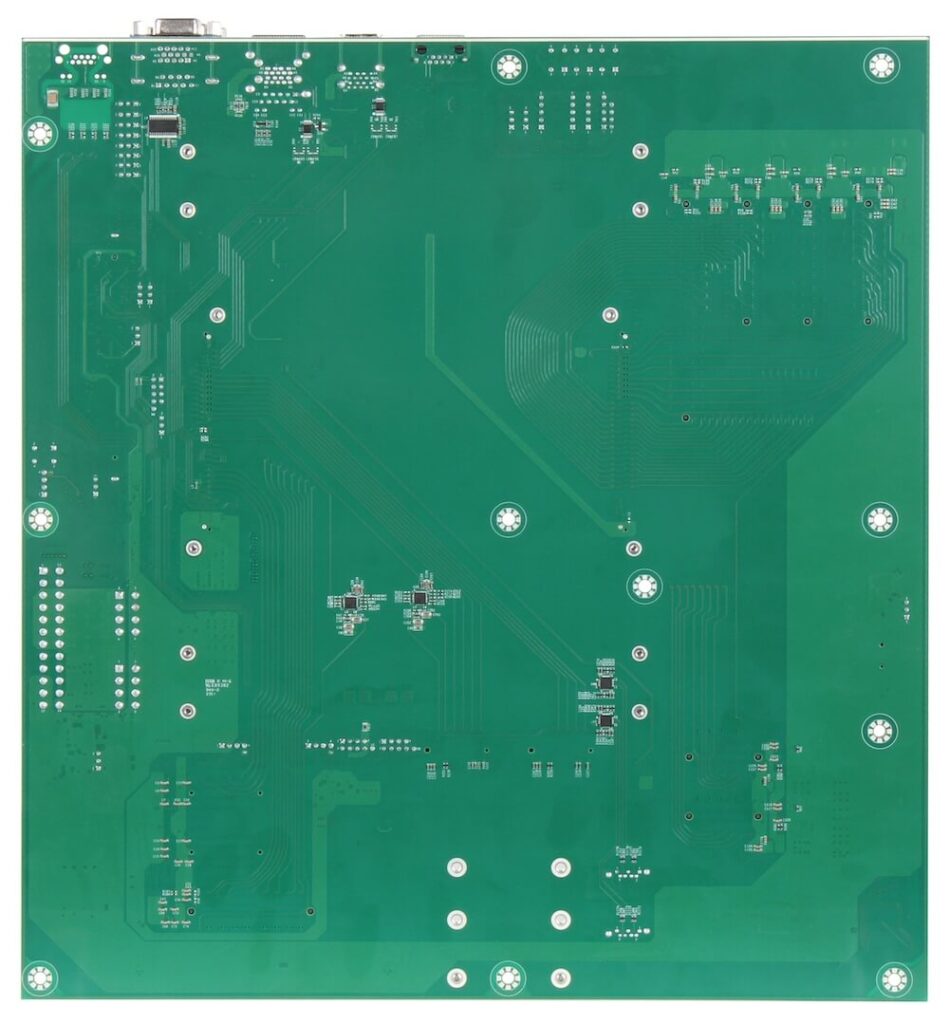

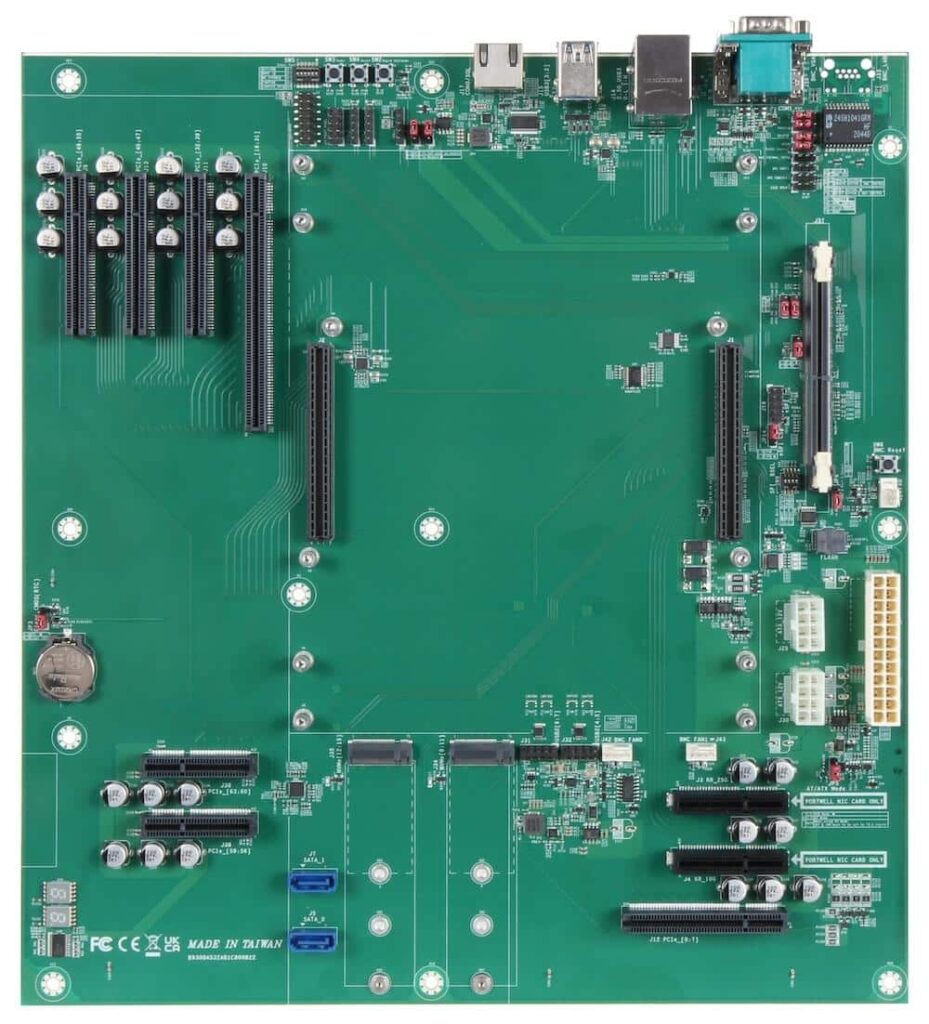

PCOM-C800
eATX (305x330mm) Form Factor Evaluation Carrier Board for COM-HPC Server Module
- COM-HPC Carrier Board Support COM-HPC Sever Size D and E Modules
- eATX Form Factor with Full PCI Express Expansions (#0 ~ #63)
- Support PCIe Slots (One x16, Four x8, Two x4, Two M.2 NVME x4 and RunBMC
- Support OCP RunBMC Slot and Proprietary PHY Card for KR0 / KR1 Extension
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Product | PCOM-C800 |
|---|---|
| Form Factor | eATX size(305x330mm) |
| Support module | COM-HPC Server , size D and E |
| General Function | RTC battery BIOS SPI Socket Power BTN / Reset BTN / Rapid shutdown BTN Two NVME PCIe 3.0 x4,Support 2242/2260/2280 OCP RunBMC Slot based on Rev 1.4.1 Independent 1GbE RJ45 management port and VGA Connector |
| SATA | 2x SATA III |
| USB | 4x USB 3.2 Gen2 Type A at Rear I/O4x USB 2.0 in pin header |
| Ethernet | 1x GbE MDI from OCP RunBMC module with RJ45 connector at rear I/O1x 2.5GbE MDI from module with RJ45 connector at rear I/O Eight 10G/(25G) Ethernet KR signals from module with two proprietary PCIe x4 slots |
| Serial I/O | GPIO I 2 C SMBus UART |
| PCI Express | One PCI Express x16 connector (#16 ~ #31) Four PCI Express x8 connector (#0 ~ #7, #32 ~ #55) Two PCI Express x4 connector (#56 ~ #63) Two M.2 M-Key NVMe (#8 ~ #15) |
| Others | System Fan connector x1, 4 PIN PWM Smart FAN Type (Temperature and voltages monitoring) |
| Dimension | 305mm x 330mm |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | -40 ~ 85 °C |
| Storage Humidity | 0% ~ 95% |
| Operation Humidity | 0% ~ 95% |
- CPU and General
- I/O Interface
- MECHANICAL & ENVIRONMENT
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3L52Z | PCOM-C800 | add to list – PCOM-C800 |
