Carrier Boards
PCOM-C800
eATX (305x330mm) Form Factor Evaluation Carrier Board for COM-HPC Server Module
- Portwell

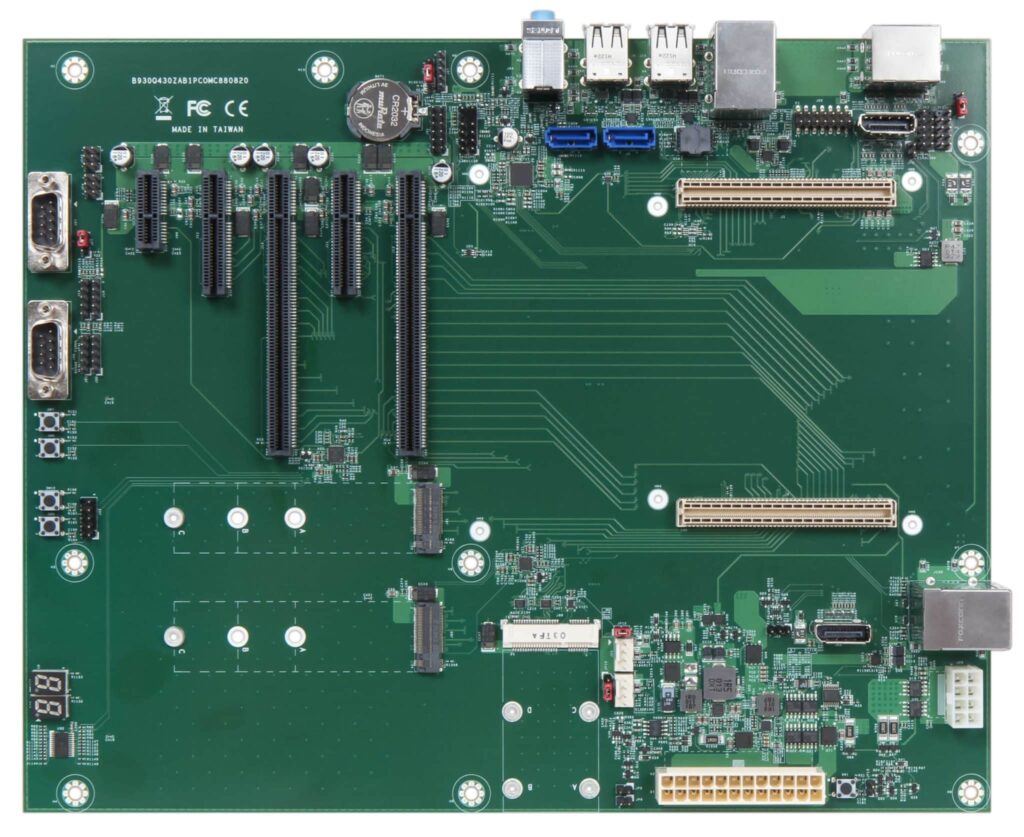

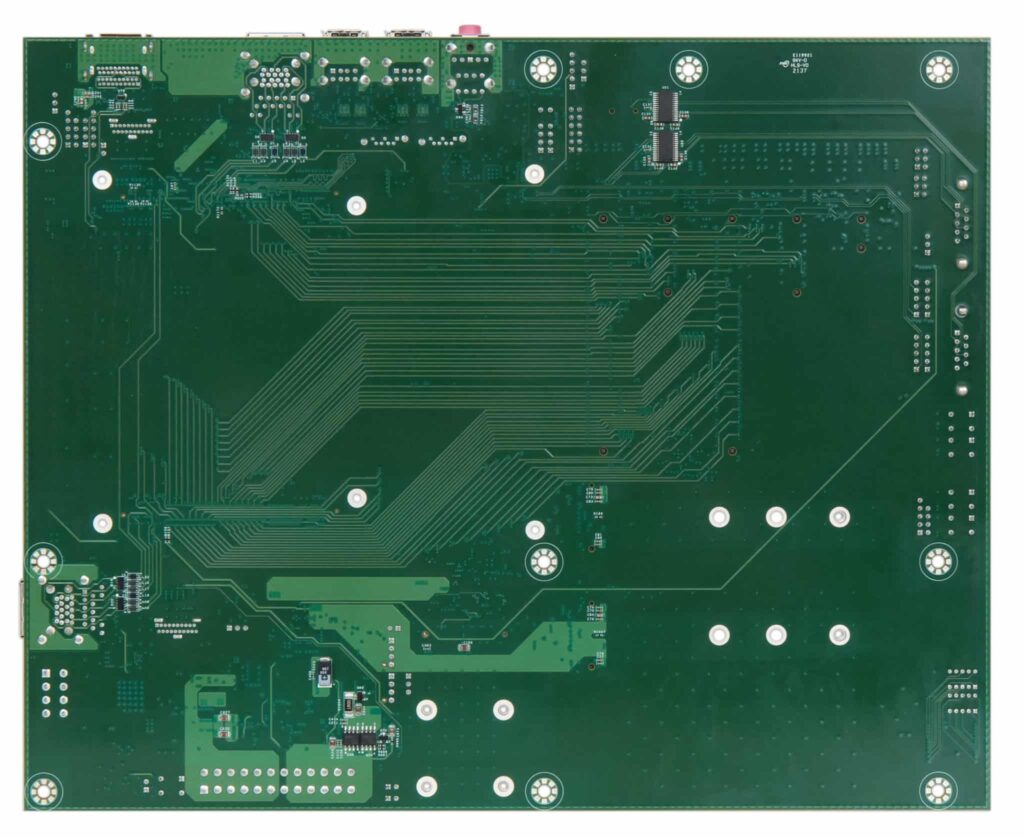

PCOM-C880
ATX size form factor evaluation carrier board for COM-HPC client module
- COM-HPC carrier board support COM-HPC client size A/B/C modules
- ATX size form factor provides extra expansions slot, and follows the standard space mounting
- Supports USB 3.2 Gen2, SATA, PCIe Gen4, 2.5G RJ45, Displayport
- Support wide temperature -40°C to 85°C
- Standard ATX PSU input
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Product | Product PCOM-C880 |
|---|---|
| Form Factor | ATX size (305mm x 244mm) |
| Supported Module | COM-HPC client , size A / B / C |
| General Function | RTC battery Postcode display BIOS SPI Socket Power BTN / Reset BTN Lid BTN / Sleep BTN RapidShutdown BTN |
| Audio codec | Realtek ALC888s I/O Interface |
| SATA | 2 x SATA III |
| USB | 4x USB 3.2 Gen2 port +4x USB 2.0 port |
| Ethernet | 2x 2.5Gbe RJ45 |
| PCI Express | 2x PCIe 4.0 x162x PCIe 4.0 x42x M.2 M key1x PCIe x1 (Route to BMC lane) Certification |
| Display | Default Options |
| DDI | 3x DP |
| eDP | 1x DP (Route to standard DP for evaluation purpose) |
| Legacy I/O | GPIO12x GPIO |
| I 2 C | 2x I 2 C header |
| SMBus | 1x SMBUS header |
| UART | 2x DB9 UART (Tx/Rx) |
| GP SPI | 1x GP SPI header |
| Others | Audio jack2x FAN (1x support PWM control) MIPI-CSI (for signal measurement purpose) MECHANICAL & ENVIRONMENT |
| Power DC IN | ATX 24 pin ATX 8 pin |
| Operation Temperature | -40 °C to 85 °C |
| MTBF | TBD |
| Vibration | TBD |
| Dimension | ATX 305mm x 244mm |
| Storage Temperature | -40 °C to 85 °C |
| Certification | TBD |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3L34Z | PCOM-C880 | add to list – PCOM-C880 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCOM-C880 | Datasheet | 454.31 KB | download – PCOM-C880 | Datasheet |
