PJAI-100
Fanless Compact System with NVIDIA® Jetson Orin module for Edge AI Applications
- Fanless System with NVIDIA ® Jetson Orin module up to 100 TOPS
- 4GB/8GB 64-bit LPDDR5 (By SOM)
- 1x M.2 2280 M-Key NVMe (PCIe x4)

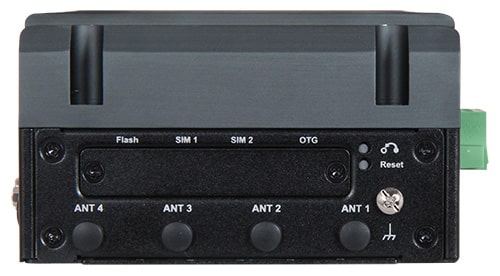

- Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key and 2x Nano SIM slots

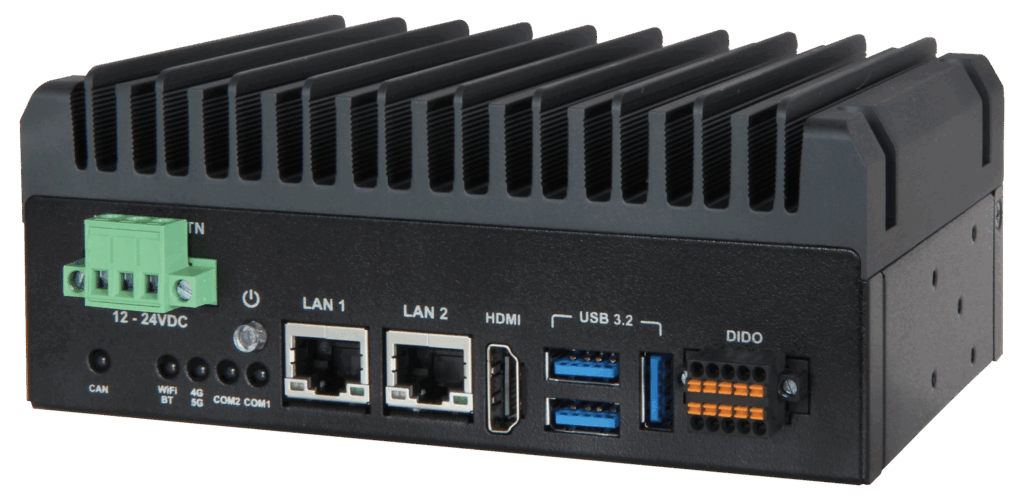

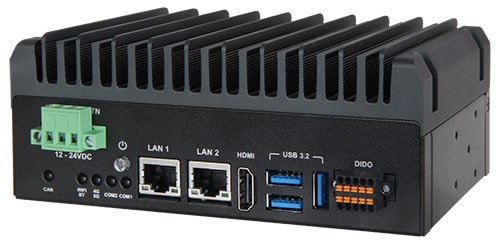

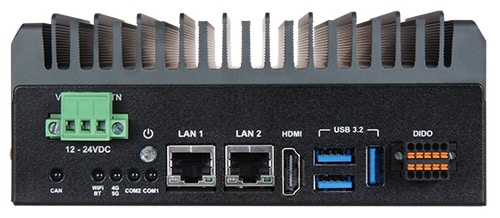

- Supports 2x RJ45 GbE and 3x USB 3.2 Type A ports

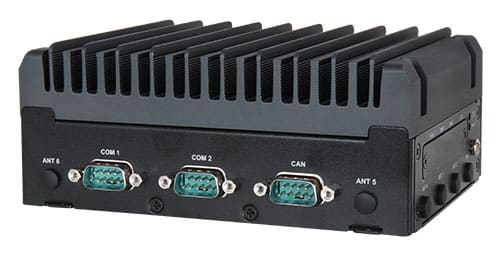

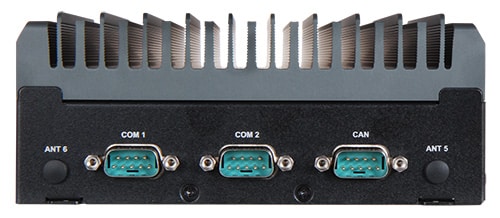

- 2x DB9 COM ports and 1x DB9 CANbus
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| SOM | NVIDIA ® Jetson Orin |
|---|---|
| CPU | 6/8-core Arm ® Cortex ® -A78AE v8.2 CPU |
| Memory | 4/8GB 64-bit LPDDR5 (By SOM) |
| Storage | 1x M.2 2280 M-Key (PCIe x4) |
| Expansion | 1x M.2 2280 M-Key (PCIe x4)1x M.2 3042/3052 B-Key1x M.2 2230 E-Key2x Nano SIM slots |
| Ethernet | 2x RJ45 GbE ports |
| USB | 3x USB 3.2 Gen1 Type-A2x USB 2.0 pin-header1x USB 2.0 Micro-USB for debug1x USB 2.0 Type C for OS Flash |
| DIO | 8x DIDO |
| Serial Port | 2x DB9 COM port for RS-232/422/4851x DB9 CANbus |
| Display | HDMI ® (Max. resolution 3840×2160 @ 60Hz) |

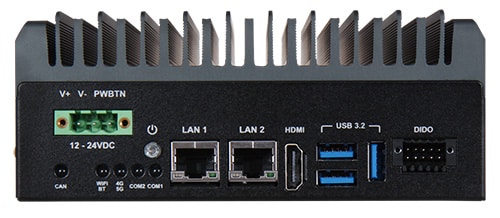

| Power Input | DC-IN 12V ~ 24V with 3-pin terminal block |
| Operating Temp | -20 °C to 60 °C (-4 °F ~ 140 °F) |
| Storage Temp | -40 °C ~ 85 °C (-40 °F ~ 176 °F) |
| Humidity | 5 ~ 95% @ 40 °C, non-condensing |
| Dimension | 152 x112 x 62 mm (5.9" x 4.4" x 2.5") |
| Weight | 1.4kg (3.08lbs) |
| Mounting | Wall mount / DIN-Rail (optional) |
