PJAI-1100F
Compact System with NVIDIA® Jetson Orin NX™ PJAI-1100F-OX for Edge AI Applications
- Compact System with NVIDIA ® Jetson Orin module up to 157 TOPS
- 8GB/16GB 64-bit LPDDR5 (By SOM)
- Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key,1x M.2 2280 M-Key NVMe (PCIe x4) and 2x Nano SIM slots

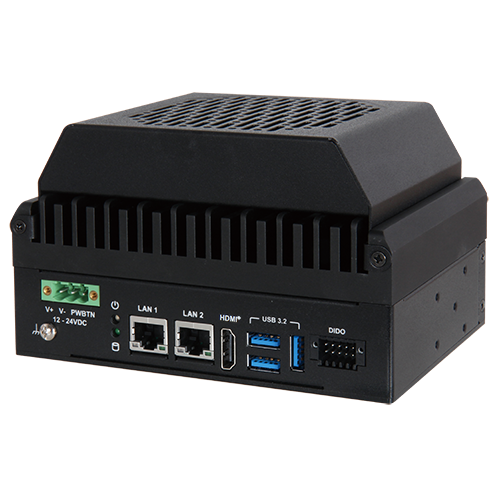

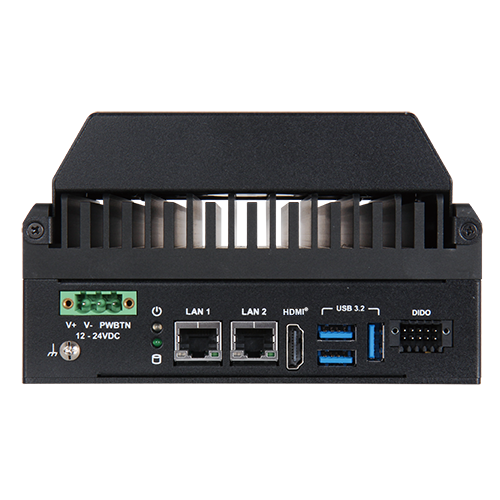

- Supports 2x RJ45 GbE and 3x USB 3.2 Type A ports

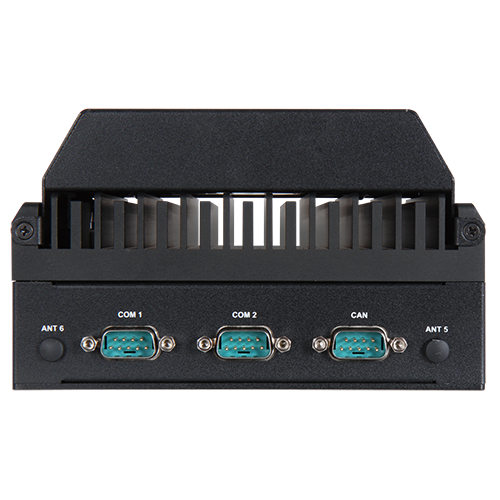

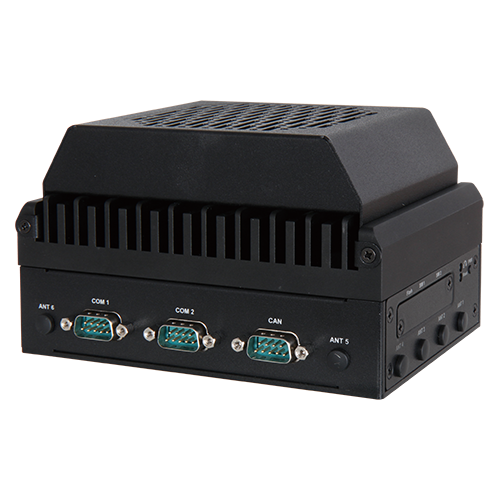

- 2x DB9 COM ports and 1x DB9 CANbus
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | NVIDIA ® Jetson Orin™ NX 8GB NVIDIA ® Jetson Orin™ NX 16GB |
| Memory | Support up to 16GB LPDDR5 on board |
| Storage | 1 x M.2 Key-M NVMe PCIe x4 2280 |
| Ethernet | 2 x 1 GbE LAN |
| Serial Port | 2 x COM Ports Support RS-232/422/4851 x CANbus FD |
| USB | 3 x USB 3.2 Gen2 x1 (10Gbps) Type A1 x USB 3.2 Gen2 x1 (10Gbps) Type C |
| GPIO | 1 x 8-bit Digital I/Os |
| Display | 1 x HDMI ® 2.0b |
| Other | Power Button, Reset Button, Recovery Button |
| LED | Power, Storage |
| Antenna | 6 x SMA Antenna holes for LTE / 5G / Wi-Fi |
| SIM Slots | 2 x Nano-SIM |
| M.2 | 1 x B Key w/ 3042/30521 x E Key w/ 2230 |
| Dimension (WxDxH) | 152 x112 x 90 mm (5.98" x 4.41" x 3.54" ) |
| Weight | 1.61 kg |
| Mounting | Wall Mount |
| Cooling | System1 x Fan |
| Power Supply | Terminal Block 12 ~ 24V |
| Vibration | 1G 5 ~ 500Hz with Wall mount (IEC/EN 60068-2-6) |
| Shock | 50G 11m sec with Wall mount (IEC/EN 60068-2-27) |
| BSP | 6.2 |
| Operating Temperature | -20 ~ 60 °C (-4.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC/UKCA Class A |
| OS | Linux™ |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3724 | PJAI-1100F-OX8G ATO | Embedded System. NVIDIA Jetson Orin NX(8GB) (260pin SO-DIMM),12-24V | add to list – PJAI-1100F-OX8G |
| AS5-3725 | PJAI-1100F-OX16G ATO | Embedded System. NVIDIA Jetson Orin NX(16GB) (260pin SO-DIMM),12-24V | add to list – PJAI-1100F-OX16G |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PJAI-1100F | Software | 126.78 MB | download – PJAI-1100F | Software |
| PJAI-1100F | User Manual | 3.30 MB | download – PJAI-1100F | User Manual |
| PJAI-1100F | Datasheet | 639.40 KB | download – PJAI-1100F | Datasheet |
