PS/2 ATX
- Portwell
- EOL (End of Life)

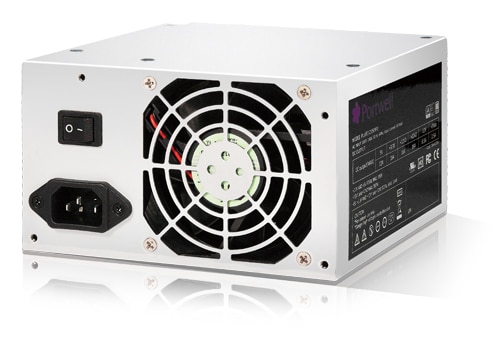

PLUTO-D5001PJ
500W PS/2 ATX Power Supply with active PFC Japan made capacitor 80 PLUS and SCP, OCP,OPP
- Meets ATX 12V V2.3 standard
- Dual forward converter design
- Support Intel ® Core™ i series and Xeon Series CPU
- Active PFC (power factor correction) > 0.99
- Double independent +12V output
- Power Efficiency (25°C and 50°C can meet the minimum efficiency(80%) for all loading conditions (20%,50,100%))
- Leakage current: Less 3.5 mA-rms at 264Vac, 60 Hz
- Made in Japan capacitor (RUBYCON)
- Fan Control (Internal 80mm fan)
- Remote ON/OFF Control
- Hold-up Time in 16ms
- Power Good signal : TTL compatible on delay 100ms to 500ms
- Short Circuit Protection
- Over Voltage Protection
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| MTBF | 100,000 Hours at 100% loading |
|---|---|
| Temperature/ Humidity | Storage: -40 °C ~ 70 °C, 10% ~ 25°%(non-condensing)Operation: 5 °C ~ 50 °C, 20% ~ 85°%(non-condensing) |
| Risetime | 10 ms. |
| Dimension (W x D x H) | 150 x140 x 85mm; 5.9” x 7.2” x 3.4” |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PLUTO-D5001PJ | Datasheet | 926.87 KB | download – PLUTO-D5001PJ | Datasheet |
