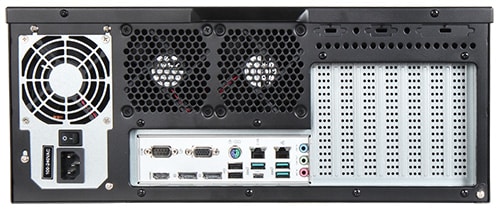

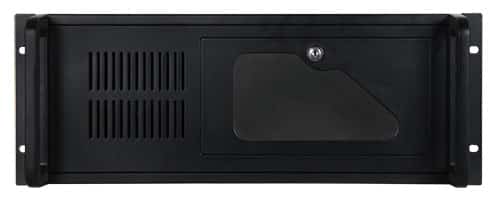

PSYS-508-Q470
Barebone system with 10th Generation Intel® Core™ i3/i5/i7/i9 based ATX board
- Support 10th Generation Intel ® Core™ i9/i7/i5/i3 processors
- Four U-DIMM support DDR4 DRAM up to 128GB
- Support two DP, one HDMI ® , one VGA display
- Support One M.2 B Key, One M.2 E Key, One M.2 M Key
- Support 1 x COM ports (1x RS-232/422/485)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Supporting Intel ® 10th-Gen Core™ i9/i7/i5/i3/Pentium/Celeron CPU (LGA1200 socket, Max 65W TDP) |
|---|---|
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Memory | 4 x U-DIMMs, max. 128GB, DDR4 |
| Storage | 6 x SATA 6.0 Gb/s ports, Supports RAID 0/1/5/10 |
| Watchdog Timer | Yes |
| TPM | 1 x SPI TPM header |
| Expansion | 1x M.2 E key, type 2230 support PCIe x1 / USB 2.0 (Antenna Kit support)1x M.2 B key, type 2260/2280/3042/3052 support PCIe x1 / USB 3.2 Gen1 / USB 2.01x M.2 M key, type 2242/2260/2280 support PCIe x4 / SATA mode1x PCIe 3.0/2.0 x16 slot (x16 mode / x8 mode)1x PCIe 3.0/2.0 x4 slot (x4 mode)1x PCIe 3.0/2.0 x16 slot (x8 mode)1x PCIe 3.0/2.0 x4 slot (x4 mode)1x PCIe 3.0/2.0 x4 slot (x2 mode)2x PCI slots |
| Internal I/O | 5x COM ports (1 x RS-232/422/485,4 x RS-232)1x USB 3.2 Gen1 connector supports additional2x USB 3.2 Gen1 ports2x USB 2.0 vertical connector1x GPIO (connector kit supported) |
| Serial Port | 1 x COM port (1 x RS-232/422/485) |
| Display | 2x DP, support DP 1.4a, up to4096 x 2160 @ 60Hz1x HDMI ® , up to4096 x 2160 @ 30Hz1x VGA, up to1920 x 1200 @ 60Hz |
| USB | 4 x USB 3.2 Gen2 (3 x Type A +1 x Type C)2 x USB 2.0 (Type A) |
| Audio | Realtek ALC887 HDA codec |
| Ethernet | 1 x GbE (Intel ® I219LM)1 x 2.5 GbE (Intel ® I225V) |
| Power Input | ATX 600W 80 Plus Gold |
| Operation Temperature | 0 °C ~ 40 °C |
| Storage Temperature | -20 °C ~ 60 °C |
| Relative Humidity | 40 °C, 85% RH non-condensing |
| Operation Vibration | 0.75 Grms / 5-500Hz, IEC 60068-2-6 |
| Operation Shock | 10G, 11 msec, IEC 60068-2-27 |
| OS | Win11 IOT LTSC |
| Dimension | 430 (W) x 450 (D) x 177 (H) mm |
| Weight | 18 Kg |
| Mounting | Rackmount |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3384 | PSYS-508-Q470 | 4U Rackmount Barebone System with Intel ® Core™-i 10th MB & 600w PSU | add to list – PSYS-508-Q470 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PSYS-508-Q470 | Datasheet | 1.01 MB | download – PSYS-508-Q470 | Datasheet |
