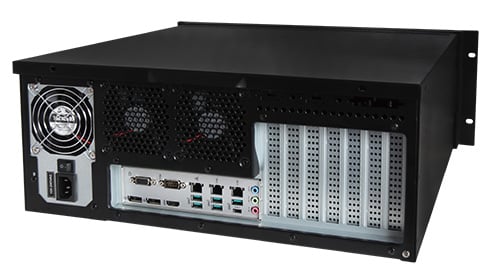

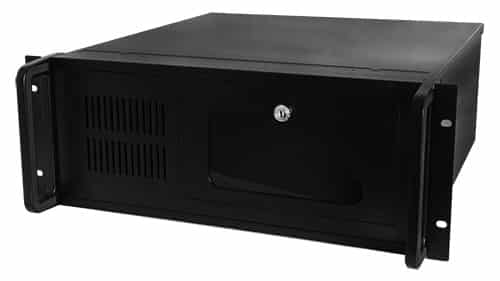

PSYS-508-Q670
Barebone system with 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 based ATX board
- Support 14 th /13 th /12 th Generation Intel ® Core ™ i9/i7/i5/i3 processors
- Four U-DIMM support DDR5 DRAM up to 128GB
- Support two DP, one HDMI ® , one VGA display
- Support One M.2 E Key, One M.2 M Key
- Support 1 x COM ports (1x RS-232/422/485)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Supporting Intel ® 14 th /13 th /12 th -Gen Core ™ i9/i7/i5/i3/Pentium/Celeron CPU (LGA1700 socket, Max 65W TDP) |
|---|---|
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Memory | 4 x U-DIMMs, max. 128GB, DDR5 |
| Storage | 7 x SATA 6.0 Gb/s ports, Supports RAID 0/1/5/10 |
| Watchdog Timer | Yes |
| TPM | 1 x SPI TPM header |
| Expansion | 1x M.2 E key, type 2230 (CNVi mode) for WiFI/BT devices (Antenna Kit supported)1x M.2 M key, type 2242/2260/2280 (PCIex4/SATA mode) supporting NVMe1x PCIe 5.0 x16 slot (x16 mode / x8 mode)1x PCIe 4.0 x4 slot (x4 mode, open slot)1x PCIe 5.0 x16 slot (x8 mode)1x PCIe 3.0 x4 slot (x4 mode, open slot)1x PCIe 4.0 x4 slot (x4 mode, open slot)2x PCI slots |
| Internal I/O | 5x COM header support 5 COM ports (1 x RS-232/422/485,4 x RS232)2x USB 3.2 Gen1 header supports additional4x USB 3.2 Gen1 ports1x USB 2.0 header support2x USB 2.0 ports1x 8 bit GPIO header (Connector Kit supported) |
| Serial Port | 1 x COM ports (1 x RS-232/422/485) |
| Display | 2x DP, support DP++1.4, up to3840 x 2160 @ 60Hz1x HDMI ® , support 2.1, up to4096 x 2160 @ 60Hz 1 VGA |
| USB | 6 x USB 3.2 Gen 2 (5 x Type A +1 x Type C)2 x USB 2.0 (Type A) |
| Audio | 3 (Line in, Line out, Mic In) |
| Power Input | ATX 600w 80 plus gold |
| Operation Temperature | 0 °C ~ 40 °C |
| Storage Temperature | -20 °C ~ 60 °C |
| Relative Humidity | 40 °C, 85%RH non-condensing |
| Operation Vibration | 0.75 Grms/5-500Hz, IEC 60068-2-6 |
| Operation Shock | 10G, 11 msec, IEC 60068-2-27 |
| Dimension | 430 (W) x 450 (D) x 177 (H) mm |
| Weight | 18 Kg |
| Mounting | Rackmount |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3382 | PSYS-508-Q670 | 4U Rackmount Barebone System with Intel ® Core™-i 12th/13th/14th MB & 600w PSU | add to list – PSYS-508-Q670 |
