PICMG 1.3 Half-size SBCs
ROBO-6911VG2AR
Intel® Xeon® E3/Core™ i3/i5/i7/ Pentium®/Celeron® processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, DP, DVI-I, Dual Gigabit Ethernet, mSATA, Audio, USB
- Portwell
- EOL (End of Life)

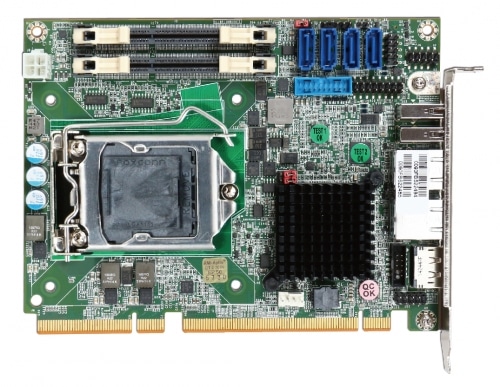

ROBO-6911VG2AR-Q170
Intel® Core™ i3/i5/i7/Pentium®/Celeron® processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, DP, DVI-I, Dual Gigabit Ethernet, mSATA, Audio, USB
- Support Intel ® 7 th and 6 th Gen Skylake-S Kaby Lake-S processor in LGA1151
- Delivers up tp 32GB maximum DDR4 2133 MT/s non-ECC SO-DIMM on two sockets
- Supports mutiple display by DP on bracket and on-board DVI-I(DVI-D+VGA)
- High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- On-board four SATAIII ports, support RAID 0, 1, 5, 10
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | PICMG1.3 |
|---|---|
| CPU | Intel ® Core™ i3/i5/i7/ Pentium ® /Celeron ® |
| Chipset | Intel ® Q170 |
| BIOS | AMI UEFI |
| Memory | 2 x DDR4 non-ECC DIMM up to 32GB |
| Expansion | 4x PCI slots1x PCIe x16 slot or2x PCIe x8 slot or1x PCIe x8 +2x PCIe x4 slots1x PCIe x4 slot |
| Display | VGA/DVI-D/HDMI ® |
| Audio | Realtek ALC886 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-2322x RS-232/422/485 |
| USB | 10x USB 3.02x USB 2.0 |
| Storage Devices | 6x SATA III |
| GPIO | 8 bit |
| Others | PS/2 KB & MS |
| Dimension | 338.5×126.39mm |
| Standard | B6902932 SATA III cable B8981980 PICMG SBC Handling and Installation Notice B8983650 Installation CD |
| Optional | B6902230 USB port cable with bracket B6903090 USB 3.0 cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3D39 | ROBO-6911VG2AR-Q170 | PICMG 1.3 half size (PCI-E) .LGA1151. Intel ® i5/i7 processors.SHB.w/DP/DVI-I/Dual GbE/Audio/mSATA | add to list – ROBO-6911VG2AR-Q170 |
| AB1-3G65 | ROBO-6911VG2AR-Q170-KBL | PICMG 1.3 half size (PCI-E) .LGA1151. Intel ® i5/i7 processors.SHB.w/DP/DVI-I/Dual GbE/Audio/mSATA | add to list – ROBO-6911VG2AR-Q170-KBL |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| ROBO-6911VG2AR-Q170 | Datasheet | 1.57 MB | download – ROBO-6911VG2AR-Q170 | Datasheet |
