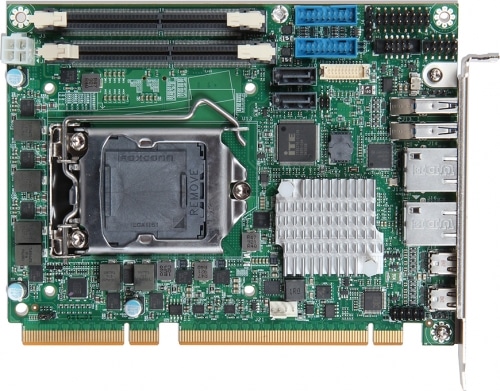

ROBO-6912VG2AR-Q370
Intel® Core™ i3/i5/i7/Pentium® Celeron® processor based on PICMG 1.3 halfsize SHB with DDR4 SO-DIMM, mini DP, DVI-D,Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB
- Support Intel ® 8 th Gen Coffee Lake-S processor in LGA1151
- Delivers up tp 32GB maximum DDR4 2400 MT/s non-ECC SO-DIMM on two sockets
- High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- On-board two SATAIII ports, support RAID 0, 1
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | PICMG1.3 |
|---|---|
| CPU | Intel ® Core™ i3/i5/i7/i9/ Pentium ® / Celeron ® |
| Chipset | Intel ® Q370 |
| BIOS | AMI UEFI |
| Memory | 2 x DDR4 non- ECC SO-DIMM up to 32GB |
| Expansion | 1x PCIe x16 slot or2x PCIe x8 slots or1x PCIe x8 slot2x PCIe x4 slots1x PCIe x4 slot |
| Display | 2x mini DP / DVI-D |
| Audio | Realtek ALC888S HDA codec |
| LAN | 2x GbE |
| Serial Port | 1x RS-232/422/485 |
| USB | 4x USB3.2 Gen12x USB3.2 Gen2 |
| Storage Devices | 2x SATA III1x mSATA |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 167.64 x 126.39mm |
| Standard | B8981980 PICMG SBC Handling and Installation Notice B6902932 SATA III cable B8983650 Installation CD |
| Optional | B6902230 USB port cable with bracket B6903090 USB 3.0 cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3J42Z | ROBO-6912VG2AR-Q370 | PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel ® Core™ i5/i7 processors.SHB. w/ DVI-D/miniDP*2/Dual GbE/Audio/USB 3.1/ COM | add to list – ROBO-6912VG2AR-Q370 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ROBO-6912VG2AR-Q370 | Datasheet | 1.84 MB | download – ROBO-6912VG2AR-Q370 | Datasheet |
| ROBO-6912VG2AR-Q370 | User Manual | 3.73 MB | download – ROBO-6912VG2AR-Q370 | User Manual |
