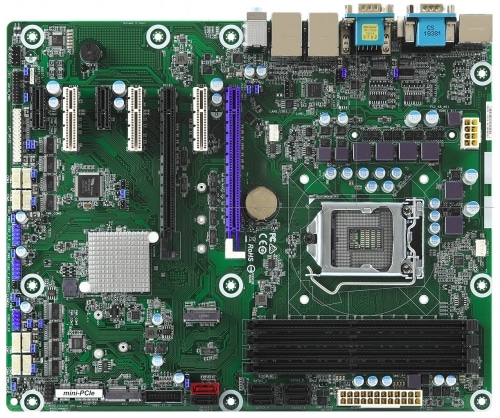

RUBY-D811-Q370
Leading Desktop Intel® 8th/9th Gen Core™ Processors ATX with DDR4 Long-DIMM up to 128G, VGA ,Dual DP ports,HDMI® ,Two GbE LAN ports, Ten COM Ports
- Intel ® 8 th /9 th Gen Core™ Processors support
- Supports four Long- DIMMs suppor t DDR4 Non-ECC SDRAM up to 128GB
- Supports dual Ethernet, ten COM Ports, six USB3.0 Ports, six SATA III Ports and Audio
- Supports Two PCIe x16 (1x PCIe x8 signal), three PCIe x4 slot, two PCIex1 slot ,one M.2 Type E socket for Wireless,one M.2 Type M socket for SSD, and one mini- PCIe slot
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | ATX |
|---|---|
| CPU | Intel ® Core™ i3/i5/i7/i9/Pentium ® / Celeron ® |
| Chipset | Intel ® Q370 |
| BIOS | AMI UEFI |
| Memory | 4 x DDR4 DIMM up to 128GB |
| Expansion | 2x PCIe x16 (1 x PCIe x8 signal)3x PCIe x4 slots2x PCIe x1 slots |
| Display | VGA/Dual DP/HDMI ® |
| Audio | Realtek ALC887 HDA codec |
| LAN | - Intel ® I219LM (1G) & I210AT (1G) Ethernet controller -2x RJ45 connectors on rear I/O |
| Serial Port | 8x RS-232 ports2x RS-232/422/485 |
| USB | 6x USB3.2 Gen16x USB2.0 |
| Storage Devices | 6x SATA III (SATAI shared with M.2 Key M) |
| GPIO | 8 bit |
| Others | TPM 2.0 onboard |
| Dimension | 304.8 x 243.8mm |
- One RUBY-D811-Q370 Main board
- One I/O shield
- One Installation CD
- One SATA cable
- One CPU coolor bracket
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3J36 | RUBY-D811-Q370 | ATX ESB.Q370 w/o ECC LGA1151.w/DDR4 /VGA/Dual DP/Dual GbE/COM/Audio/USB | add to list – RUBY-D811-Q370 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RUBY-D811-Q370 | Datasheet | 1.81 MB | download – RUBY-D811-Q370 | Datasheet |
