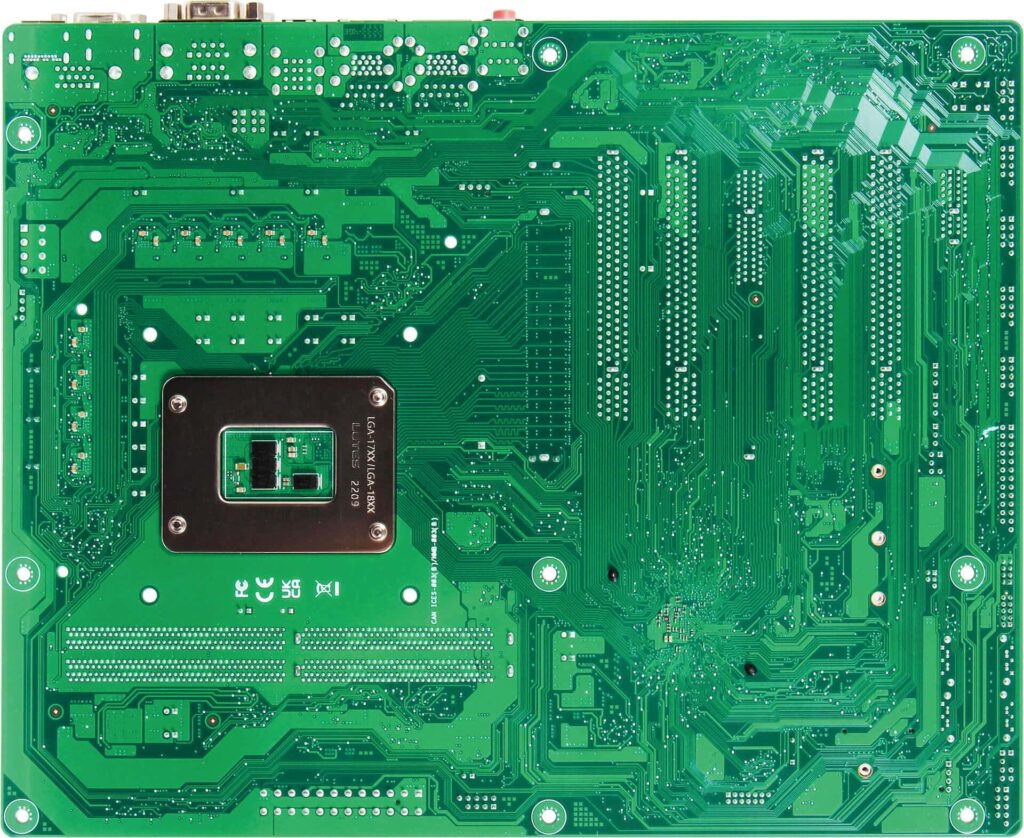

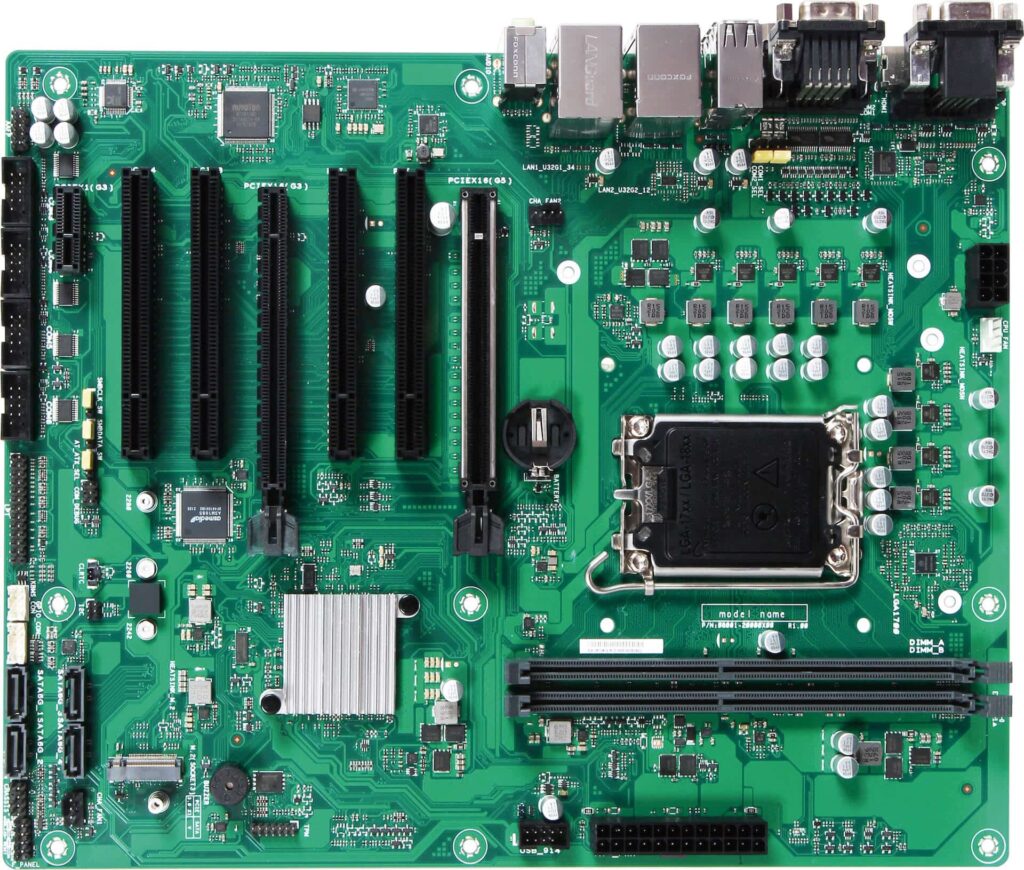

RUBY-D813-H610E
Support Desktop Intel® 12th/13th/14th Gen Core™ Processors ATX with DDR4 Long-DIMM up to 64Gb, VGA, DP port, HDMI®, Dual GbE LAN, Six COM Ports
- Intel ® 12 th /13 th /14 th Gen Core™ Processors support
- Two Long-DIMM support DDR4 Non-ECC DRAM up to 64GB
- Support dual Ethernet, 6x COM Ports, 4x USB 3.2 Ports , 4x SATA III Ports and Audio
- TwoPCIe x16(1x PCIe x4 signal), one PCIex1, four PCI slots, one M.2 (Type M) type 2242/2260/2280
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® 12 th /13 th /14 th Gen Core™ Processors CPU in LGA1700 package |
|---|---|
| Chipest | Intel ® H610E |
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Memory | Support up to 64GB DDR4 Non-ECC on two Long-DIMM socket,up to 3200MHz |
| Storage Devices | 4x SATAIII ports |
| Watchdog Timer | Programmable by embedded controller |
| Hardware Monitoring | System monitor(Voltage,Fan Speed and Temperature) |
| Expansion Interface | -2x PCIe x16 slots(1x PCIe x4 signal) ~1x PCIe x1 slots ,4x PCI slots -1x M.2 (Key M) type 2242/2260/2280(SATA/PCIe x1 mode) I/O Interface |
| Super I/O | NCT6126D |
| Audio | Audio Jack on rear I/O with Line-out /Mic-in with Realtek ALC897 Audio controller |
| Ethernet | - Intel ® I219V and Intel ® I210AT Ethernet controller -2x RJ45 connectors on rear I/O |
| Serial port | -2x RS232/422/485 port on REAR I/O -4x RS232 port on pin header |
| USB | -2x USB 3.2 Gen2,2x USB 3.2 Gen1 and4x USB 2.0 ports on rear I/O -2x USB2.0 on pin header |
| GPIO | 8-bit configurable controller by embedded controller Display |
| Graphic Controller | - Intel ® graphic UHD 630 supports DirectX 12, OpenGL 4.5 |

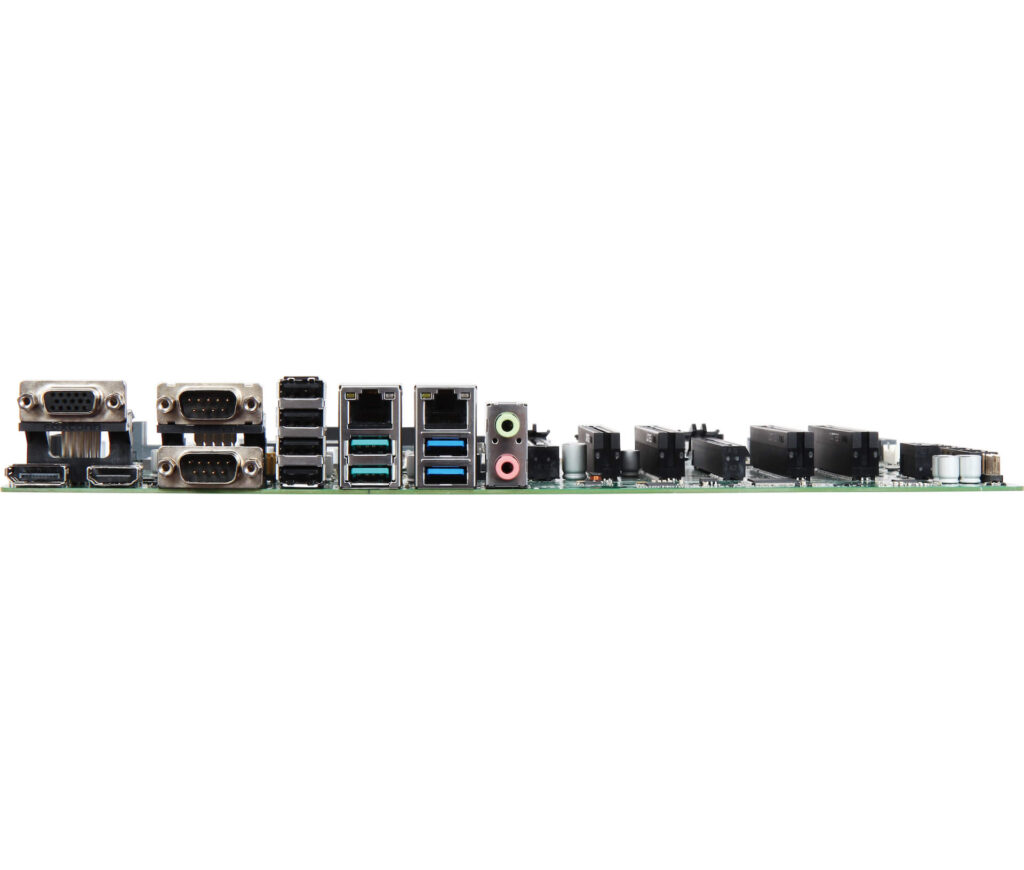

| Display Interface | - DP:DP port on rear I/O, resolution up to 4096×2160 - VGA: One VGA port on rear I/O resolution up to 1920×1200 - HDMI ® :One HDMI ® connector on rear I/O, resolution up to 4096×2160 Mechanical & Environment |
| Environment | - Operation temperature:0 ~ 60 ̊C - Storage temperature: -20 ~ 80 ̊C - Relative humidity:5 ~ 95%,non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
| Dimension | 304.8mm(L) x 243.8mm(W) x 1.6mm(H) |
| Power Supply | ATX |
- One R UBY-D813 motherboard
- One I/O Shield
- One SATA Cable
- One CPU coolor bracket
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3P61 | RUBY-D813-H610E | ATX IMB.LGA1700 H610E. w/ DDR4/VGA/ DP/HDMI ® Dual GbE/COM/Audio/USB | add to list – RUBY-D813-H610E |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RUBY-D813-H610E | Datasheet | 1.54 MB | download – RUBY-D813-H610E | Datasheet |
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| RUBY-D813-H610E | BIOS 3.00.00 | 32.00 MB | download – RUBY-D813-H610E | BIOS 3.00.00 |
| RUBY-D813-H610E | BIOS 25200 | 6.76 MB | download – RUBY-D813-H610E | BIOS 25200 |
