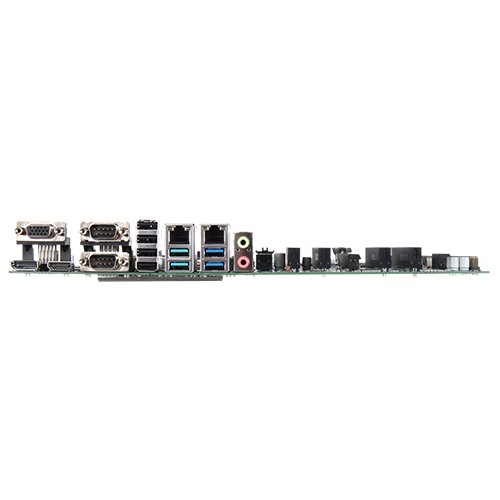

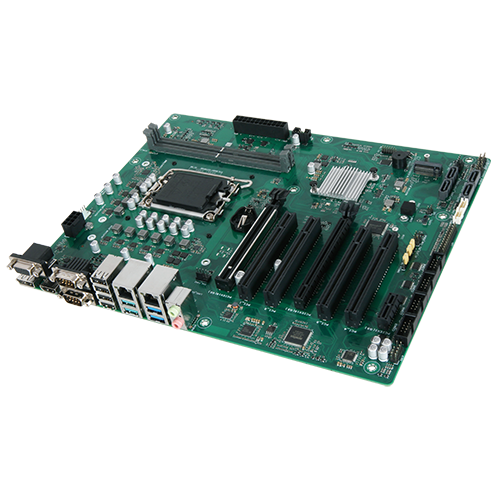

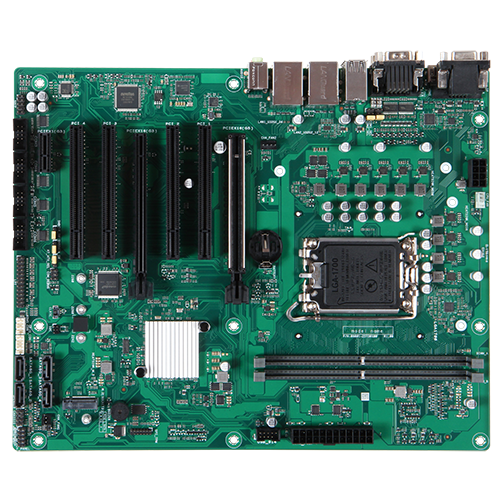

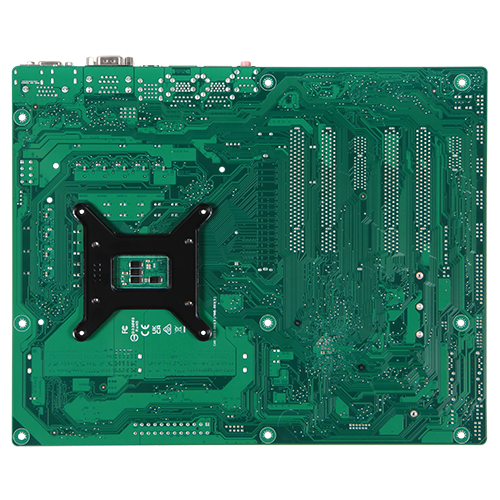

RUBY-D813-H610E-D5
Intel® 12th/13th/14th Gen Core™; 2x DDR5 U-DIMM up to 96GB; 2x GbE; 6x COM, 4x USB 3.2, 4x SATA III; 2x PCIe x16, 1x PCIe x1, 4x PCI; 1x M.2 Type M
- Intel ® 12th/13th/14th Gen Core™ Processors CPU in LGA1700 package
- Two U-DIMM support DDR5 Non-ECC DRAM up to 96GB
- Support dual Ethernet, 6x COM Ports, 4x USB 3.2 Ports, 4x SATA III Ports and Audio
- Two PCIe x16 (1x PCIe x4 signal), one PCIe x1 slot, four PCI slots
- One M.2 (Type M) type 2242/2260/2280
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | ATX |
|---|---|
| Processor | 12/13/14th Generation Intel ® Core™ i3/i5/i7/i9 Processors, LGA 1700 socket |
| Chipset | Intel ® H610E |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 96GB DDR5 5600 MT/s on 2 non-ECC UDIMM |
| Storage | 4 x SATA Ports |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® UHD Graphics |
| Audio | 1 x Audio Jack Line-out w/ Realtek ALC8971 x Audio Jack Mic-in w/ Realtek ALC897 |
| Ethernet | 1 x Intel ® I219V with GbE LAN 10/100/1000 Mbps1 x Intel ® I210AT with GbE LAN 10/100/1000 Mbps |
| Serial Port | 2 x COM Ports Support RS-232/422/485 |
| USB | 2 x USB 3.2 Gen2 Type A2 x USB 3.2 Gen1 Type A4 x USB 2.0 Type A |
| Display | 1 x HDMI ® 2.01 x DP 1.21 x VGA |
| PCIe | 1 x PCIe Gen5 x161 x PCIe Gen3 x16 ( x 4 signal )1 x PCIe Gen3 x1 |
| PCI | 4 x PCI |
| Serial Port | 4 x Pin Header support RS-232 |
| USB | 1 x USB 2.0 Pin Header |
| M.2 | 1 x M.2 M Key 2242 2260 2280 support PCIe x1/ SATA |
| Security | TPM SPI header |
| GPIO | 1 x 8-bit Digital I/Os |
| Dimension | 305 x 244 mm (12.00" x 9.61") |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 10% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2021 LTSC, Ubuntu 24.04, RedHat Enterprise, Fedora Workstation, OpenSUSE |
| Portwell Special Feature | PET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3U27 | RUBY-D813-H610E-D5 | ATX.IMB.LGA1700.CPU. H610E.w/DDR5/VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – RUBY-D813-H610E-D5 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RUBY-D813-H610E-D5 | Datasheet | 751.92 KB | download – RUBY-D813-H610E-D5 | Datasheet |
| RUBY-D813-H610E-D5 | PORTWELL_1.01.00 | 7.47 MB | download – RUBY-D813-H610E-D5 | PORTWELL_1.01.00 |
| RUBY-D813-H610E-D5 | User Manual | 7.97 MB | download – RUBY-D813-H610E-D5 | User Manual |
