RUBY-D814-Q870
Support Desktop Intel® Core™ Ultra Processors (Series 2),ATX with DDR5 Long-DIMM up to 192GB, VGA, DP, HDMI®,Triple GbE LAN, Six Com Ports
- Intel ® Core Ultra™ Series 2 Processors
- Four Long-DIMM support DDR5 Non-ECC DRAM up to 192GB
- Support triple Ethernet, 6x COM Ports, 11x USB 3.2 Ports, 4x SATA III Ports and Audio
- Two PCIe x16 (1 x16 signal / 2 x8 signal), four PCIe x4 (2x PCIe x4 signal, 2x PCIe x2 signal), one PCI slot, two M.2 (Type M), 1x type 2242/2260/2280, and 1x type 2280 and one M.2 (Type E) type 2230

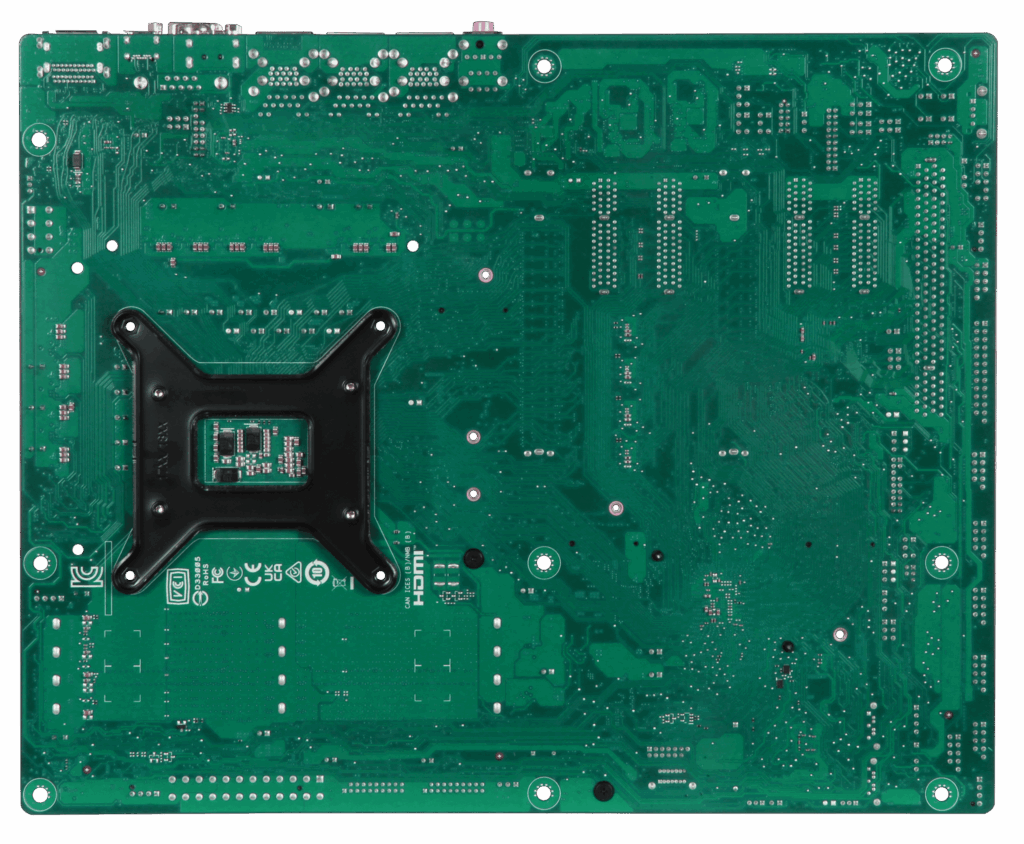

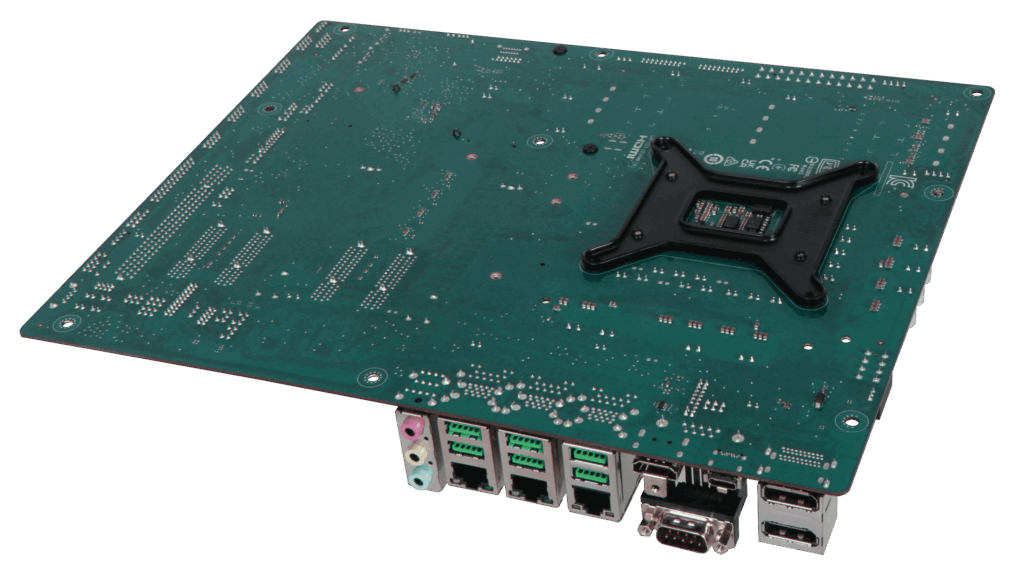

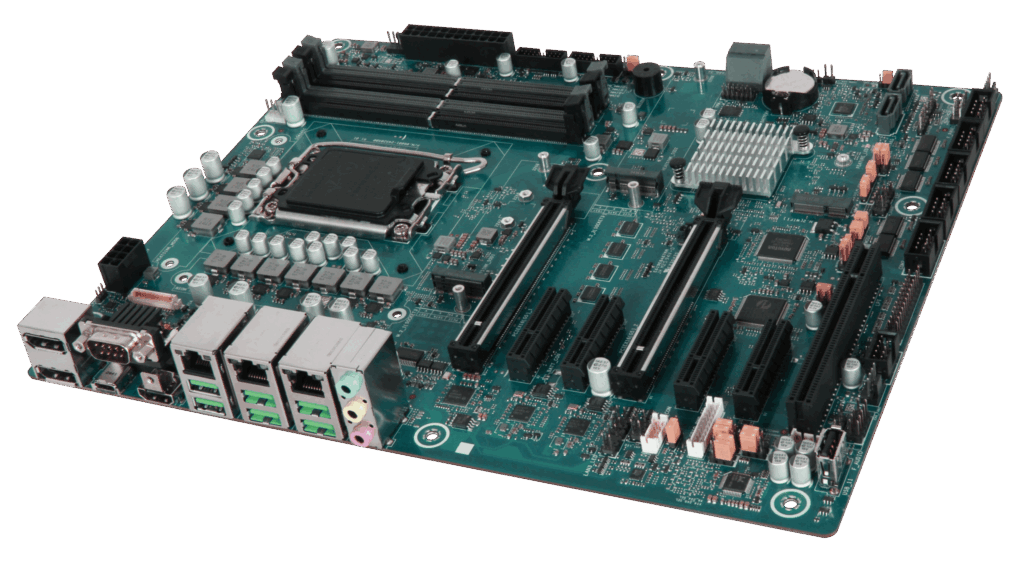

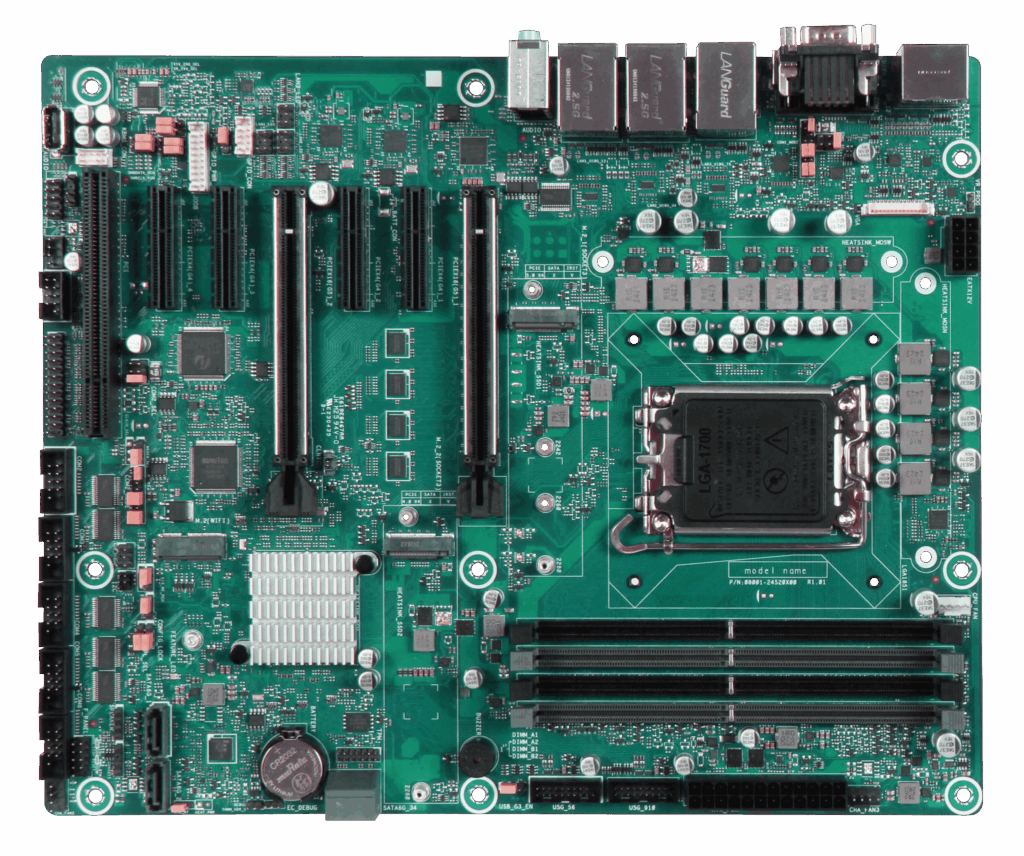

Platform Overview
About this series
RUBY-D814 is based on Intel® Q870 chipset and Desktop processors including
Intel® Core™ Ultra (Series 2) i5/i7/i9 Sku.
This board supports DDR5, PCIe, and SATAIII.
Those features help you to build high performance and stable system.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.

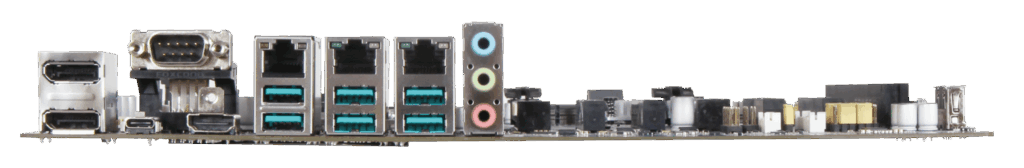

| Processor | Intel ® Core™ Ultra Processors (Series 2) in LGA1851 package |
|---|---|
| Chipset | Intel ® Q870 |
| BIOS | AMI uEFI BIOS |
| Memory | Supports up to 192GB DDR5 up to 5600MHz Non-ECC on four Long-DIMM sockets |
| Storage Devices | 4x SATAIII ports, supports RAID 0, 1, 5, 10 |
| Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs |
| Hardware Monitoring | System monitor (Voltage/Fan Speed and Temperature) |
| Expansion Interface | 2x PCIe5.0 x16 slot (x16 signal / x8 signal)2x PCIe4.0 x4 slot (x4 signal, open end slot)2x PCIe1.0 x4 slot (x2 signal, open end slot)1x PCI slot1x M.2 (Type M), type 2242/2280/22110 (PCIe5.0 x4), supports NVMe1x M.2 (Type M), type 2280 (PCIe4.0 x4), supports NVMe1x M.2 (Type E), type 2230, with support for Intel ® CNVi™ Rear I/O |
| Audio | Realtek ALC887 audio controller Audio Jack on rear I/O with Line-In / Line-Out / Mic-In |
| Ethernet | Intel ® I210IT, I226V, I226LM (I226LM support Intel ® vPro ® ) Ethernet controller3x RJ45 connectors on rear I/O |
| Serial Port | 1x RS-485 connectors on rear I/O1x RS232/422/485,4x RS232 on pin header |
| USB | 6x USB3.2 (Gen2) (Type A) on rear I/O1x USB3.2 (Gen2x2) (Type-C) on rear I/O (co-lay with DP1.4) |
| GPIO | 8-bit configurable controlled by embedded controller Display |
| Graphic Controller | Intel ® Xe LPG Graphic |
| Display Interface | DP: Two DP 1.4 ports on rear I/O, resolution up to 3840×2160 at 60Hz One DP 1.4 on rear I/O, co-lay with USB3.2 Gen2x2 Type-C HDMI ® : One HDMI ® 2.1 connector on rear I/O, resolution up to 4096×2160 at 60Hz VGA: One VGA port on rear I/O, resolution up to 1920×1200 (addition cable required) Mechanical/Environment |
| Environment | Operation Temperature: 0 °C to 60 °C Storage Temperature: -40 °C to 85 °C Relative Humidity: 10% to 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
| Dimension | 304.8mm(L) x 243.8mm(W) x 1.6mm(H) |
| Power Supply | ATX power input |
- One RUBY-D814-Q870 main board
- One I/O shield
- One SATA cable
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3U19 | RUBY-D814-Q870 | ATX, IMB, LGA1851, CPU Q870, w/ DDR5/DP/HDMI ® /Triple GbE/COM/Audio/USB | add to list – RUBY-D814-Q870 |
