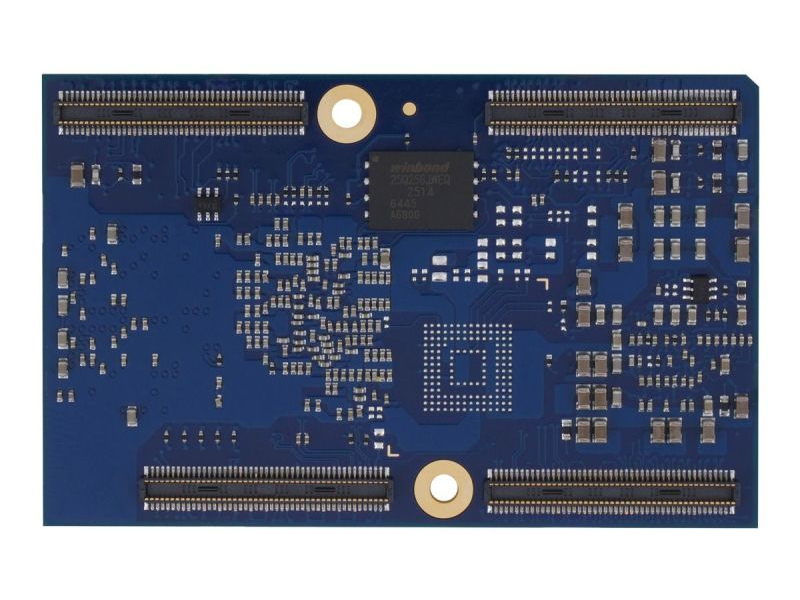

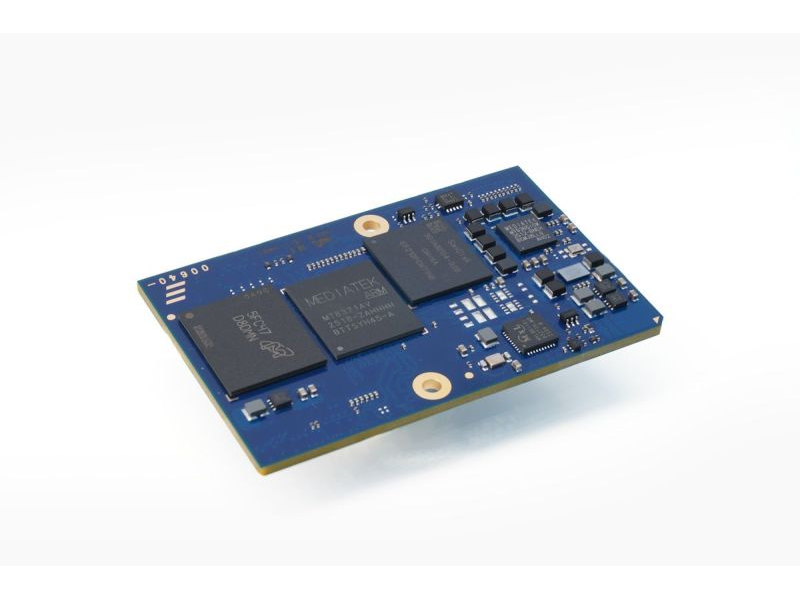

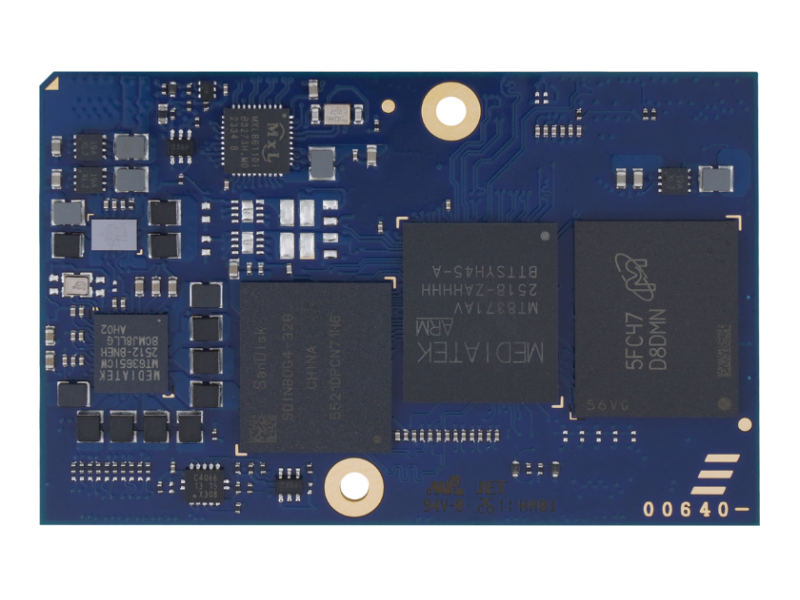

TIA Genio 520/720
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Genio 520/720 |
|---|---|
| CPU #2 | Manufacturer: MediaTek |
| CPU #3 | NPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | 2x Arm Cortex-A78, up to 2.6 GHz6x Arm Cortex-A55, up to 2.0 GHz |
| Memory | LPDDR5@6400MTs |
| Memory #2 | up to 16GB |
| Graphics & AI | -MediaTek 8th Generation 10 TOPS NPU -Arm Mali-G57 MC2 up to 1.1 GHz OpenGL ® ES 1.1, 2.0, 3.2 Vulkan ® 1.0, 1.1 OpenCL up to 2.2 |
| Video Processing Unit Capabilities | 3840 x 2160@60 fps HEVC/H.264/VP9 decoder3840 x 2160@30 fps HEVC/H.264 encoder |
| Mass Storage | eMMC or UFS drive soldered on-board |
| Networking | 1x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 2x USB2 |
| USB #3 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen2/1-lane |
| Audio | I2S or analog (HP stereo + MIC) Interface |
| Peripheral Interfaces | UART SPI I2C GPIOs JTAG SDIO MIPI CSI2x 4-lane RGMII option |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 35 x 55 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| TIA_Genio_520_720_Flyer.pdf | 331.19 KB | download – TIA_Genio_520_720_Flyer.pdf |
