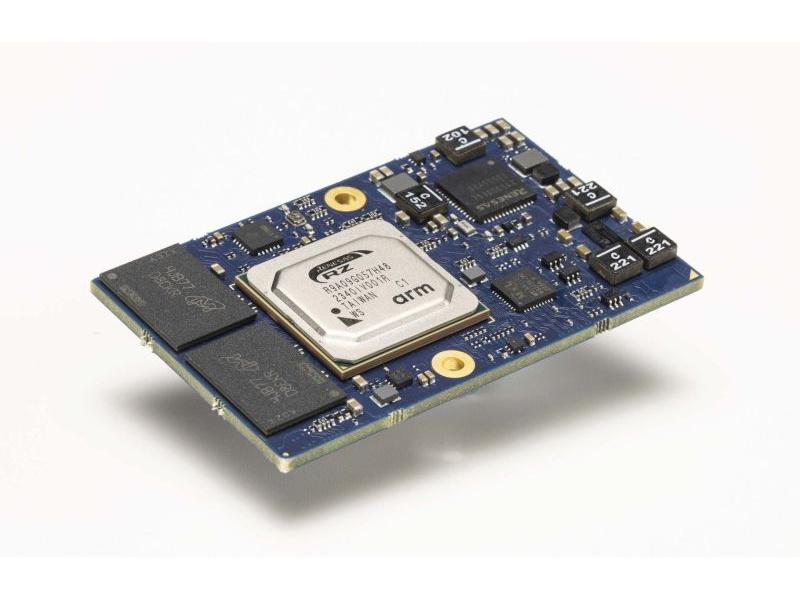

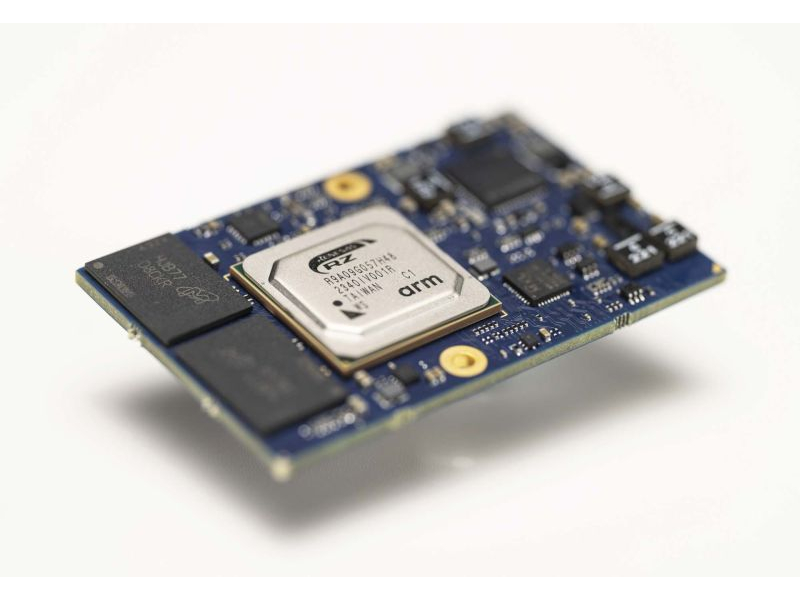

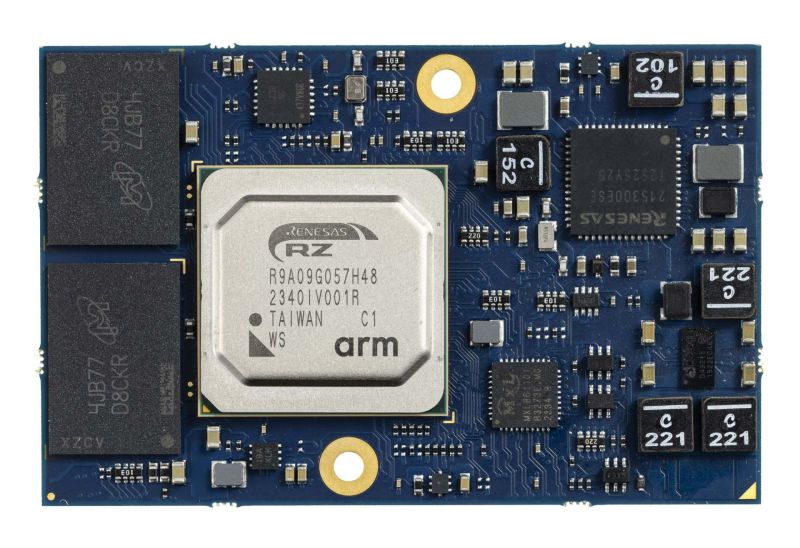

TIA RZ/V2H
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | RZ/V2H |
|---|---|
| CPU #2 | Manufacturer: Renesas |
| CPU #3 | NPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | 4x Arm Cortex-A55, up to 1.8 GHz2x Arm Cortex-R8, up to 800 MHz1x Arm Cortex-M33, up to 200 MHz |
| Memory | LPDDR4X@3200MTs |
| Memory #2 | 8GB up to 16GB |
| Graphics & AI | AI Accelerator DRP-AI3 - 8TOPS/dense - 80TOPS/sparse Mali™-G31 (GE3D) Mali™-C55 (ISP) OpenGL ES™ 1.1, 2.0, and 3.2 OpenCL 2.0 |
| Video Processing Unit Capabilities | H.265/H.264 decode and encode1920 x 1080 @60 H.2643840 x 2160 @30 H.265 |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board |
| Networking | 1x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| USB #3 | 2x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe interface GEN3/4-lane |
| Audio | I2S Interface |
| Peripheral Interfaces | UART SPI I2C CAN Bus GPIOs JTAG MIPI-CSI4x 4-lane RGMII Interface |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Operating Temperature #2 | (CPU TJ +125°) |
| Dimensions | 35 x 55 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| TIA_RZ_V2H_Flyer.pdf | 279.21 KB | download – TIA_RZ_V2H_Flyer.pdf |
