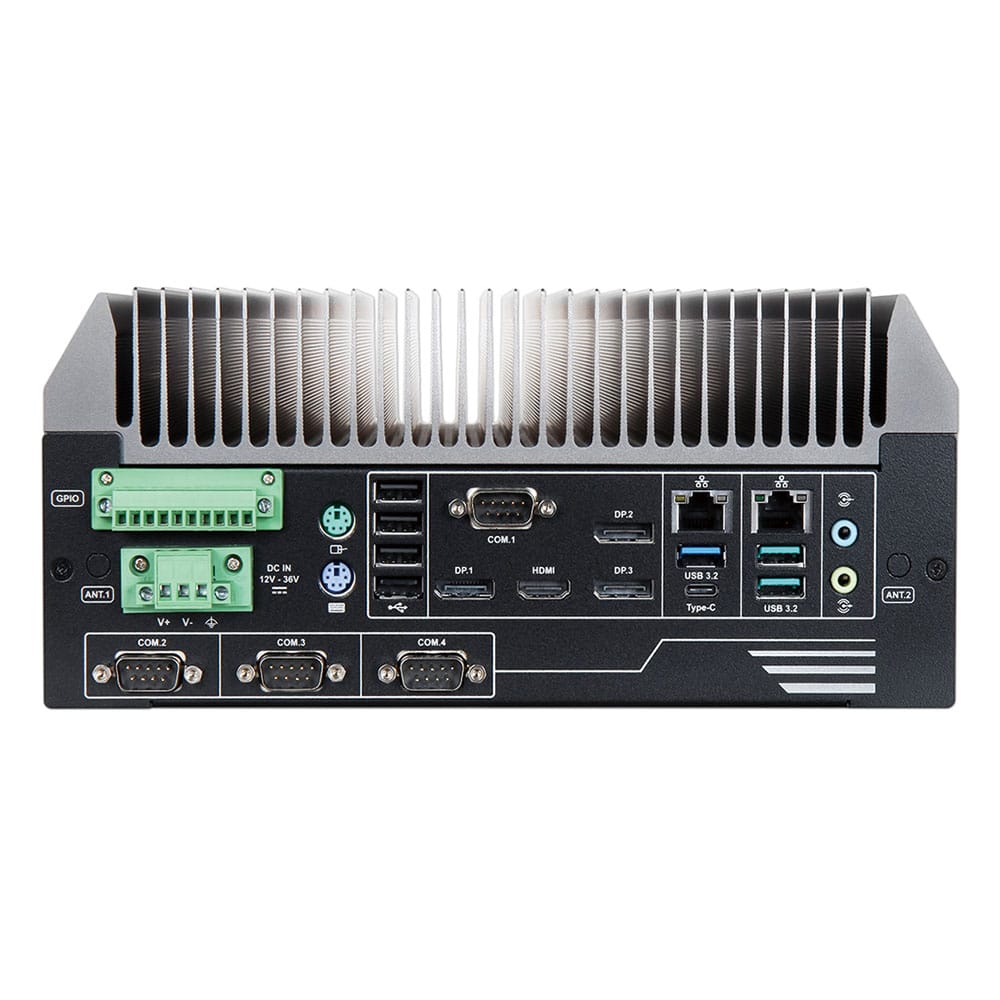

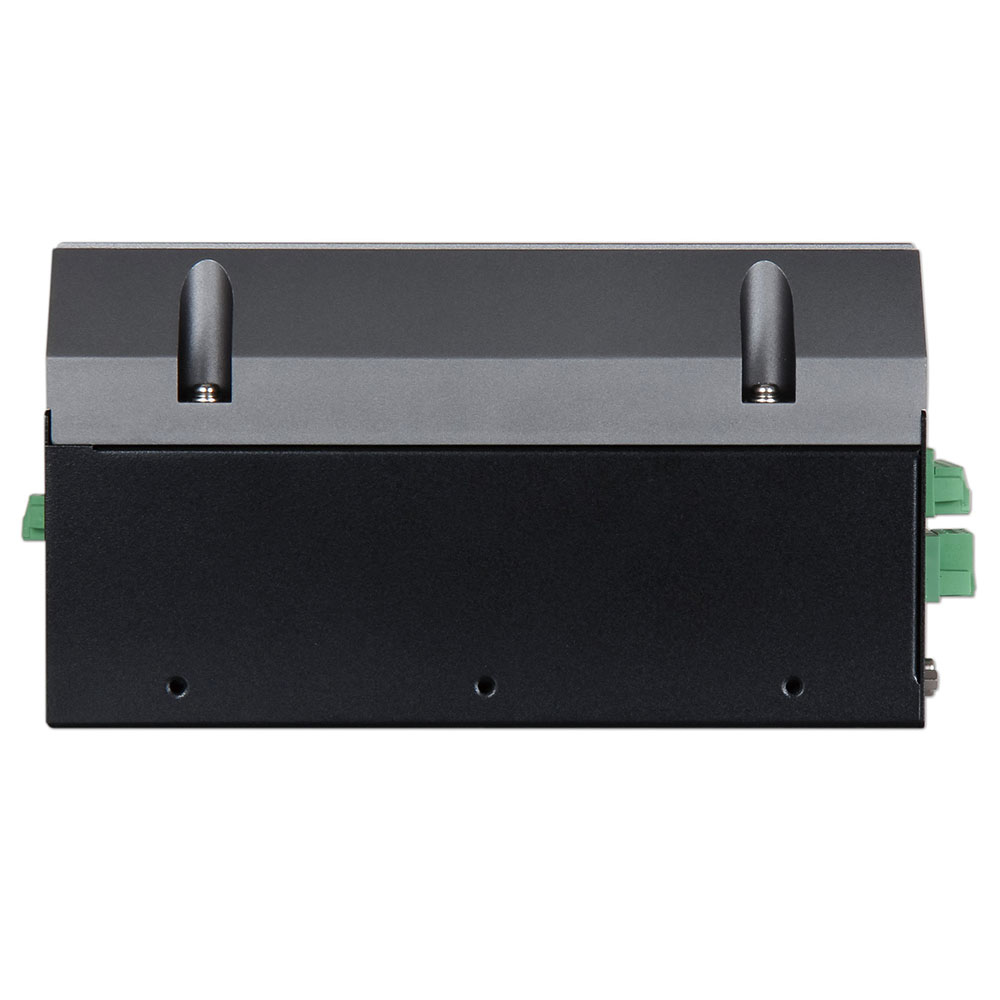

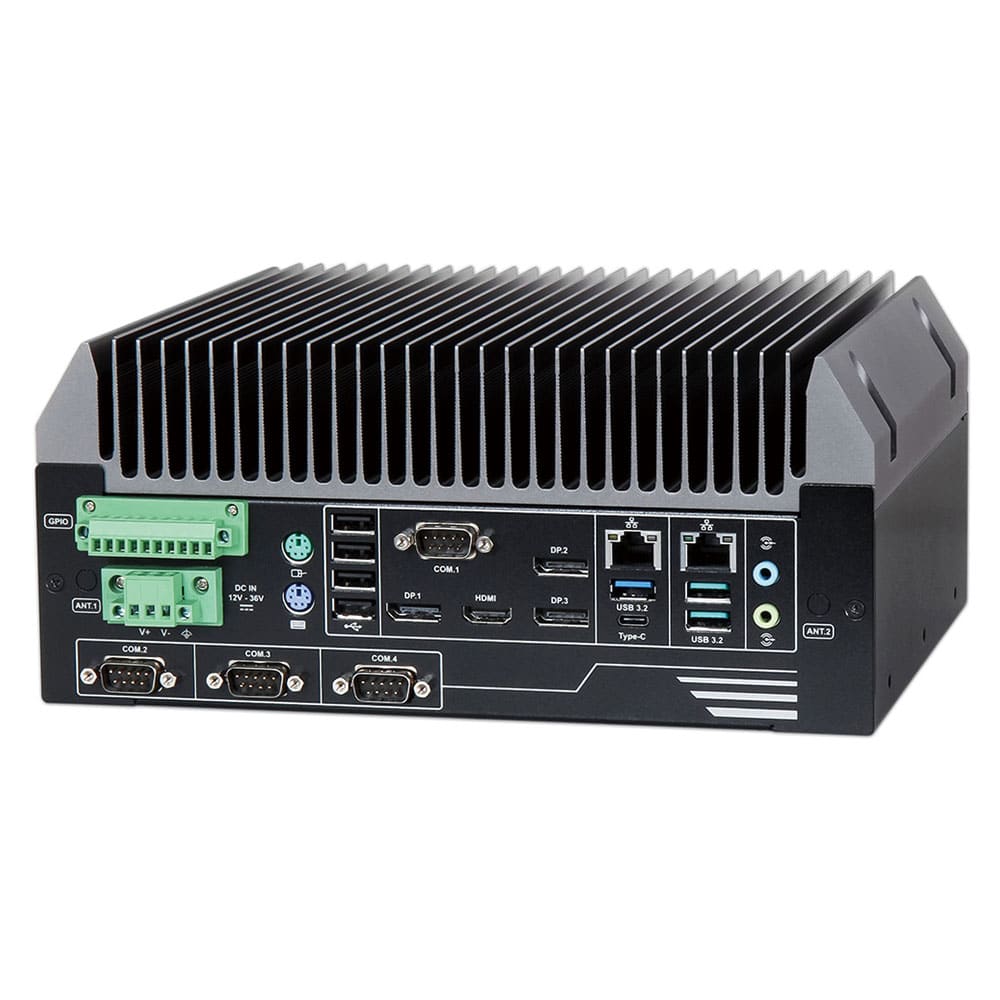

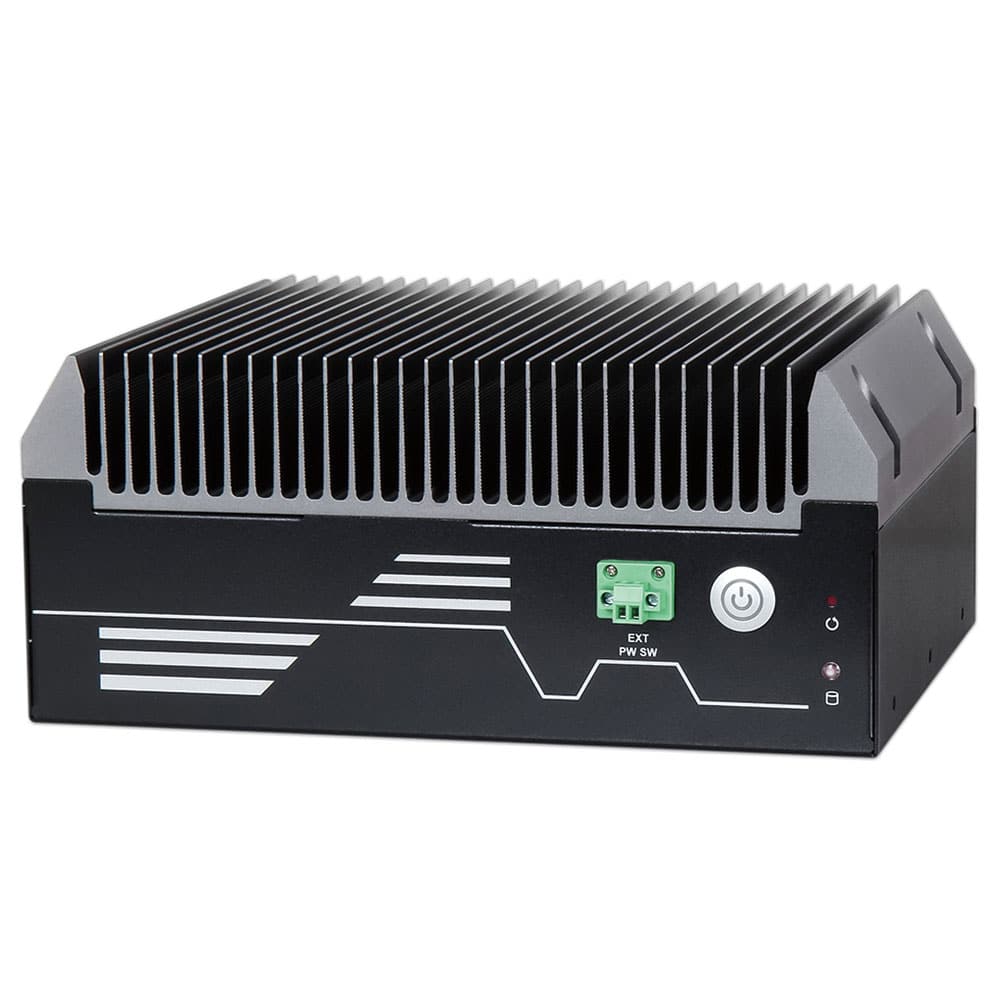

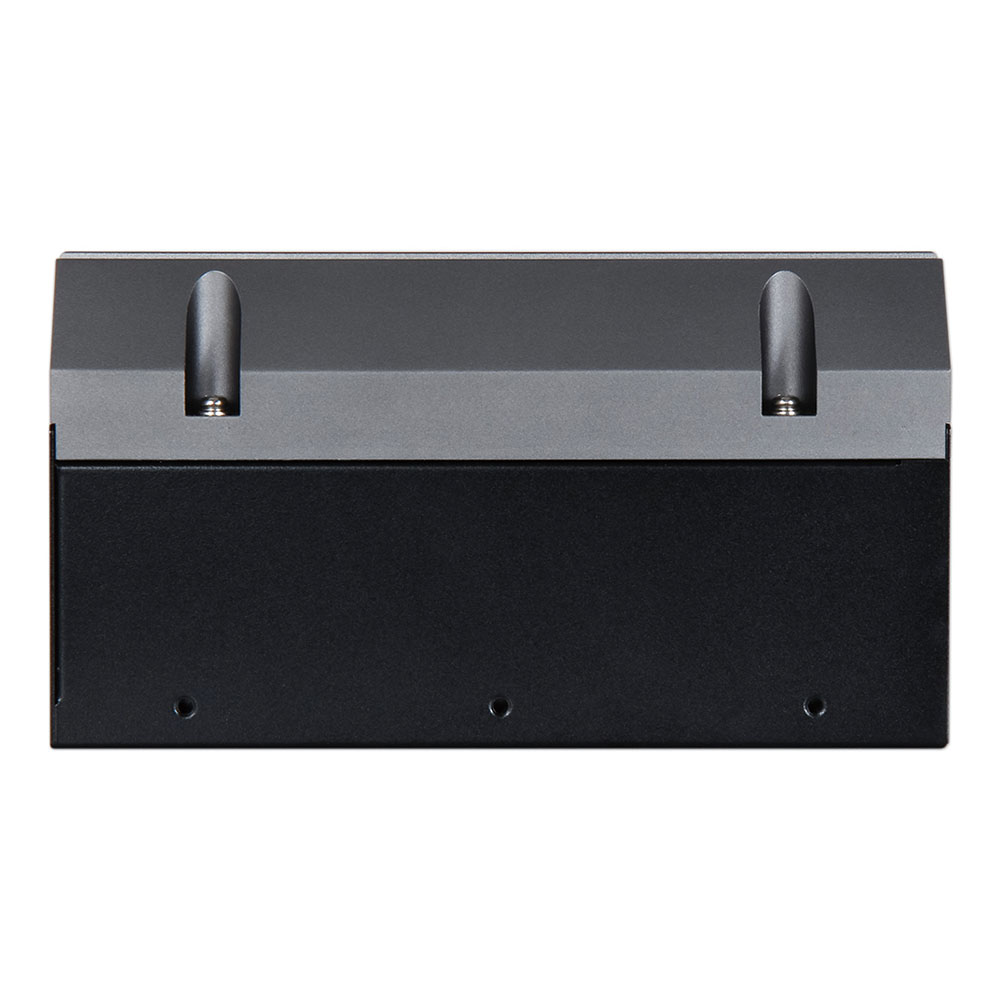

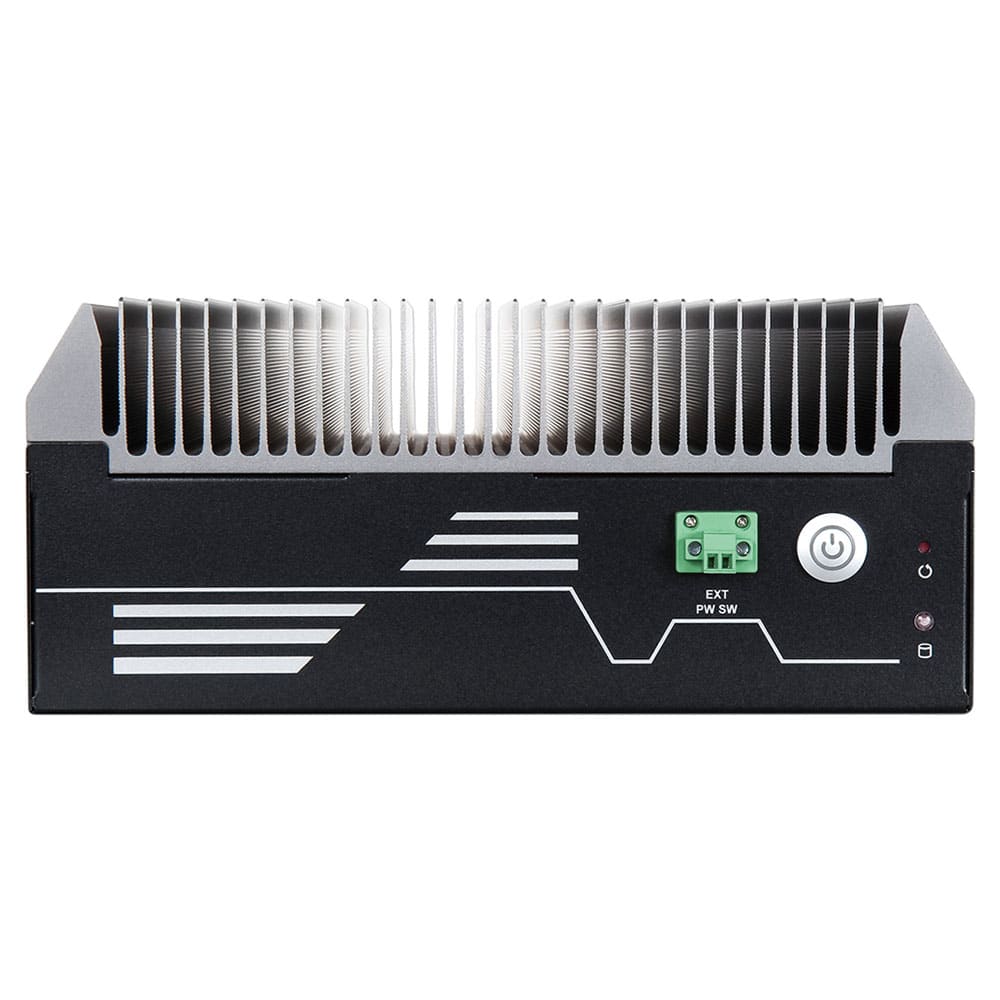

WEBS-45J1
Embedded Rugged Fan-less System with 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board
- Support 14 th /13 th /12 th Generation Intel ® Core™ i3/i5/i7/i9 processors
- Two SO-DIMM support DDR5 DRAM up to 96GB
- Support triple DP and one HDMI ® display
- Support One M.2 E Key, One M.2 M Key
- Support 4x COM ports (2x RS-232/422/485)
- 2x Antenna holes for WiFi module
- Optional pre-assembled with Hailo-8 M.2 M Key AI Accelerator Module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WADE-8213 |
|---|---|
| CPU | Supporting Intel ® 14 th /13 th /12 th Gen Core™ CPU (LGA1700 socket, 35W TDP) Intel ® Core™ i9-14900T Intel ® Core™ i7-14700T Intel ® Core™ i5-14500T Intel ® Core™ i3-14100T Intel ® Core™ i9-13900TE Intel ® Core™ i7-13700TE Intel ® Core™ i5-13500TE Intel ® Core™ i3-13100TE Intel ® Core™ i9-12900TE Intel ® Core™ i7-12700TE Intel ® Core™ i5-12500TE Intel ® Core™ i3-12100TE |
| BIOS | AMI uEFI BIOS |
| Memory | Supports two DDR5 dual channel up to 96GB SO-DIMM sockets Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs |
| Storage | 2x SATAIII ports |
| Watchdog Timer | Programmable watchdog timer |
| TPM | TPM 2.0 (Optional) |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion | 1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD |
| Serial Port | 4 x COM ports (2 x RS- 232/422/485) |
| Display | 3x DP, resolution up to 8K1x HDMI ® |
| USB | 3x USB 3.2 Gen 2 (2x Type A +1x Type C)1x USB 3.2 Gen14x USB 2.0 |
| Audio | Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller |
| Ethernet | Intel ® I210AT(1GbE) and Intel ® I225LM(2.5GbE) Ethernet controller2x RJ45 connectors |
| GPIO | 1x Programmable 8-bit Digital I/O |
| Other | 2x Antenna holes for WiFi module1x EXT Power Switch |
| Power Input | DC 12V ~ 36V with 3-pin Terminal Block Connector |
| Operation Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Operation Vibration | 1Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Dimension | 253 (W) x 201.2(D) x 111.8 (H) mm |
| Weight | 5.25Kg |
| Mounting | Wall mounting |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-45J1 | BIOS 3.00.00 | 12.00 MB | download – WEBS-45J1 | BIOS 3.00.00 |
| WEBS-45J1 | BIOS 2.55.00 | 11.54 MB | download – WEBS-45J1 | BIOS 2.55.00 |
