- Portwell, Wincomm
WTP-8J66-22
Elkhart Lake J6412 22″

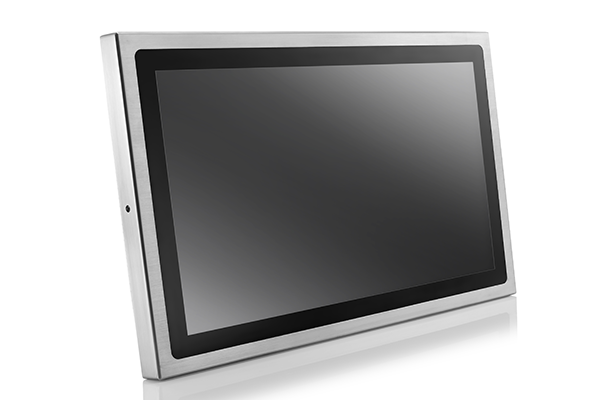

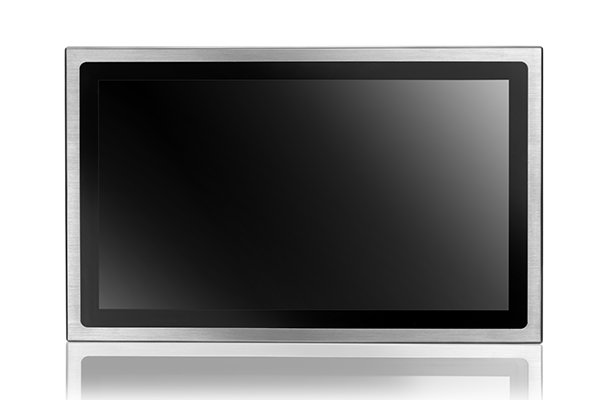

- 21.5″ Intel ® Elkhart Lake J6412 Fanless Stainless Panel PC
- Support Win10 / Win11
- IP66/67/69K Full Sealed Enclosure
- 100% Waterproof Guarantee
- Brightness Control by OS

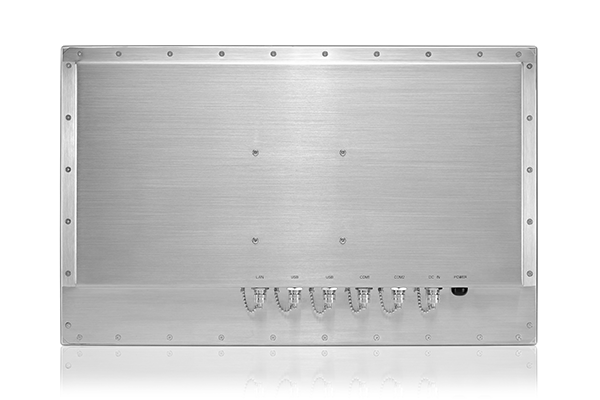

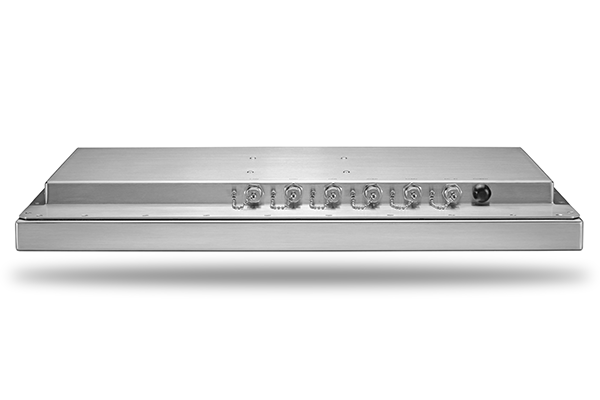

- Optional IP67 M12 Stainless Connectors
- Optional Cable Gland for External I.O.

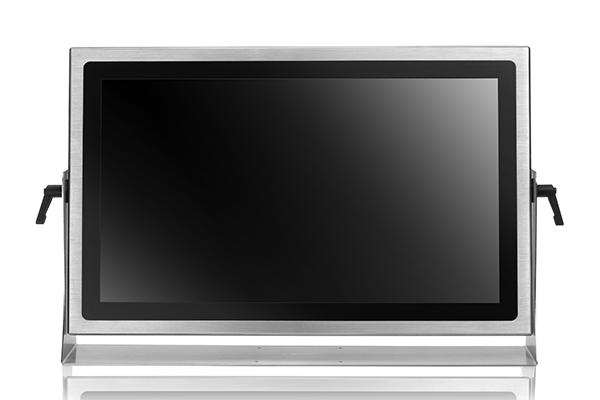

- Customization Floor Stand Kits
- CE, FCC, VCCI Class B Certified
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU / Chipset | Intel ® Elkhart Lake SoC Processors J6412, QC, 2.0 ~ 2.60 GHz, 10W |
|---|---|
| Graphic | Intel ® Gen 11 UHD Graphics |
| RAM | Dual channel support 3200MHz DDR4 SODIMM socketx2, up to 32GB |
| OS Support | Win 10 / Win 11 (Option) |
| Storage | 1 x 2.5” SATA HDD drive bay1 x M.2 (M Key 2242/2260/2280) SATA3 & PCIe for SSD |

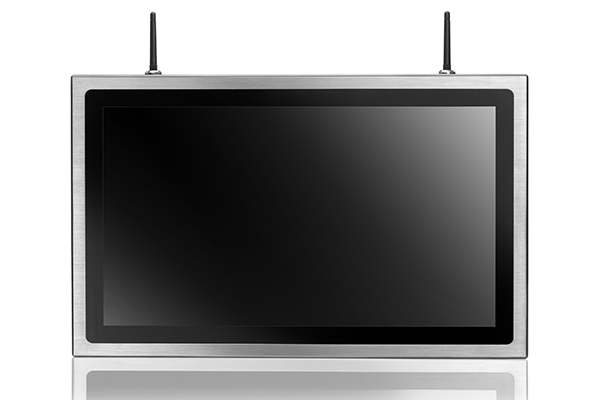

| Expansion | 1 x PCIex1 Gen31 x M.2 (E key 2230) w/PCIe x1 and shared USB2.0 for wireless1 x M.2 (B key,3042/3052) with PCIe x1/USB 3.2/USB2.0 SIM for 4G/5G1 x SIM socket connected to M.2 key B |
| Display Size | 21.5” 16:9 |
| Display | 1920 x 1080(FHD), 170(H) / 160(V), 250 nits, CR:1000 : 1 (Typ) |
| Touch Screen | Full flat resistive touch / Light Transmission: 80 ± 5% / Hardness: ≧3H / Lifetime: 35M hours Full flat p-cap touch / Light Transmission: ≧86% / Hardness: ≧7H / Lifetime: 100M times I.O. Ports |
| Configuration | STD. (M12 Connector) Cable Gland (Max. 5 external I/O by proper grommet) |
| USB | 1 x M12 8pin for USB 1/2 (USB2.0)1 x M12 8pin for USB 3/4 (USB2.0)2 x USB 3.2 (Gen1)2 x USB2.0 |
| COM | 2 x M12 8pin/ RS232 RS232/RS422/RS485 x 2 |
| LAN | 1 x M12 8pin for LAN (2.5 Gigabit)1 x 1 Gigabit LAN1 x 2.5 Gigabit LAN |
| Audio | N.A.2 x 3.5mm phone jack connector (Line-out, Mic-in) |
| Video | N.A.1 x HDMI ® 2.0b,1 x VGA |
| DC in | 1 x M12 5pin DC power connector |
| Control Key | Rear bottom: Power on /off Mechanical and Environmental |
| Power input | DC 12V ~ 28V |
| Power Adapter | AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 120W (IP68 PSU w/ PSE) |
| Power Consumption | TBD W |
| Temperature | Operating Temperature 0 ~ 40℃ (24V DC, IEC60068-2-56, HDD) 0 ~ 50℃ (24V DC, IEC60068-2-56, SSD) Storage Temperature -20 ~ 60℃ |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing |
| IP Rating / Housing | IP66 / NEMA4X / IP69K whole set / IK05 / stainless steel (SUS304), chassis type |
| Dimensions (Net) | 557 mm (H) x 348.5 mm (V) x 58.5 mm (T) |
| Weights (Net) | 12 kg |
| Cooling | Fanless |
| Mounting | VESA 100/100, side mount (M6*2) |
| Certification | CE (EMC) FCC Class B, Canada ICES-003 VCCI Class B |
