- Portwell, Wincomm

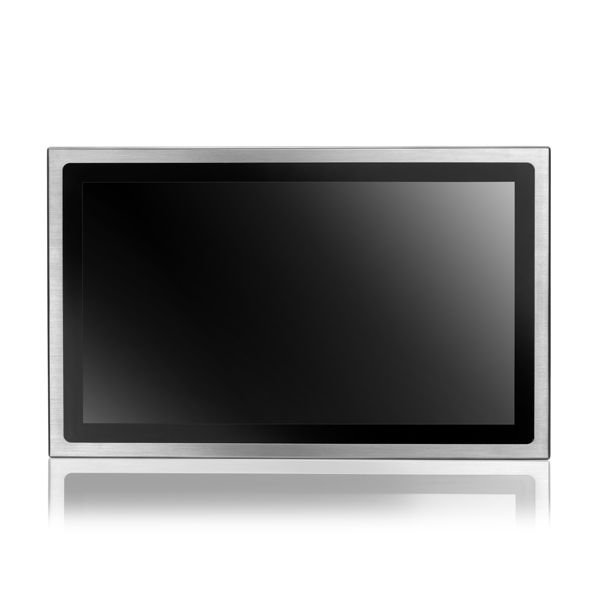

WTP-9H66-22
Alder Lake 22″
- 21.5″ Intel ® 12th Gen Fanless Stainless Panel PC
- TPM 2.0 on Board
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Support Intel ® vPro Technology by CPU
- Optional IP67 M12 Stainless Connectors
- Optional Cable Gland for External I.O.
- 100% Waterproof Guarantee
- CE, FCC, VCCI Class B Certified
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.

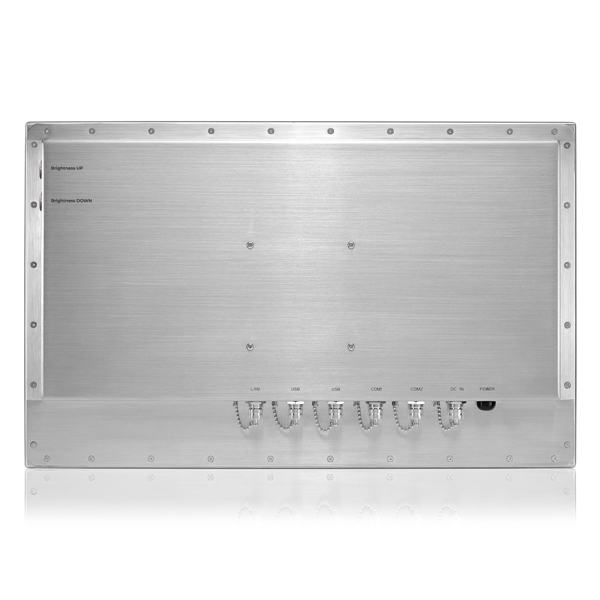

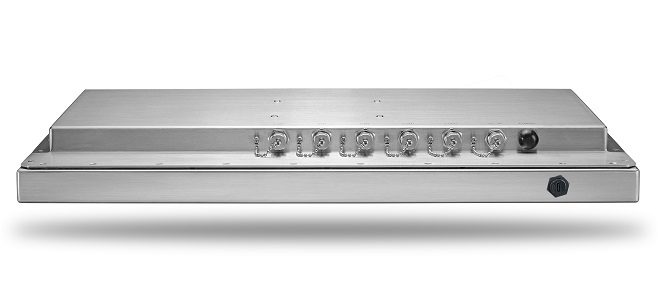

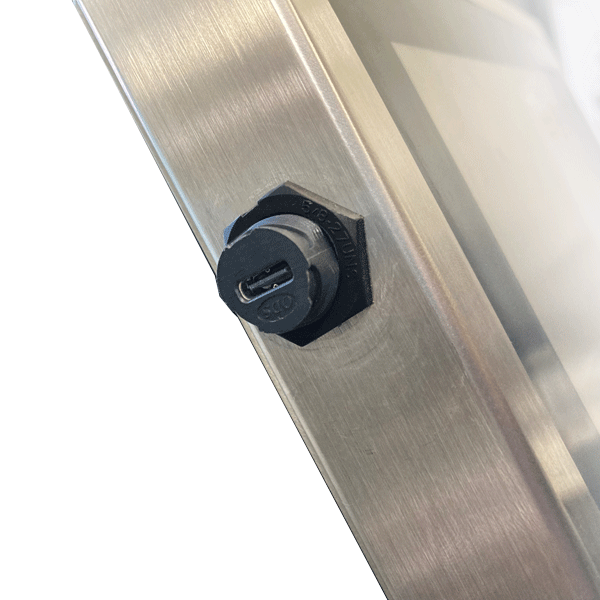

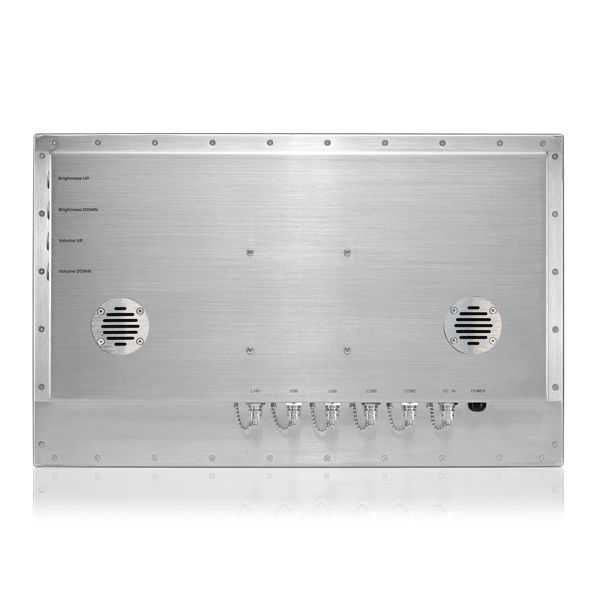

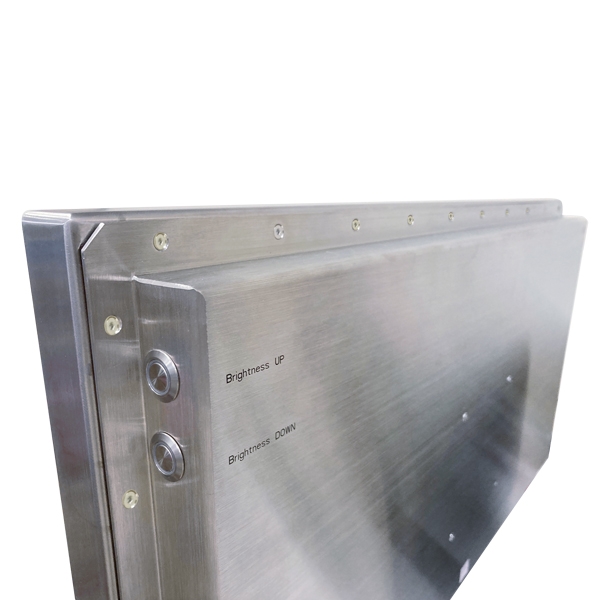

| CPU / Chipset | Intel ® 12th Gen Alder Lake-P MCP Processors, 15 W / Soc |
|---|---|
| Graphic | Intel ® Gen 12 Graphics |
| RAM | Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB |
| TPM | TPM2.0 |
| OS Support | Optional Windows 10 (64 bit) / Windows 11 (64 bit) |
| Storage | 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism)1 x M.2 (Key M, 2242/2260/2280) with PCIex4 (Gen4) for SSD |
| Expansion | 1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G1 x SIM socket connected to M.2 key B1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless |
| Display Size | 21.5” 19:6 |
| Display | 1920 x 1080(Full HD), 170(H) / 160(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ) |
| Touch Screen | Full Flat Resistive touch / Light Transmission: 80 ± 5% / Hardness: ≧3H / Lifetime: 35M times / Touch Mode: Normal mode Full flat P-Cap touch / Light Transmission: ≧86% / Hardness:≧7H / Lifetime: 100M times / Touch Mode: Normal / Glove / Water mode I.O. Ports |
| Configuration | STD. (M12 Connector) Cable Gland (Max. 5 external I/O by proper grommet) |
| USB | 1 x M12 8pin for USB 2.0 1/21 x M12 8pin for USB 2.0 3/41 x USB 3.2 Gen1 (Type-C, Support DP1.4a display output)2 x USB 2.02 x USB 3.2 Gen22 x USB 3.2 Gen2 (Type-C, Support DP1.4a display output) |
| COM | 2 x M12 8pin for COM 1 & COM2 / RS-232/422/4852x RS232/RS422/RS485 |
| LAN | 1 x M12 8pin for LAN 12 x RJ-45 (2.5Gigabit Ethernet) |
| Audio | N.A.2 x 3.5mm phone jack connector (Line-out, and Mic-in) |
| Video | N.A.2 x HDMI ® 2.0b2 x Type-C (Support DP1.4a display output, Power output 5V/3A) |
| Control Key | Rear bottom: Power on /off; Side: Brightness Up / Down Mechanical and Environmental |
| DC in | 1 x DC-In connector, DC 12 ~ 28V |
| Power Adapter | AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 |
| Temperature | Operating Temperature 24V DC Input 0 ~ 40℃ (IEC60068-2-56, air flow cooling, HDD) 24V DC Input 0 ~ 50℃ (IEC60068-2-56, air flow cooling, SSD) Storage Temperature -20 ~ 60℃ |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing |
| IP Rating / Housing | IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type |
| Dimensions (Net) | 557 mm (H) x 348.5 mm (V) x 58.5 mm (T) |
| Weights (Net) | 12 kg |
| Cooling | Fanless |
| Mounting | VESA 100*100, side mount (M6*2) |
| Certification | CE (EMC) / FCC-B / VCCI Class B, Canada ICES-003 |
