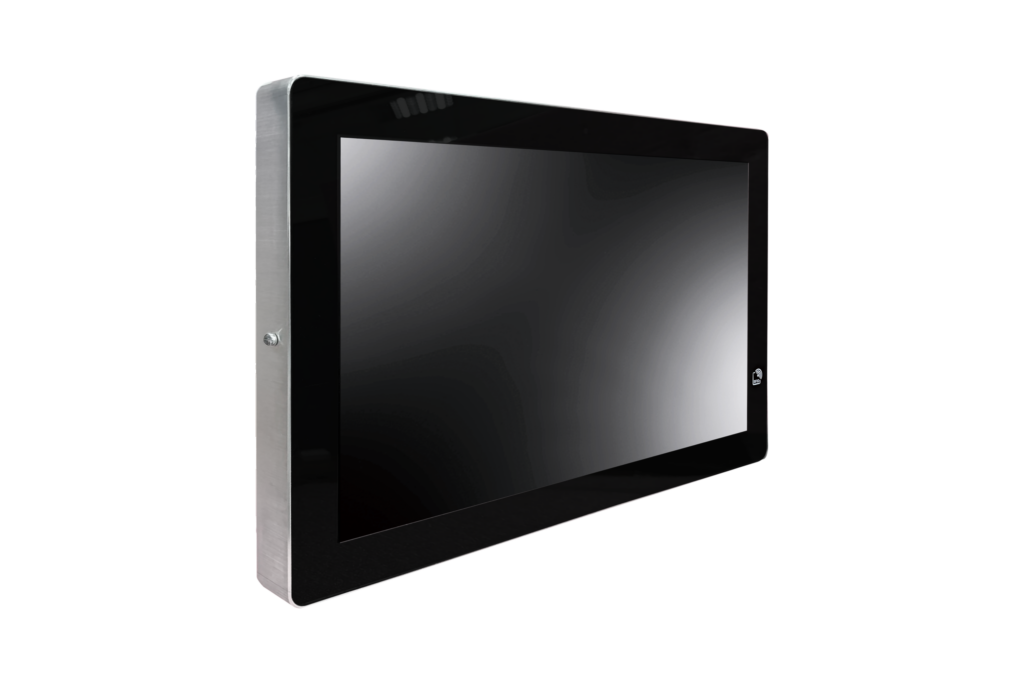

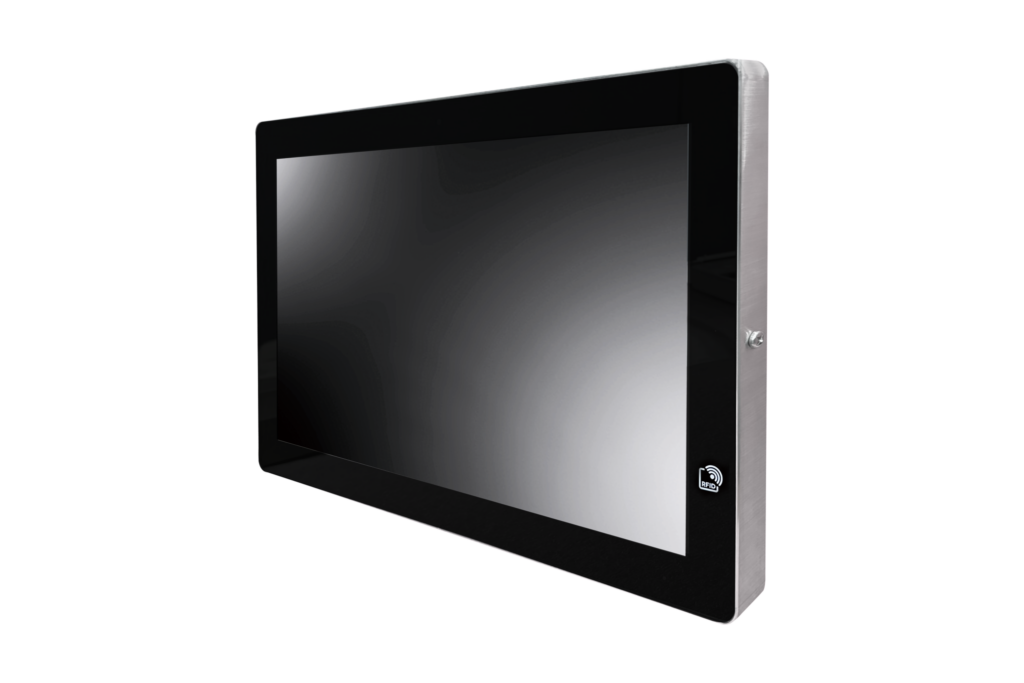

WTP-9K66-22
21.5” Intel® Core™ Ultra 125U fanless stainless steel panel PC with bezel-free design, TPM 2.0, Intel® vPro® support, IP66/IP69K full-sealed anti-corrosion enclosure, optional IP67 M12 connectors, 100% waterproof, CE/FCC/VCCI Class B certified.
- 21.5” Intel ® Core Ultra 125U Fanless Stainless Steel Panel PC
- Bezel Free
- TPM 2.0 On Board
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Support Intel ® vPro Technology by CPU
- Optional IP67 M12 Stainless Connectors
- 100% Waterproof Guarantee
- CE, FCC, VCCI Class B Certified
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Main System | CPU / Graphic Intel ® Core™ Ultra processors 125U, 155U / Intel ® Graphics |
|---|---|
| Memory | Dual Channel DDR5 5600 MHz,1 x 262 SODIMM, up to 48GB |
| TPM | TPM2.0 On Board |
| OS Support | Optional Windows 10 (64 bit) / Windows 11 (64 bit) |

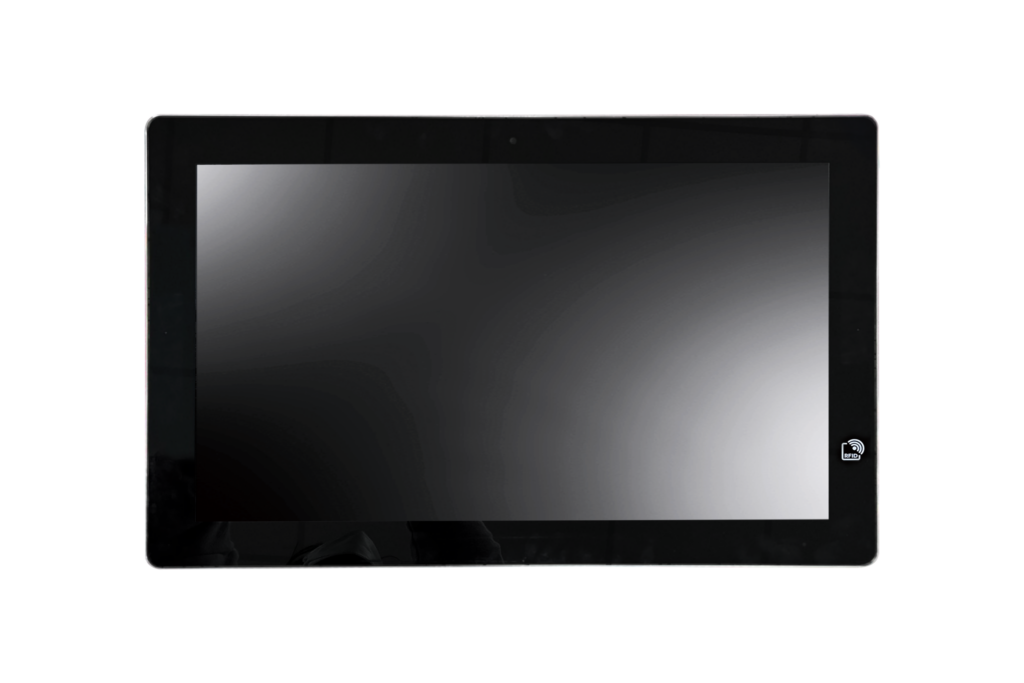

| Display | Size 21.5" 16:9 |
| Resolution (pixel) | 1980 x 1080 (FHD) |
| Number of Colors | 16.7M colors |
| View Angle (H/V) | 170(H) / 160(V) |
| Brightness (nit) | 250 nits |
| Contrast Ratio | 1000 : 1 (Typ) |
| Touch Panel | Type Full flat P-Cap touch Full flat resistive touch |
| Light Transmission | ≧ 88% 80±5% |
| Hardness/ Lifetime | ≥6H / 100M times ≥3H / 10M times |
| Touch mode (API) | Auto Switch: Normal / Two-Points / Lock Normal |
| Storage & Expansion | Storage1 x M.2 (Key M, 2242/2280) with PCIe4 (Gen4) for SSD1 x M.2 (Key M, 2242) with PCIe4 (Gen4) for SSD |
| Expansion | 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB3.2 Gen 1, USB2.0 and SIM for 4G/5G1 x SIM socket connected to M.2 key B1 x M.2 (Key E, 2230) with PCIe Gen 4, USB2.0 and CNVi for wireless |

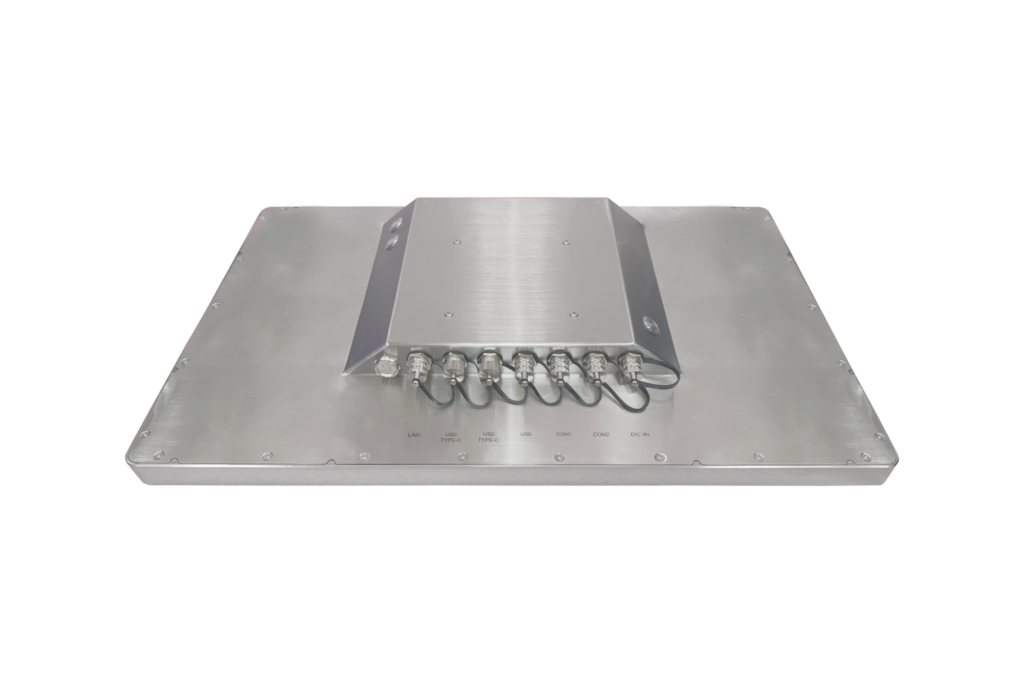

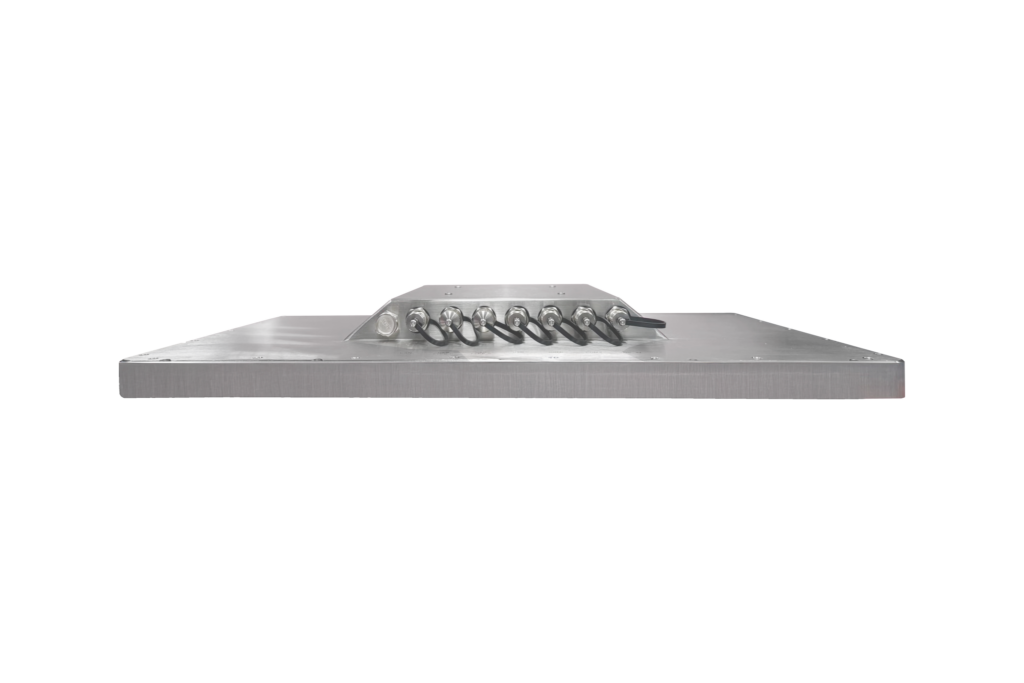

| I/O Ports | Configuration STD. (M12 Connector) |
| USB | 1 x M12 8pin for USB 2.0 (1/2)2 x USB 3.2 Gen2 (Type-C, Support DP1.4a display output, Power output 5V/3A) |
| COM | 2 x M12 8pin for COM 1 & COM2 (RS-232/422/485) |
| LAN | 1 x M12 8pin for LAN 1 |
| Power | Power Control Key1 x M12 5pin DC Power Connector Side bottom: Power on / off |
| DC in | 1 x DC-in connector, DC 12 ~ 36V |
| Power Consumption | tbd |
| Power adapter | AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 |
| Environmental | Temperature Operating Temperature 24V DC Input 0 ~ 50℃ (IEC60068-2-56, air flow cooling, SSD) Storage Temperature -20 ~ 60℃ |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing |
| Water/Dust resistance | IP66 / NEMA4X / IP69K |

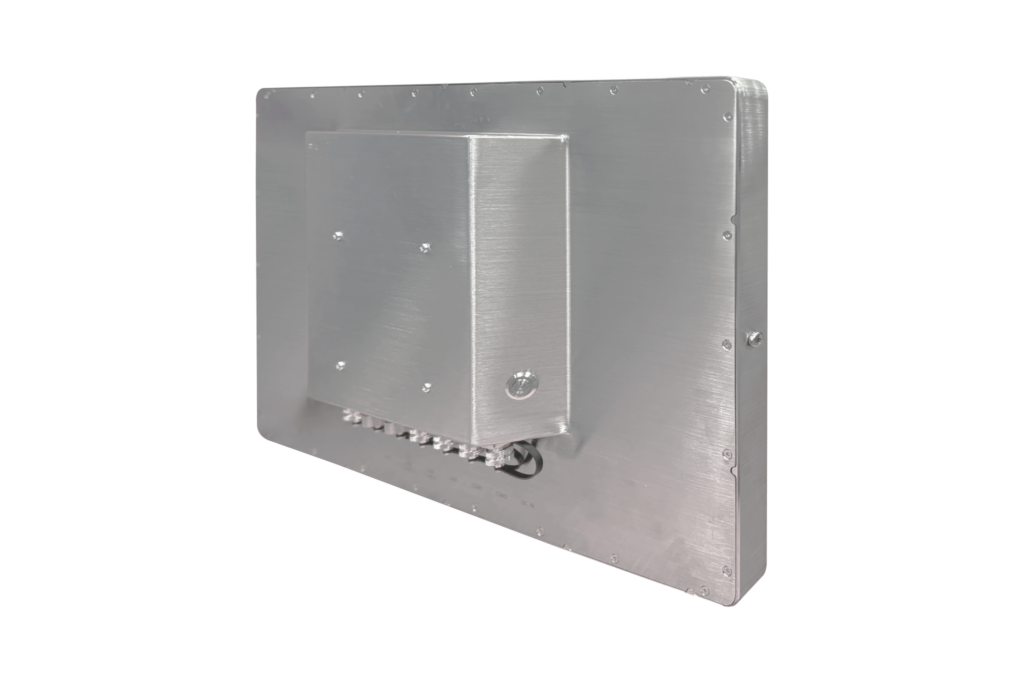

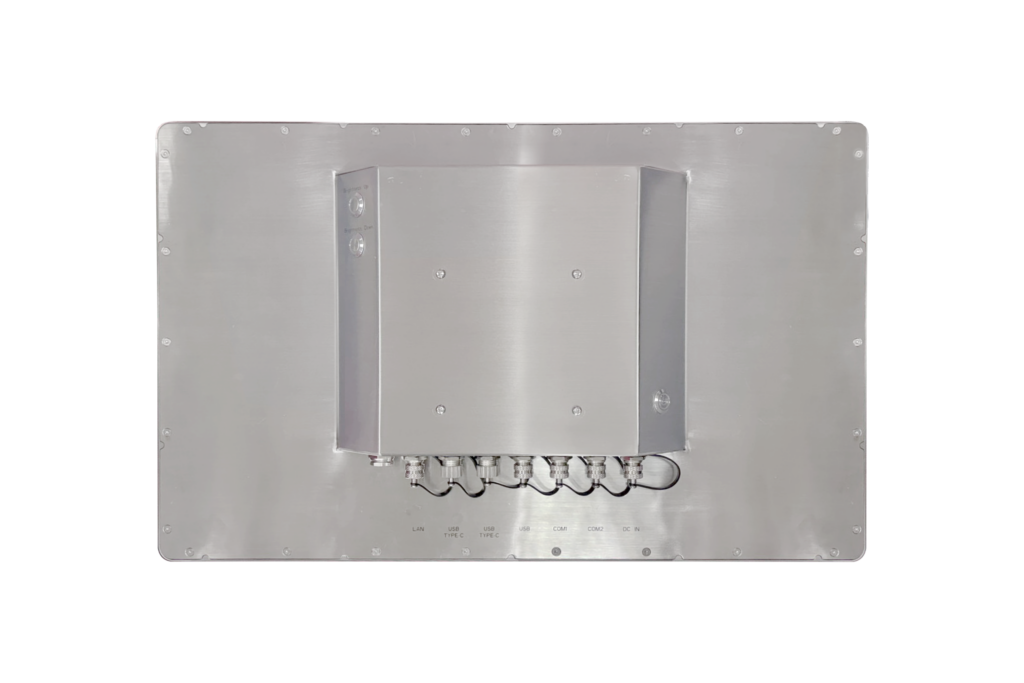

| Mechanical Characteristics | Housing SUS304 stainless steel enclosure, chassis type |
| Dimensions (net:mm) | 550 x 341.7 x 58 |
| Weights (net: kg) | 9.5 Kg (Gross weight: 11.5 kg) |
| Mounting | VESA 100*100, side mount (M6*2) |
| Certification | CE (EMC) / FCC-B / VCCI Class B, Canada ICES-003 |
| Item | Cooling Description |
| WTP-9K66-22-MAPAN | Fanless 21.5" Core Ultra i5-125U 1.3-4.3 GHz / 8G RAM / 128G SSD / Full Flat P-Cap Touch / 2 USB, 2 COM, 1 LAN, 2 Type-C |
| WTP-9K66-22-MAFAN | Fanless 21.5" Core Ultra i5-125U 1.3-4.3 GHz / 8G RAM / 128G SSD / Full Flat Resistive Touch / 2 USB, 2 COM, 1 LAN, 2 Type-C |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WTP-9K66-22 | Datasheet | 358.02 KB | download – WTP-9K66-22 | Datasheet |
