Desktop Network Appliance
ANS-12000/12001
Compact Fan-less System with Intel® Amston Lake x7433RE(4C)/ x7835RE(8C) Processor for SD-WAN solution

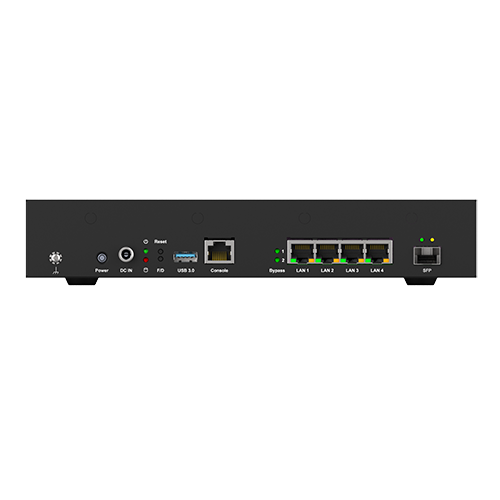

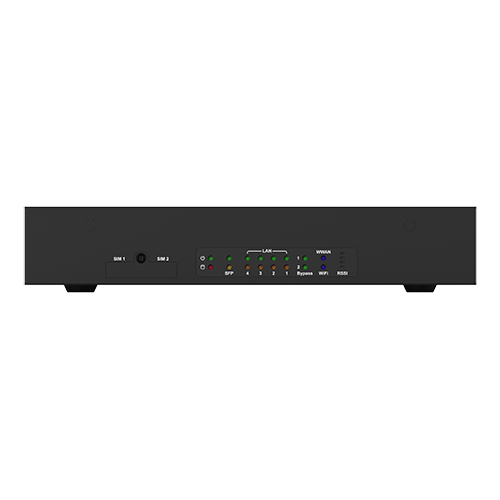

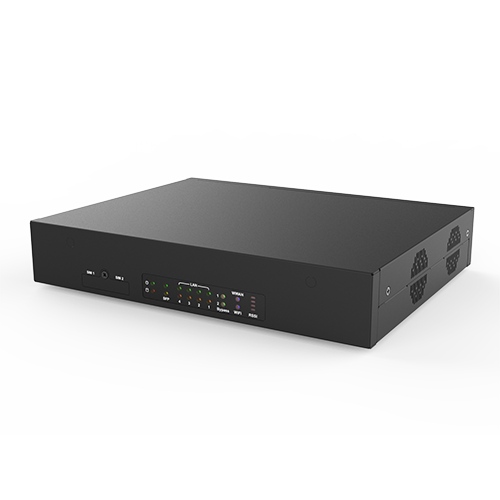

ANS-12002/12003
Compact Fan-less System with Intel® Amston Lake x7433RE(4C)/ x7835RE(8C) Processor for SD-WAN solution
- ANS-12000 series builds on Intel ® Amston Lake x7405C / x7809C
- Up to 8 Efficient Cores (E-cores) and support Intel ® DL Boost (INT8), AVX2
- 1x DDR5 4800 MT/s ECC and non-ECC SO-DIMM up to 32GB
- 2x SIM slots 1x M.2 Key-M 2242 slot (SATA) 1x M.2 Key-E 2230 slot (PCIe + USB 2.0) or M.2 2242/2280 (NVME) choose one of two *1 1x M.2 Key-B 3042/3052 slot
- 1x TPM2.0 (On-Board) Design ready for 5G and WiFi
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | Intel ® 9th Gen Atom Amston Lake x7405C(4C) Intel ® 9th Gen Atom Amston Lake x7809C(8C) |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 32GB on 1 non-ECC/ECC SODIMM |
| Storage | 1 x 2.5" SSD/HDD 2242 Slot (SATA)1 x eMMC 32G on board |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Ethernet | 4 x 2.5 GbE w/ Intel ® WGI226IT Bypass1 x GbE w/ Intel ® WGI210IT Combo |
| USB | 1 x USB 3.2 Gen1 Type A on Rear |
| Other | Power Button, Reset Button |
| Console Port | 1 x RJ45 |
| LED | Bypass, ETH Status, HDD, Power, RSSI, WiFi |
| Antenna | 6 x SMA Antenna holes for 5G / LTE / Wi-Fi |
| SIM Slots | 2 x Micro-SIM |
| M.2 | 1 x E Key w/ 3042 USB 2.0 and PCIe x11 x M Key 2242/2280 PCIe Gen3 x4 or1 x B+M Key 2230 Wi-Fi module |
| Security | TPM 2.0 |
| Dimension (WxDxH) | 200 x255 x 44 mm (7.87" x 10.04" x 1.73" ) |
| Weight | 1.7 kg |
| Mounting | Desktop, Wall Mount |
| Cooling | System2 x Fan |
| Power Supply | DC Jack 12V Single |
| Operating Temperature | 0 ~ 40 °C (32.0 ~ 104.0 °F) |
| Storage Temperature | -40 ~ 70 °C (-40.0 ~ 158.0 °F) |
| Relative Humidity | 5% to 90%, non-condensing |
| Certification | CE, FCC Class B Part18, CE LVD Safety (EN32638-1) |
| Portwell Special Feature | PET, NODE.X |
- Choose one of three with M.2 Key-E 2230 slot, SFP, and M.2 Key-M 2242/2280 slot
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3689 | ANS-12002 | ANS-12002-x7405C. ASL x7405C SKU, Proprietary Fan System. With PNAB-1210-x7405C. 12V Input. 2.5GbE RJ45*4. 1GbE SPF*1. DDR5 SO-DIMM*1 | add to list – ANS-12002 |
| AS5-3678 | ANS-12003 | ANS-12003-x7809C. ASL x7405C SKU, Proprietary Fan System. With PNAB-1210-x7405C. 12V Input. 2.5GbE RJ45*4. 1GbE SPF*1. DDR5 SO-DIMM*1 | add to list – ANS-12003 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ANS-12000 Series | User Manual | 3.75 MB | download – ANS-12000 Series | User Manual |
| ANS-12002 | Datasheet | 308.99 KB | download – ANS-12002 | Datasheet |
| ANS-12003 | Datasheet | 308.45 KB | download – ANS-12003 | Datasheet |
