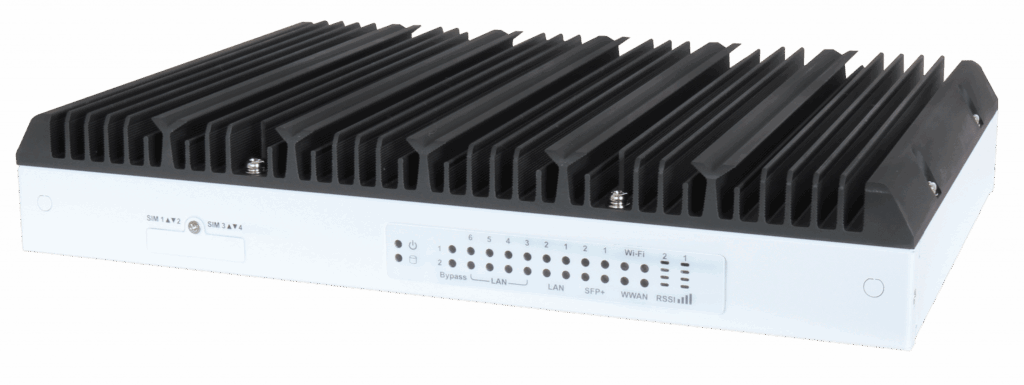

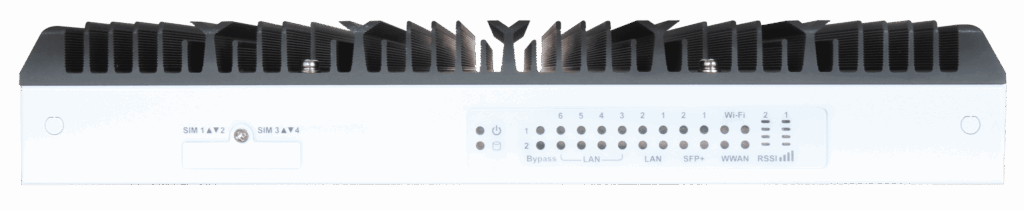

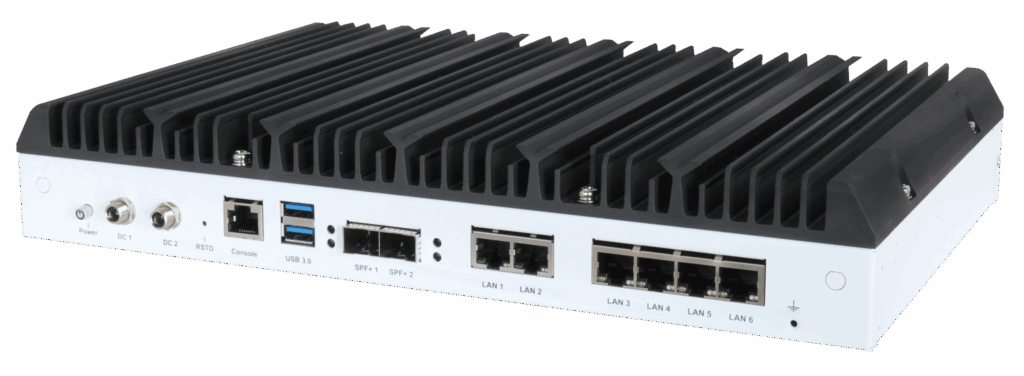

ANS-7A44E
Fanless Desktop Platform with AMD V3000 V3C18I processor and six 2.5GbE plus two 10GbE Ports for SD-WAN Solution
- Fanless Desktop with wide-range operating temperature
- AMD V3C18I processor series with 8 cores and 16 threads
- 2x DDR5 SO-DIMM 4800MT/s Memory Up to 64GB
- 2x M.2 Key-M 2242/2280 slots
- 6x 2.5GbE RJ45 with 2-pair bypass and 2x 10GbE SFP+
- 2x M.2 Key-B, 3042/3052 with 2x Micro SIM + 1x M.2 Key A-E 2230/3042 (PCIe + USB 2.0)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | AMD V3000 V3C18I processors, TDP 15W |
|---|---|
| BIOS | AMI BIOS |
| Memory | 2x DDR5 SO-DIMM up to 64GB |
| Storage | 1x M.2 Key-M 2242/2280 slots (PCIe x4)1x M.2 Key-M 2242/2280 slots (PCIe x4 or SATA) |
| Expansion | 2x M.2 Key-B 3042/3052 slot with2x Micro SIM1x M.2 Key A-E 2230/3042 slot with PCIe and USB 2.0 signals |
| Security | TPM 2.0 |
| Console | 1x RJ45 Console |
| USB | 2x USB 3.2 Gen1x2 (10Gbps) |

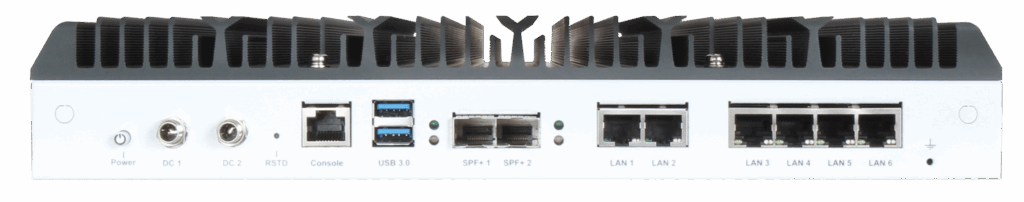

| Ethernet | 6x 2.5GbE RJ45 (Intel ® I226) and2x 10GbE SFP+ Two pairs of LAN bypass |
| System | Dual 12VDC outputs with 90W Power Adapter, 110-220V AC input |
| Dimension (W x D x H) | 330 x205 x 55 mm |
| Mounting | Desktop |
| Operating Temperature | -20 ~ 50 °C (-4 ~ 122 °F) |
| Storage Temperature | -40 ~ 70 °C (-40 ~ 158 °F) |
| Relative Humidity | 10 ~ 90% RH, non-condensing |
| Certification | CE/FCC Class B |
| OS | Linux |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ANS-7A44 Series | User Manual | 4.37 MB | download – ANS-7A44 Series | User Manual |
| ANS-7A44E | Datasheet | 624.56 KB | download – ANS-7A44E | Datasheet |
