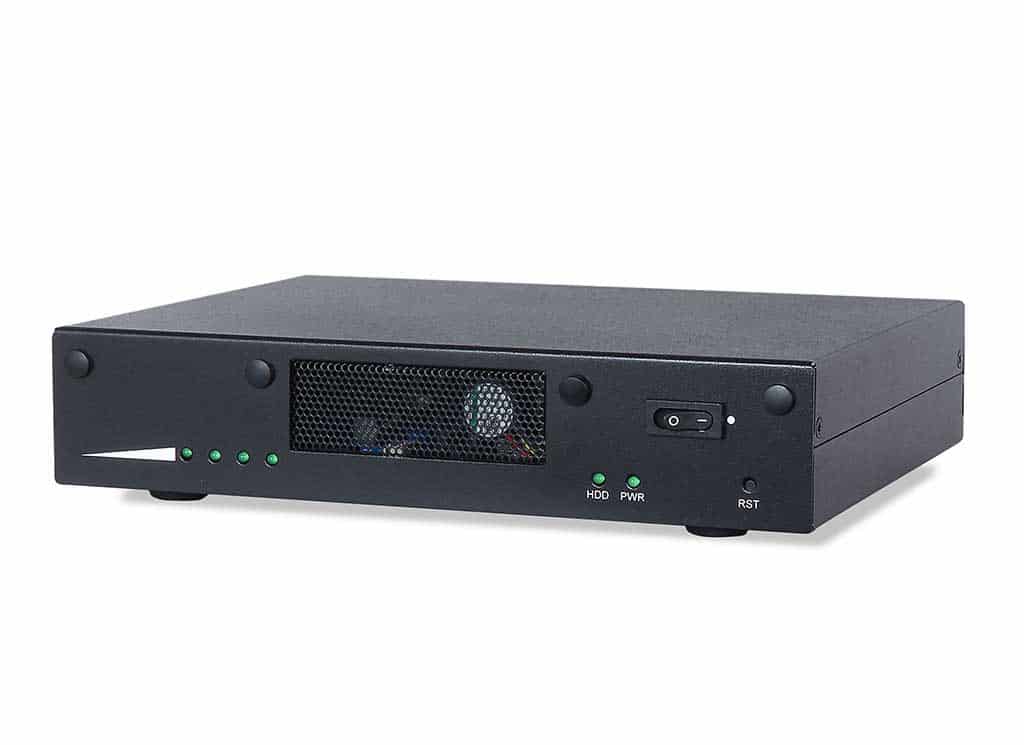

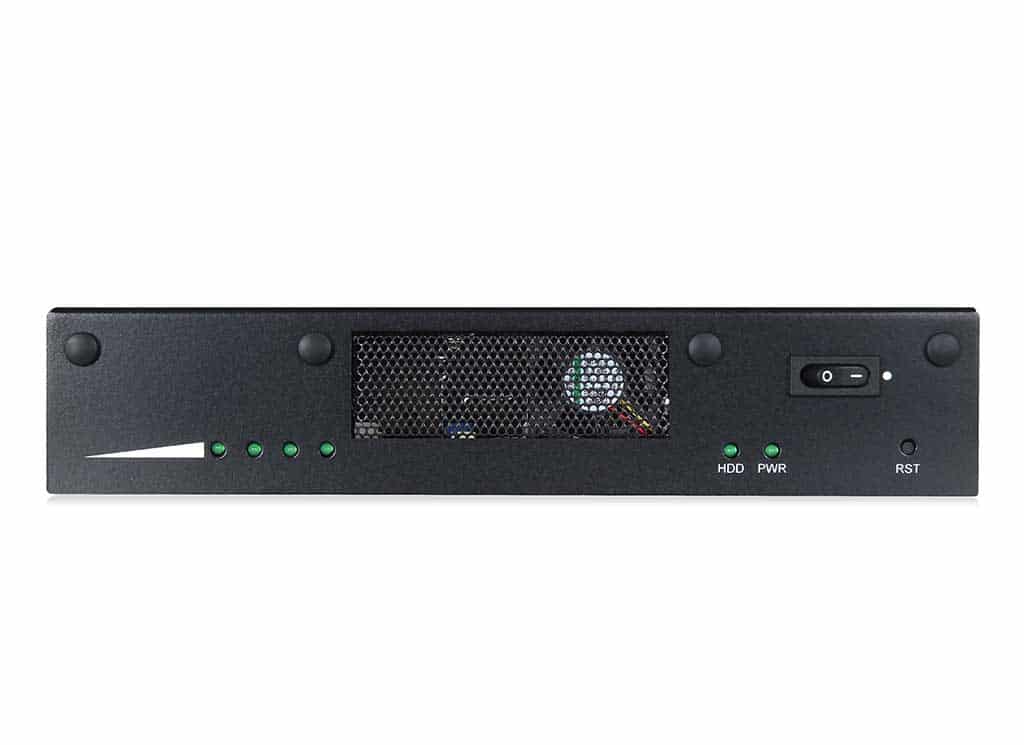

ANS-2121/41/42P
Compact System with Intel Atom® E3900 series for SD-WAN solution
- Intel Atom ® x5-E3940(4C)/ E3930(2C) Processor (Apollo Lake)
- 2x GbE RJ45, 8x GbE RJ45 (with PoE+ support by SKU)

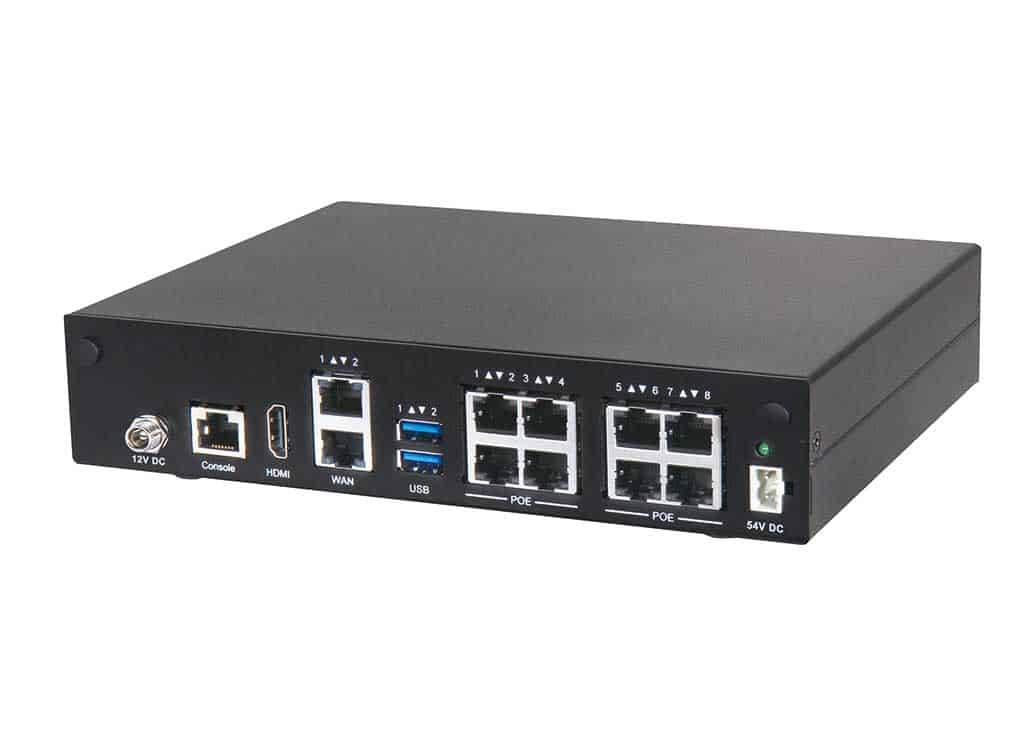

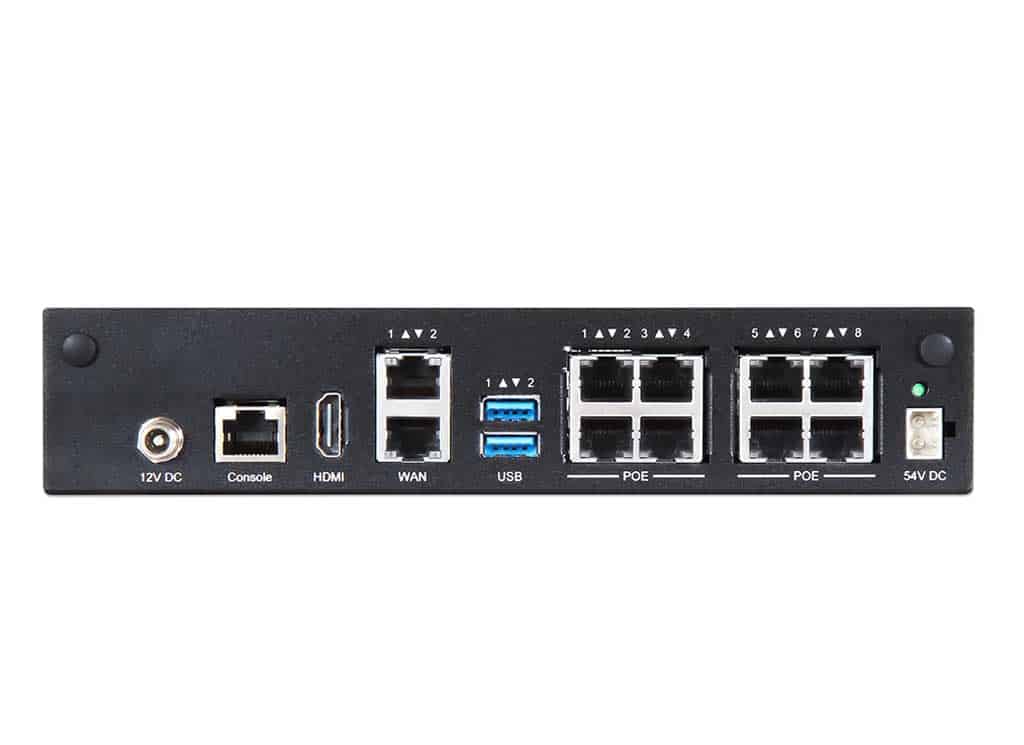

- 1x RJ45 Console, 1x HDMI ® , 2x USB3.0
- 1x DDR3L 1866/1600/1333 MT/s ECC SO-DIMM up to 8GB
- 1x eMMC 16GB(on-board), 1x TPM2.0 (on-board)
- 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATA III, 2x micro SIM
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount
Platform Overview
About this series
ANS-2121/41/42 series builds on Intel Atom® processor E3900 family with up to four CPU cores. ANS series is a compact system with up to 10x GbE ports and PoE+ support, it is suitable for SDN (SD-WAN) application with 5G and IoT devices deployment.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | ANS-2121 | ANS-2141 | ANS-2141P | ANS-2142 | ANS-2142P |
|---|---|---|---|---|---|
| Processor | Intel Atom ® E3930(2C) | Intel Atom ® E3930(2C) | Intel Atom ® E3930(2C) | Intel Atom ® E3940(4C) | Intel Atom ® E3940(4C) |
| BIOS | AMI | ||||
| Memory | 1 x DDR3L 1866/1600/1333 MT/s ECC SO-DIMM up to 8GB | ||||
| Ethernet | 6x GbE RJ45 RTL8111H | 10x GbE RJ45 RTL8111H | 10x GbE RJ45 RTL8111H | 10x GbE RJ45 RTL8111H | 10x GbE RJ45 RTL8111H |
| Expansion | 1 x Half-size Mini-PCIe slot with PCIe and USB2.0 signals1 x M.2 Key-B slot with PCIe and USB3.0 signals2 x SIM slot | ||||
| Security | TPM 2.0 | ||||
| Storage | eMMC 16GB on-board1 x SATA III port for 2.5" HDD/SSD or SATADOM | ||||
| Console | 1 x RJ45 | ||||
| USB | 2 x USB 3.0 | ||||
| Display | 1 x HDMI ® , resolution up to 4Kx2K@60Hz | ||||
| Ethernet #2 | 6 x RJ45 GbE | 10 x RJ45 GbE | 10 x RJ45 GbE | 10 x RJ45 GbE | 10 x RJ45 GbE |
| PoE+ (Optional) | 4 x RJ45 GbE | 8 x RJ45 GbE | 8 x RJ45 GbE | 8 x RJ45 GbE | 8 x RJ45 GbE |
| Antenna | 6 x SMA Antenna holes for WiFi or LTE/5G module | ||||
| Dimension | 217 (W) x 168 (D) x 44 (H) mm | ||||
| Weight | 3.5 Kg | ||||
| System | 40W Power Adapter, 110 ~ 220V AC input, 12V DC output | ||||
| PoE+ | 270W Power Adapter, 90 ~ 264V AC input, 54V DC output (PoE+ Model only) | ||||
| OS Temp. | 0 °C ~ 40 °C, 10 ~ 90% RH | ||||
| Storage Temp. | -10 °C ~ 70 °C, 10 ~ 95% RH @55 °C | ||||
| Certification | CE / FCC Class A | ||||
