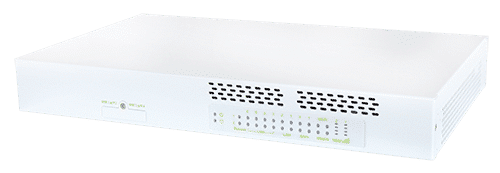

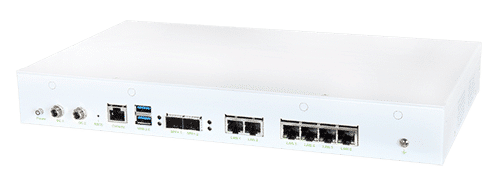

ANS-7A44G
Compact Desktop Platform with AMD V3000 processor and six 2.5GbE plus two 10GbE Ports for SD-WAN Solution
- AMD V3000 processor series up to 8 cores and 16 threads.
- 2x DDR5 SO-DIMM 4800MT/s Memory Up to 64GB
- 2x M.2 Key-M 2242/2280 slots (PCIe x4)
- 6x 2.5GbE RJ45 with 2-pair bypass and 2x 10GbE SFP+
- 2x M.2 Key-B, 3042/3052 with 2x Micro SIM + 1x M.2 Key A-E 2230/3042 (PCIe + USB 2.0)
Platform Overview
About this series
ANS-7A44G is built with AMD V3000 processor with up to eight CPU cores and sixteen threads. ANS-7A44G, a compact system comes with 2x 10GbE SFP+ and 6x 2.5GbE ports with 2-pair bypass function, is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | AMD V3C14 processors, TDP 15W for ANS-7A42G AMD V3C16 processors, TDP 15W for ANS-7A43G AMD V3C18I processors, TDP 15W for ANS-7A44G |
|---|---|
| BIOS | AMI BIOS |
| Memory | 2x DDR5 SO-DIMM up to 64GB |
| Storage | 1x M.2 Key-M 2242/2280 slots (PCIe x4)1x M.2 Key-M 2242/2280 slots (PCIe x4 or SATA) |
| Expansion | 2x M.2 Key-B 3042/3052 slot with2x Micro SIM1x M.2 Key A-E 2230/3042 slot with PCIe and USB 2.0 signals |
| Security | TPM 2.0 |
| Console | 1x RJ45 Console |
| USB | 2x USB 3.2 Gen1x2 (10Gbps) |
| Ethernet | 6x 2.5GbE RJ45 (Intel ® I226) and2x 10GbE SFP+ Two pairs of LAN bypass |
| System | Dual 12VDC outputs with 90W Power Adapter, 110-220V AC input |
| Dimension (W x D x H) | 345 x 205.2 x 44.4 mm |
| Mounting | Desktop |
| Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Storage Temperature | -10 ~ 70 °C (14 ~ 158 °F) |
| Relative Humidity | 10 ~ 90% RH, non-condensing |
| Certification | CE/FCC Class B |
| OS | Linux |
