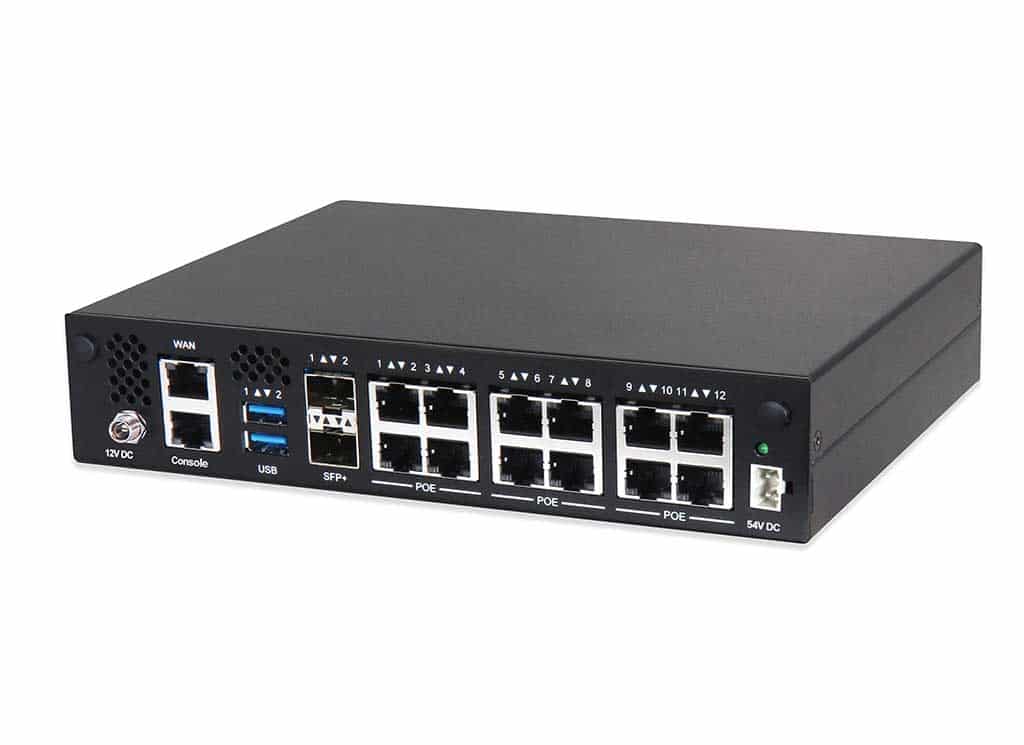

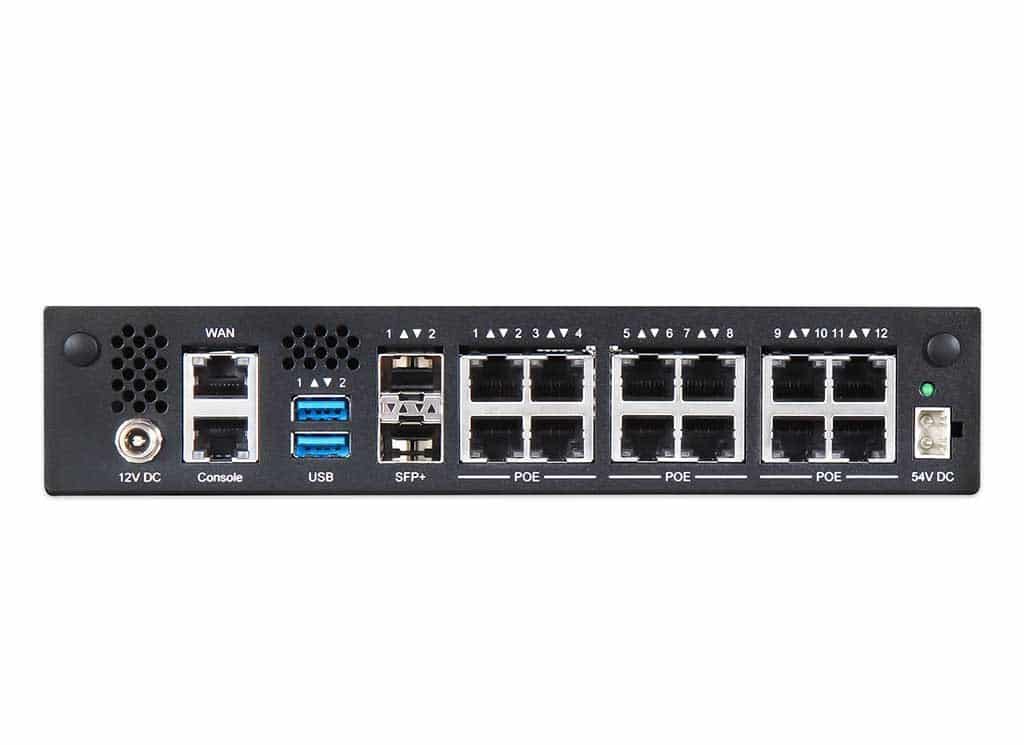

ANS-8A62/64P
Compact System with Intel® Atom® C3758(8C)/ C3558(4C) Processor for SD-WAN solution
- Intel Atom ® C3758(8C)/ C3558(4C) Processor (Denverton)
- 2x 10Gb SFP+, 1x GbE RJ45, 12x GbE RJ45 (with PoE+ support by SKU)
- 1x RJ45 Console, 2x USB3.0
- 2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 32GB
- 1x TPM2.0(on-board)
- 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount
Platform Overview
About this series
ANS-8A62/64P series builds on Intel Atom® C3758/ C3558 processor with up to eight CPU cores. ANS Denverton series is a compact system with up to 2x SFP+, 13x GbE ports and PoE+ support, it is suitable for SDN (SD-WAN) application with 5G and IoT devices deployment.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | ANS-8A62 | ANS-8A62P | ANS-8A64 | ANS-8A64P |
|---|---|---|---|---|
| Processor | Intel ® Denverton C3558(4C) | Intel ® Denverton C3558(4C) | Intel ® Denverton C3758(8C) | Intel ® Denverton C3758(8C) |
| BIOS | AMI | |||
| Memory | 2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 64GB | |||
| Ethernet | 12 x GbE RJ45 (RTL8111H),1 x GbE RJ45 (Marvell 88E1514)2 x SFP+ (From Intel ® Denverton) | |||
| Expansion | 1 x Half-size Mini-PCIe slot with PCIe and USB2.0 signals1 x M.2 Key-B slot with PCIe and USB3.0 signals1 x SIM slot | |||
| Security | TPM 2.0 | |||
| Storage | 1 x SATA III Connector for SATADOM | |||
| Console | 1 x RJ45 | |||
| USB | 2 x USB 3.0 | |||
| Ethernet #2 | 13 x RJ45 GbE2 x SFP+ 10GbE | |||
| PoE+ (Optional) | 270W power support up to12 x GbE RJ45 PoE+ | |||
| Antenna | 6 x SMA Antenna holes for WiFi or LTE/5G module | |||
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3306 | ANS-8A62 | C3558 4-core. 12x GbE LAN, 2x SFP+ | add to list – ANS-8A62 |
| AS1-3304 | ANS-8A62P | C3558 4-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required) | add to list – ANS-8A62P |
| AS1-3305 | ANS-8A64 | C3758 8-core. 12x GbE LAN, 2x SFP+ | add to list – ANS-8A64 |
| AS1-3303 | ANS-8A64P | C3758 8-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required) | add to list – ANS-8A64P |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ANS-8A62/64P | Application Note | 678.64 KB | download – ANS-8A62/64P | Application Note |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| NODE.X | Software | 22.42 MB | download – NODE.X | Software |
| NODE.X | Software | 17.10 MB | download – NODE.X | Software |
| ANSB-8A64 series | PCBA Datasheet | 254.60 KB | sign in to download – ANSB-8A64 series | PCBA Datasheet |
| ANS-8A62/64P | Datasheet | 437.12 KB | download – ANS-8A62/64P | Datasheet |
