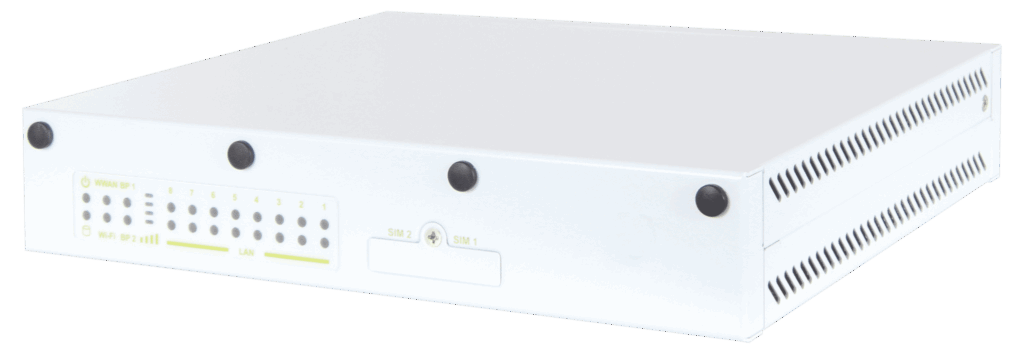

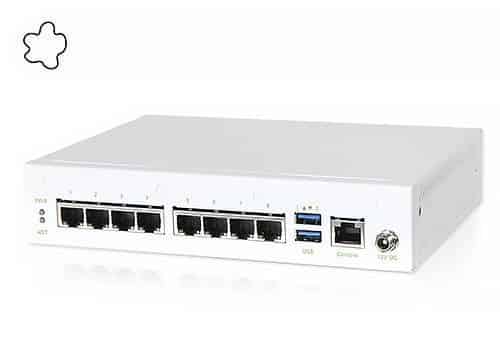

ANS-9142/41
Compact System with Intel® Denverton C3436L(4C) / C3338R(2C) Processor for SD-WAN solution
- Intel Atom ® C3436L(4C) / C3338R(2C) Processor (Denverton)

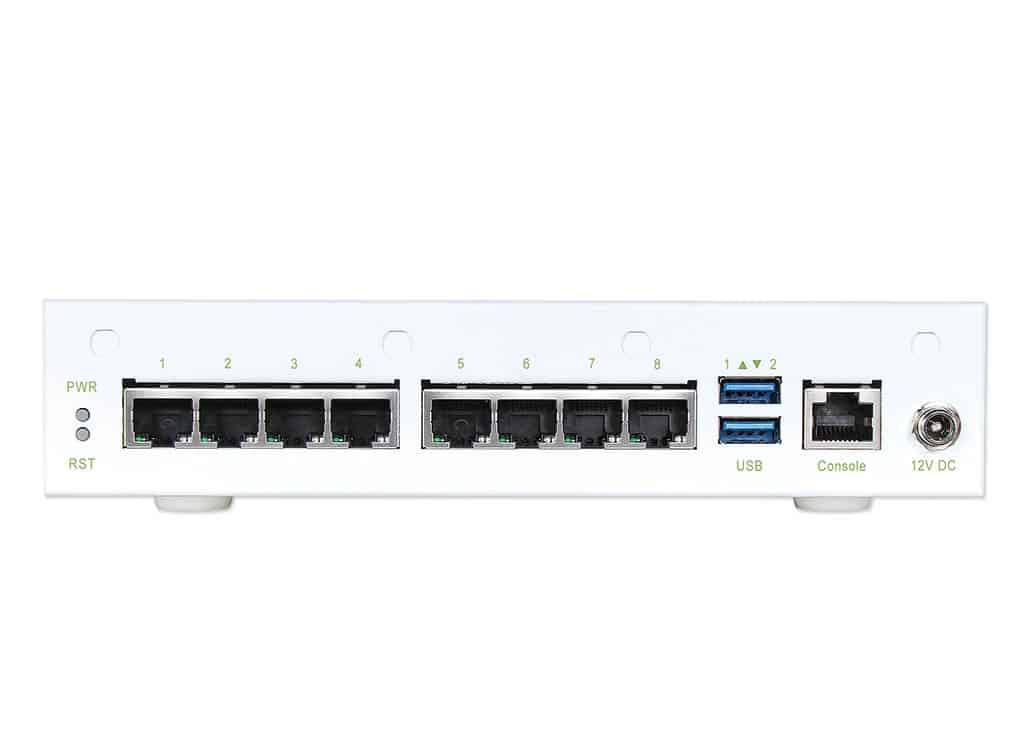

- 8x GbE RJ45 1x RJ45 Console, 2x USB 3.0
- 1x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 32 GB
- 1x TPM 2.0 (on-board)
- 1x M.2 Key-E Slot (PCIe/ USB2.0), 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA)

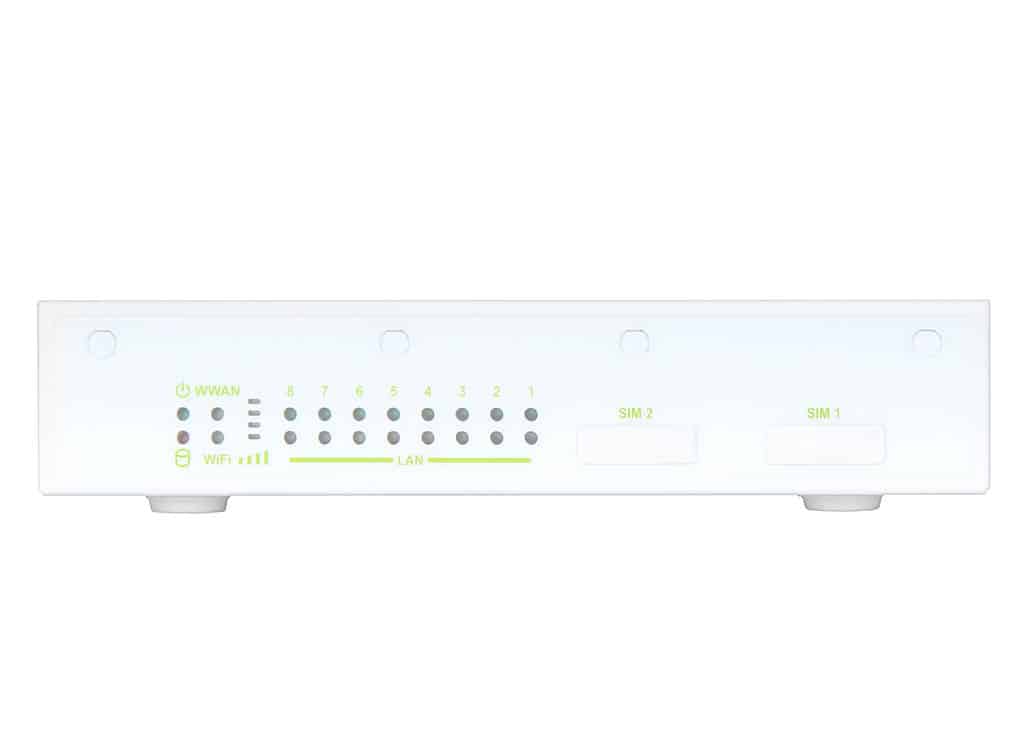

- Design ready for 5G and WiFi
- Compact design 2 in 1U rackmount
Platform Overview
About this series
ANS-9142 series builds on Intel® Denverton C3436L / C3338R processor with up to four CPU cores. ANS Denverton series is a compact system with up to 8x GbE ports and it is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | ANS-9142 | ANS-9141 |
|---|---|---|
| Processor | Intel ® Denverton C3436L(4C) | Intel ® Denverton C3338R(2C) |
| BIOS | AMI UEFI BIOS | |
| Memory | 1 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 32GB | |
| Storage | eMMC 5.0 16GB (Optional)1x SATA III port for SATADOM or M.2 Key-M storage | |
| Expansion | 1x M.2 Key-E slot with PCIe and USB2.0 signals1x M.2 Key-B slot with PCIe and USB3.0 signals2x SIM slots | |
| Security | TPM 2.0 | |
| Console | 1 x RJ45 | |
| USB | 2 x USB 3.0 | |
| Ethernet | 4x GbE RJ45 (Intel ® I211),4x GbE RJ45 (Marvell 88E1543) | |
| Other | 8x SMA Antenna holes for WiFi or LTE/5G module | |
| System | 65W Power Adapter, 110-220V AC input, 12V DC output | |
| Dimension | 203 (W) x 150 (D) x 42 (H) mm | |
| Mounting | Desk, Wall mount | |
| Operating Temperature | 0 °C ~ 40 °C | |
| Storage Temperature | -10 °C ~ 70 °C | |
| Relative Humidity Certification | 10% ~ 90%@40 °C, non-condensing CE, FCC, LVD | |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3319 | ANS-9142 | C3436L 4-Core 16GB eMMC, 8x GbE LAN | add to list – ANS-9142 |
| AS1-3318 | ANS-9141 | C3338R 2-Core 16GB eMMC, 8x GbE LAN | add to list – ANS-9141 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| NODE.X | Software | 22.42 MB | download – NODE.X | Software |
| NODE.X | Software | 17.10 MB | download – NODE.X | Software |
| ANS-9142 | EC 10824T00 | 94.56 KB | download – ANS-9142 | EC 10824T00 |
| ANS-9142 | BIOS 0.0.5 | 10.64 MB | download – ANS-9142 | BIOS 0.0.5 |
| ANSB-9142 Series | PCBA Datasheet | 252.32 KB | sign in to download – ANSB-9142 Series | PCBA Datasheet |
| ANS-9142/41 | Datasheet | 284.91 KB | download – ANS-9142/41 | Datasheet |
