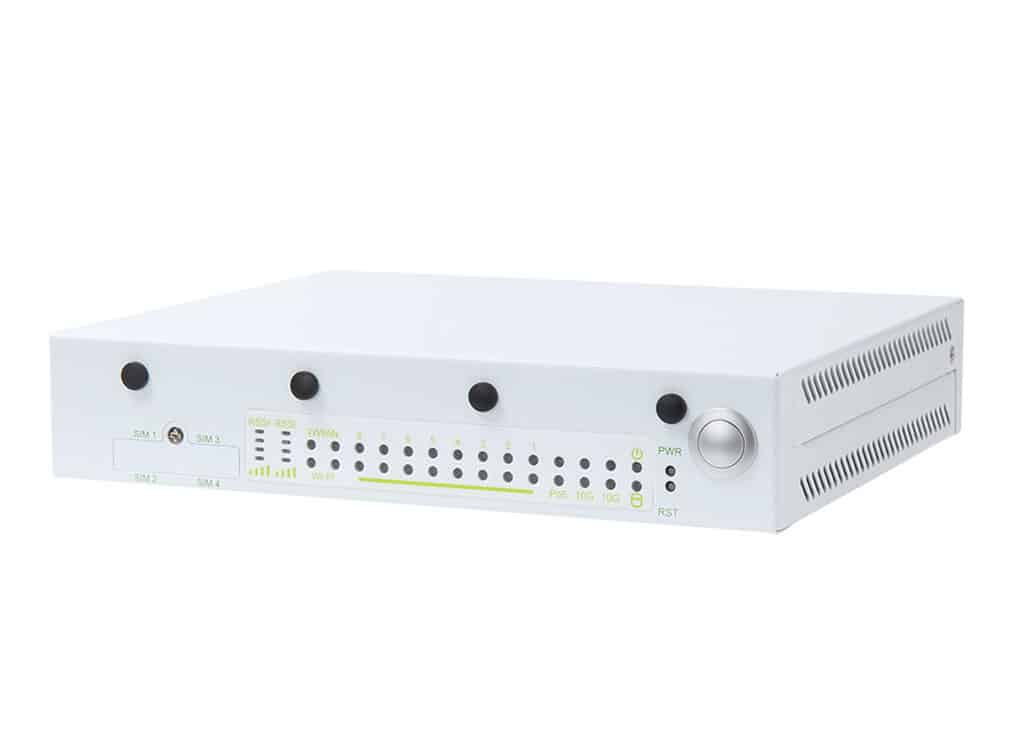

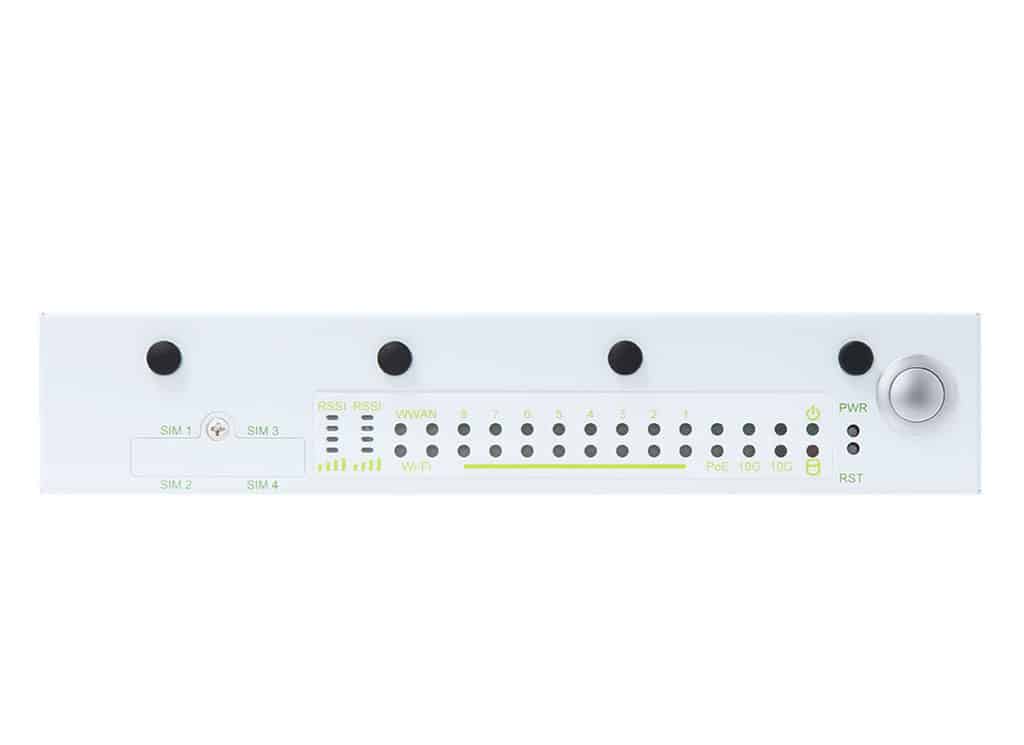

ANS-9A44F/42F
Compact System with Intel Atom® C3758R(8C) / C3558R(4C) Processor for SD-WAN solution
- Intel Atom ® C3758(8C) / C3558R(4C) Processor

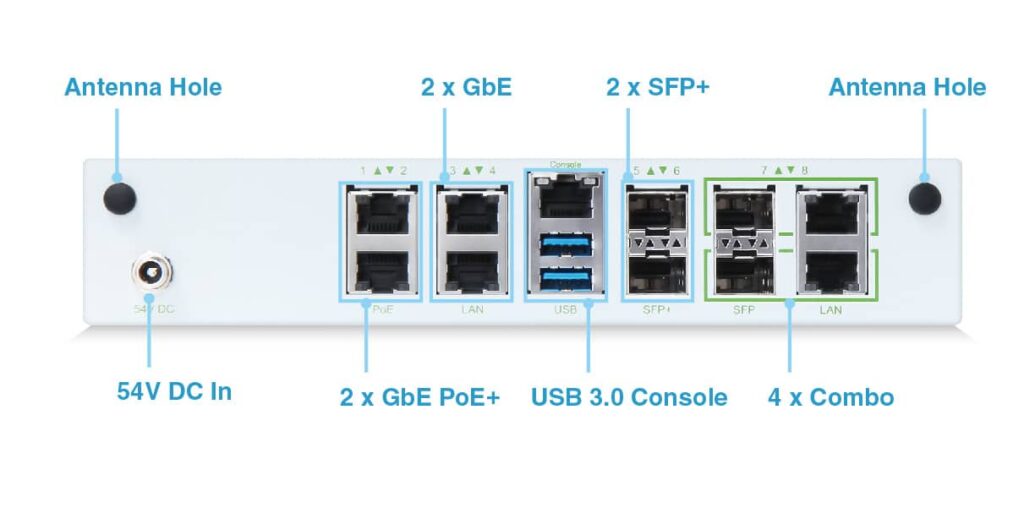

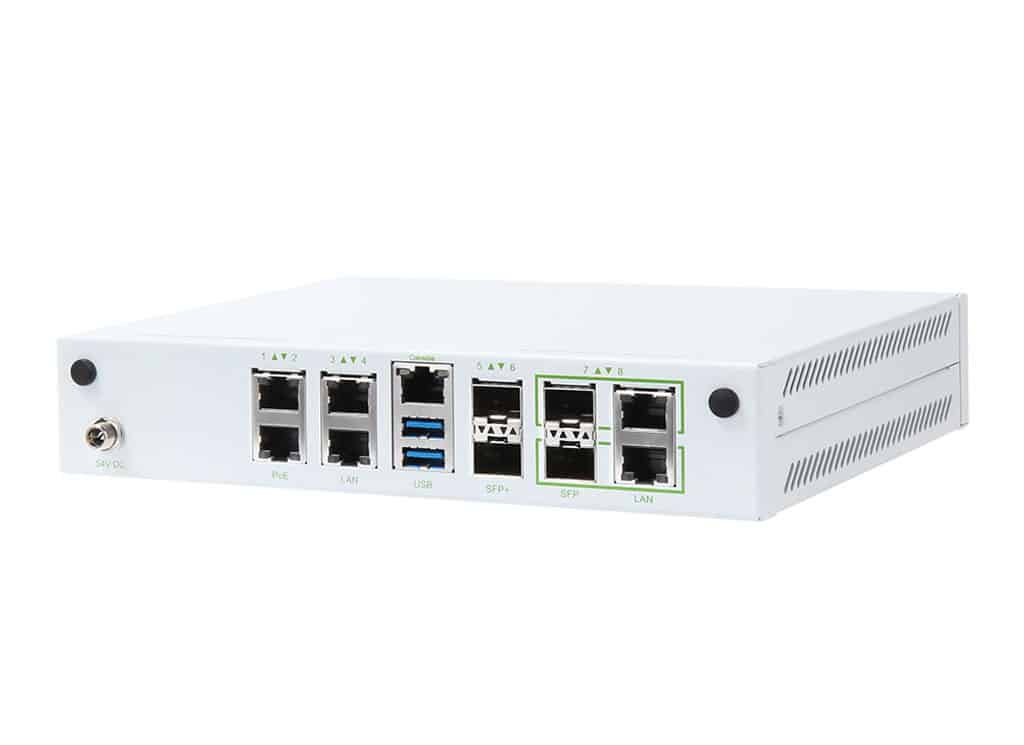

- 2x 10Gb SFP+, 2x GbE RJ45, 2x GbE RJ45 PoE+, 4x Combo Ports
- 1x RJ45 Console, 2x USB 3.0
- 2 x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 64GB
- 1x TPM2.0(on-board)
- 2x M.2 Key-E Slot(PCIe/ USB2.0), 2x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM
- Design ready for 5G and WiFi
- Compact design 2 in 1U rackmount
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | ANS-9A42F | ANS-9A44F |
|---|---|---|
| Processor | Intel ® Denverton C3758R(8C) for ANS-9A44F | Intel ® Denverton C3558R(4C) for ANS-9A42F |
| BIOS | AMI UEFI BIOS | |
| Memory | 2 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 64GB | |
| Storage | eMMC 5.0 16GB (Optional)1x SATA III port for SATADOM | |
| Expansion | 2x M.2 Key-E slot with PCIe and USB2.0 signals2x M.2 Key-B slot with PCIe and USB3.0 signals4x SIM slots PCIex 4 slot | |
| Security | TPM 2.0 | |
| Console | 1 x RJ45 | |
| USB | 2 x USB 3.0 | |
| Ethernet | 2x GbE RJ45 (Intel ® I211),2x SFP+ (From Intel ® Denverton) | |
| PoE+ Ethernet | 2x GbE RJ45 PoE+ (Intel ® I211) | |
| Combo Ethernet | 2x GbE RJ45(Marvell 88E1543),2x SFP (Marvell 88E1543) | |
| Other | 6x SMA Antenna holes for WiFi or LTE/5G module | |
| System | 120W Power Adapter, 110-220V AC input, 54V DC output | |

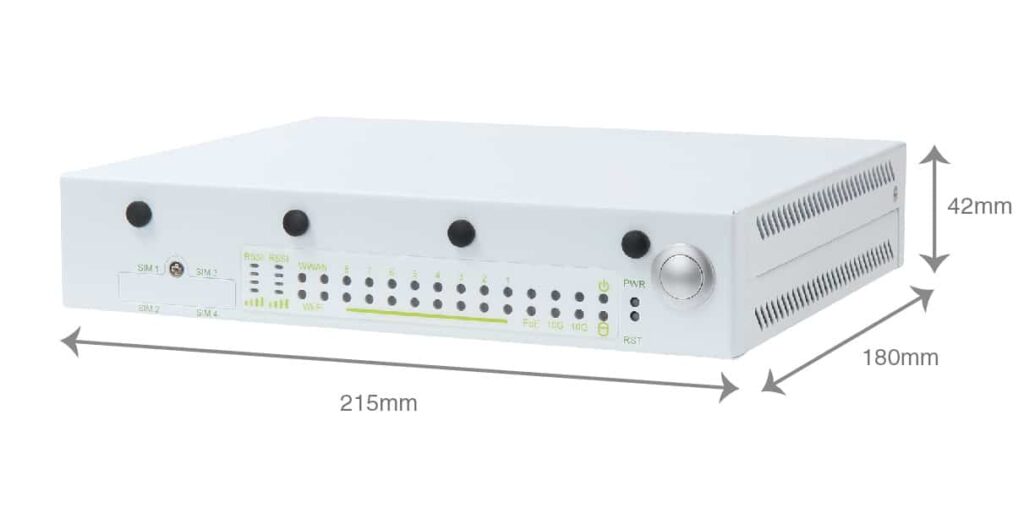

| Dimension | 215 (W) X 180 (D) X 42 (H) mm | |
| Mounting | Desk, Wall mount | |
| Operating Temperature | 0 °C ~ 40 °C | |
| Storage Temp. | -10 °C ~ 70 °C | |
| Relative Humidity Certification | 10% ~ 90%@40 °C, non-condensing CE, FCC, LVD | |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3322 | ANS-9A44F | C3758R 8-Core. 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port. | add to list – ANS-9A44F |
| AS1-3323 | ANS-9A42F | C3558R 4-Core. 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port. | add to list – ANS-9A42F |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| NODE.X | Software | 22.42 MB | download – NODE.X | Software |
| NODE.X | Software | 17.10 MB | download – NODE.X | Software |
| ANS-9A44F/42F | Datasheet | 364.43 KB | download – ANS-9A44F/42F | Datasheet |
