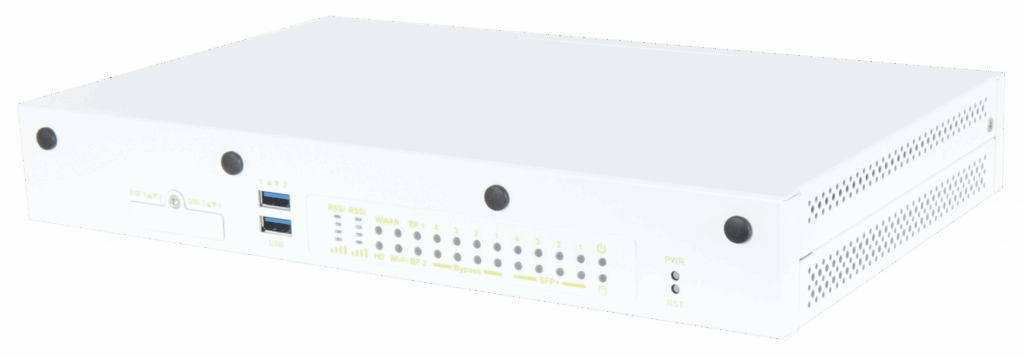

ANS-9A44S
Compact SD-WAN application with Intel® Denverton C3758R(8C) / C3558R(4C) Processor
- Intel Atom ® C3436L(4C) / C3338R(2C) Processor (Denverton)
- 8x GbE RJ45 1x RJ45 Console, 2x USB 3.0
- 1x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 32 GB
- 1x TPM 2.0 (on-board)
- 1x M.2 Key-E Slot (PCIe/ USB2.0), 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA)
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Denverton C3758R(8C) for ANS-9A44S Intel ® Denverton C3558R(4C) for ANS-9A42S |
|---|---|
| BIOS | AMI UEFI BIOS |
| Memory | 2x DDR4 2400 MT/s ECC & non-ECC SO-DIMM up to 64GB |
| Storage | 1x SATA III port for SATADOM, M.2 Key-M storage |
| Expansion | 1x M.2 Key-E slot with PCIe and USB2.0 signals or1x M.2 Key-B slot with PCIe and USB3.0 signals1x M.2 Key-B slot with PCIe and USB3.0 signals1x PCIe x44x SIM slots |
| Security | TPM 2.0 |

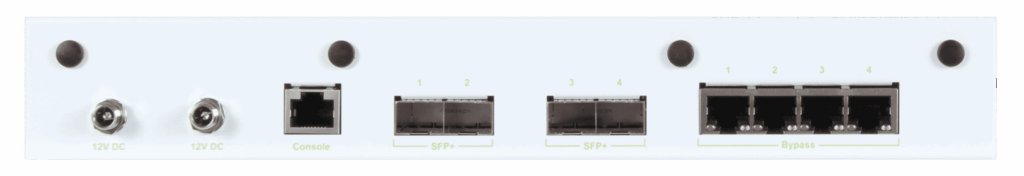

| Console | 1x RJ45 |
| USB | 2x USB 3.0 |
| Ethernet | 4x 2.5GbE RJ45 with ETH bypass (Intel ® I226)4x SFP+ (Intel ® Denverton Refresh) |
| Other | 8x SMA Antenna holes for WiFi or LTE/5G module |
| System | Dual 65W Power Adapter, 110-220V AC input, 12V DC output |
| Dimension | 289 (W) x 183 (D) x 42 (H) mm |
| Mounting | Desk, Wall mount |
| Operating Temperature | 0 °C ~ 50 °C |
| Storage Temperature | -10 °C ~ 70 °C |
| Relative Humidity | 10% ~ 90% @40 °C, non-condensing |
| Certification | CE, FCC, LVD |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3319 | ANS-9142 | C3436L 4-Core 16GB eMMC, 8x GbE LAN | add to list – ANS-9142 |
| AS1-3318 | ANS-9141 | C3338R 2-Core 16GB eMMC, 8x GbE LAN | add to list – ANS-9141 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| ANS-9A4XS series | BIOS 0.0.6 | 5.38 MB | download – ANS-9A4XS series | BIOS 0.0.6 |
| ANS-9A44S | Datasheet | 420.81 KB | download – ANS-9A44S | Datasheet |
