1U ATX

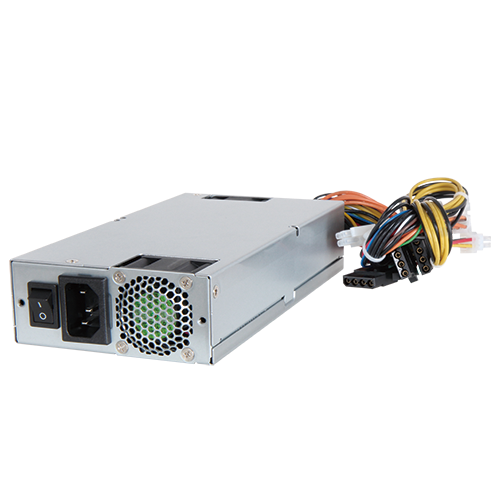

APA-3083
400W 1U ATX Power Supplies
- Full-range AC input: 100 Vac-240 Vac
- Low ripple & noise output
- Support OVP, SCP and OCP
- Safety certifications: CE, FCC, UL, CSA,TUV, CCC
- Dimension: 100 x 40.5 x 190 (mm)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 100 Vac ~ 240 Vac |
|---|---|
| Wattage | 400W |
| Form Factor | 1U |
| MTBF(hrs) | 100,000 @25 °C |
| Temperature/ Humidity | Operating: -10 °C ~ 50 °C, 85%RH Storage: -40 °C ~ 80 °C, 95%RH |
| EMC & Safety | CE, FCC, UL, CSA, TUV, CCC |
| Dimension(WxHxD) | 100 x 40.5 x 190 (mm) |
| +5V | +3.3V -5V +12 V -12 V +5Vsb |
| Max. Load | 16A 14A 0.1A 33A 0.3A 3A 85W Max |
| Min. Load | 0A 0A 0A 0.05A 0A 0A |
| Ripple | 50mv 50mv 100mv 120mv 120mv 50mv |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APA-3083 | APA-3083 | 400W 1U ATX Power Supply | add to list – APA-3083 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| APA-3083 | Datasheet | 452.52 KB | download – APA-3083 | Datasheet |
