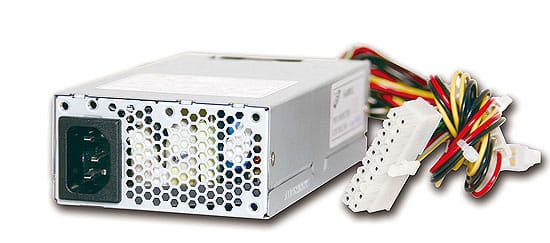

ORION-A1501P
150W Flex form factor power supply with active PFC
- Flex form factor power supply
- Full-range input with active PFC
- Max. 5V output is 13A
- Low noise
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 7.5A@115V, 3.5A@230V |
| Efficiency | > 71% |
| Holdup Time | 16 ms at full load |
| Over Voltage Protection | +5V: 4.75 ~ 5.25V; +3.3V: 3.14 ~ 3.47V; +12V: 11.4V ~ 12.6V |
| Over Power/ Load Protection | Output power over 110% ~ 150% |
| MTBF | >160,000 hrs |
| EMI & Safety Approval | TUV, UL/cUL |
| Temperature/ Humidity | Operating: 0 ~ 40 °C, 20 ~ 90%RH Storage: -20 ~ 60 °C, 5 ~ 95%RH |
| Dimension (WxDxH) | 81.5 x150 x 40.5 mm; 3.2” x 5.9” x 1.6” |
