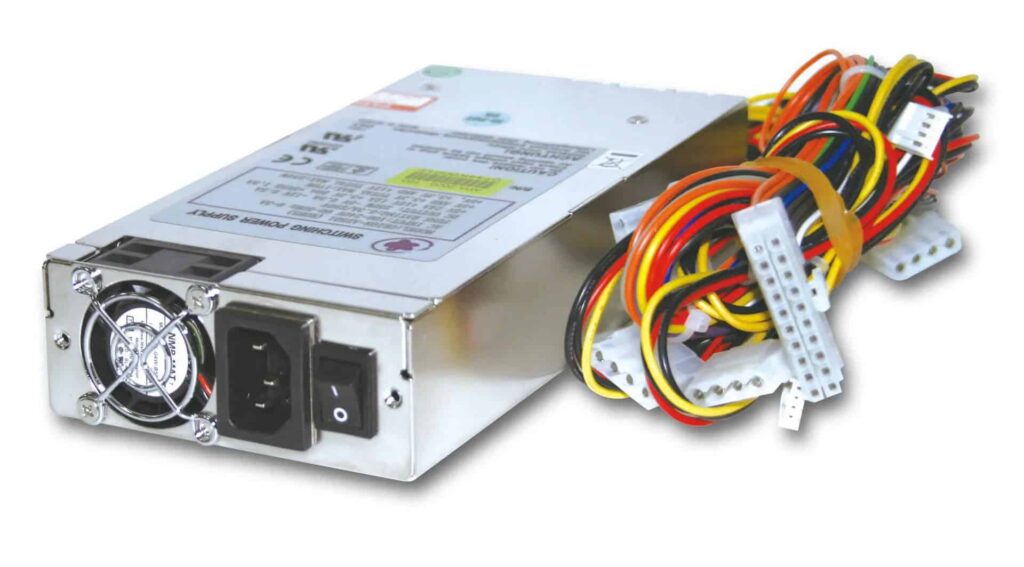

ORION-A2501
250W 1U ATX power supply with active PFC
- Low profile power supply suitable for 1U and node chassis
- Active PFC, full-range input
- Support for Intel ® Pentium ® 4 processor
- Total output power of +5V, +3.3V and +12V is 234W
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 6A@115V, 3A@230V |
| Efficiency | > 65% |
| Holdup Time | 16 ms at full load |
| Over Voltage Protection | +5V: 5.4 ~ 6.5V; +3.3V: 3.9 ~ 4.47V; +12V: 13.6V ~ 15.6V |
| Over Power/ Load Protection | Output power over 110% ~ 160% |
| MTBF | >105,405 hrs |
| EMI & Safety Approval | UL, cUL, TUV, CE, FCC,CCC |
| Temperature/ Humidity | Operating: 5 °C ~ 40 °C, 20% ~ 90%RH Storage: -20 °C ~ 60 °C, 5% ~ 95%RH |
| Dimension (WxDxH) | 100 x190 x 40.5 mm; 3.93” x 7.48” x 1.59” |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ORION-A2501 | Datasheet | 617.04 KB | download – ORION-A2501 | Datasheet |
