- Portwell

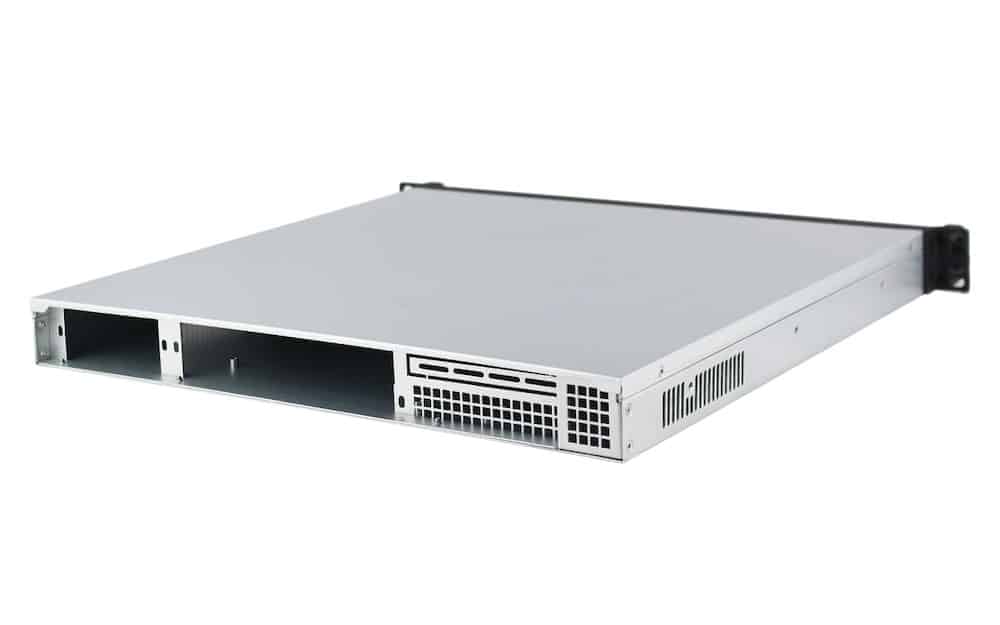

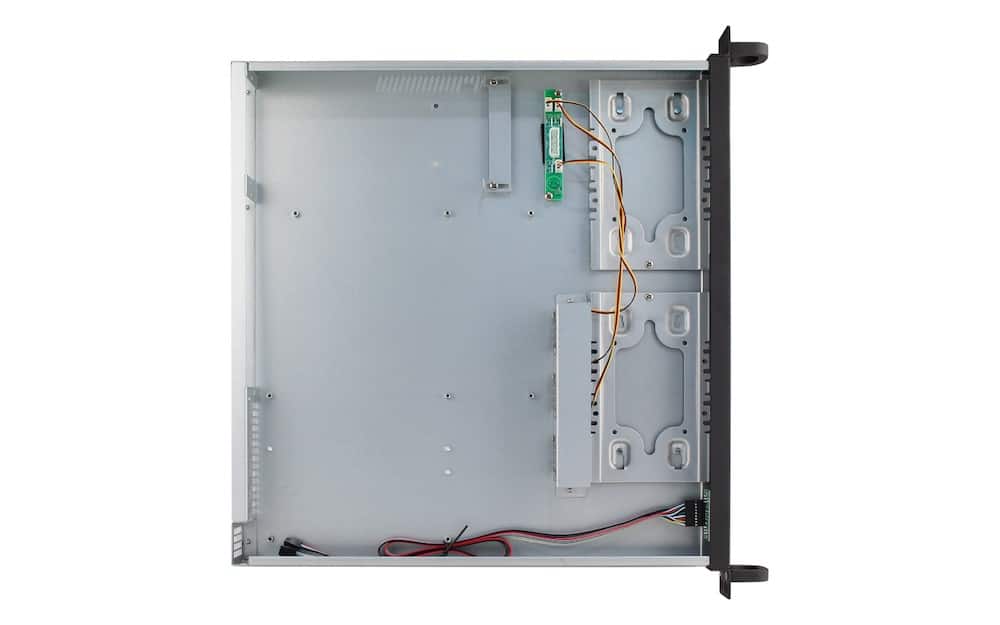

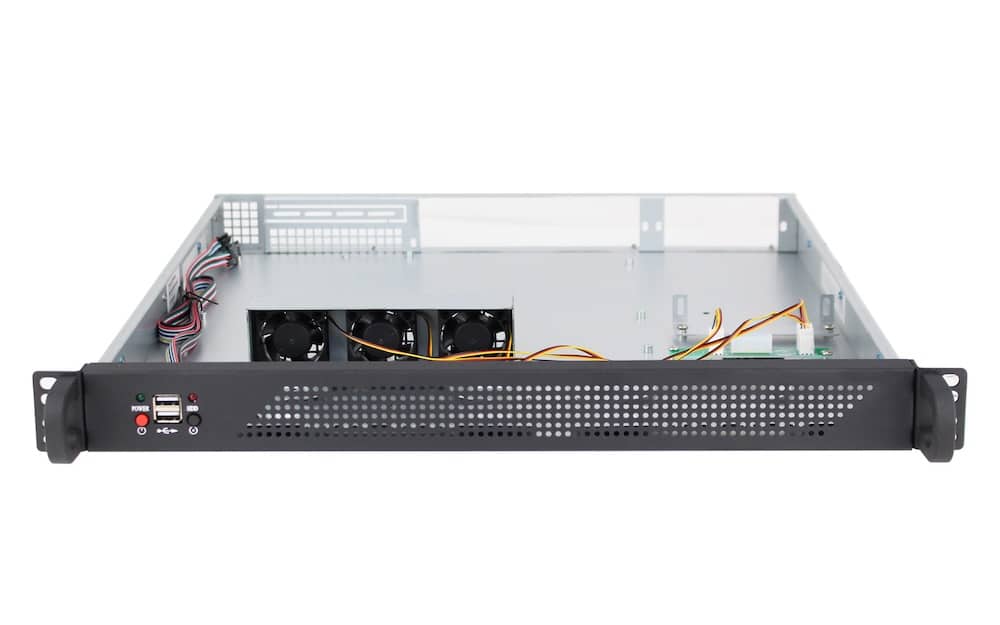

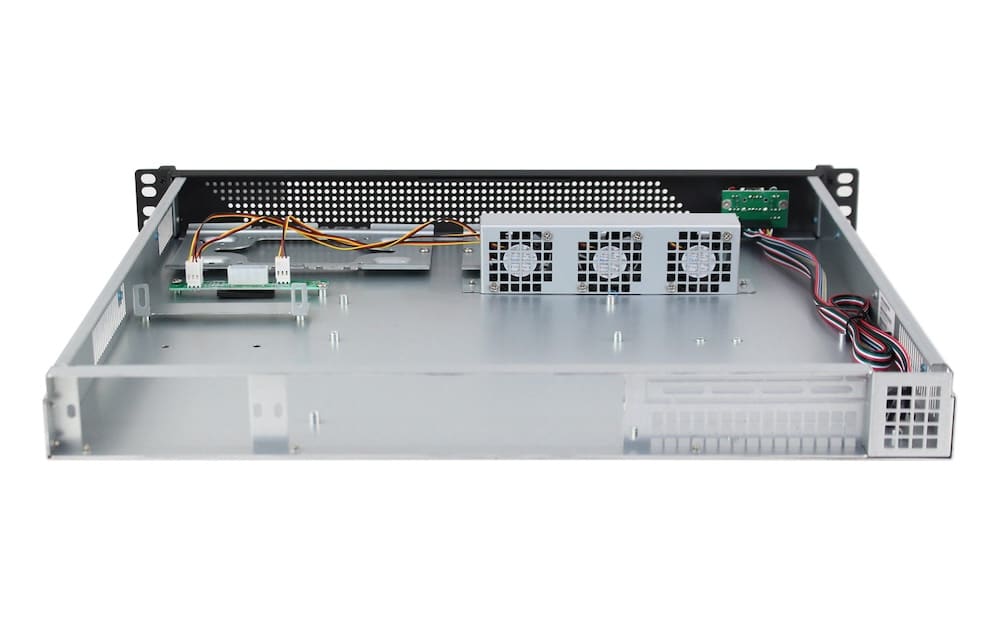

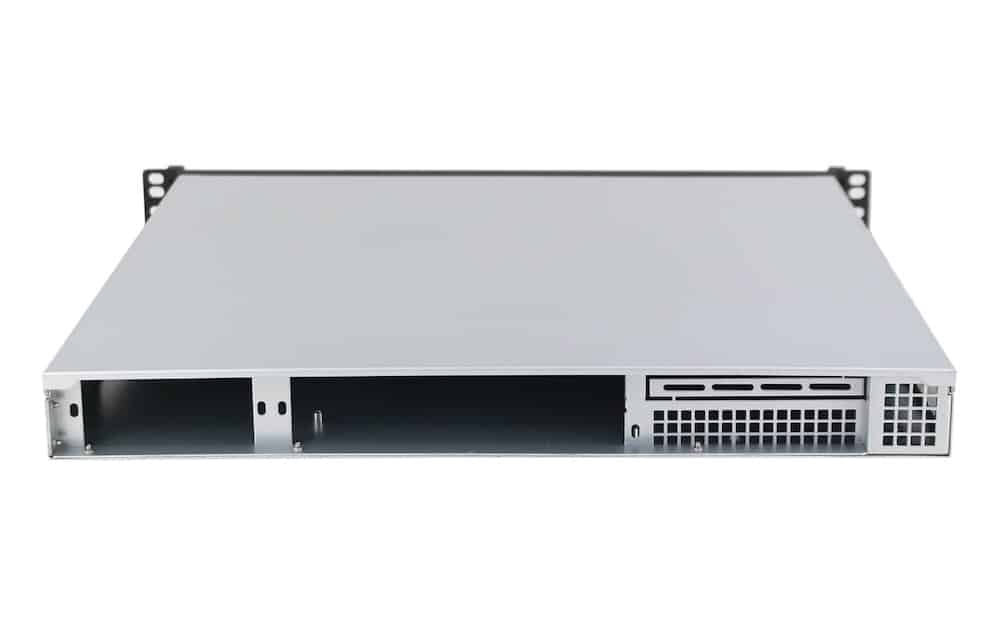

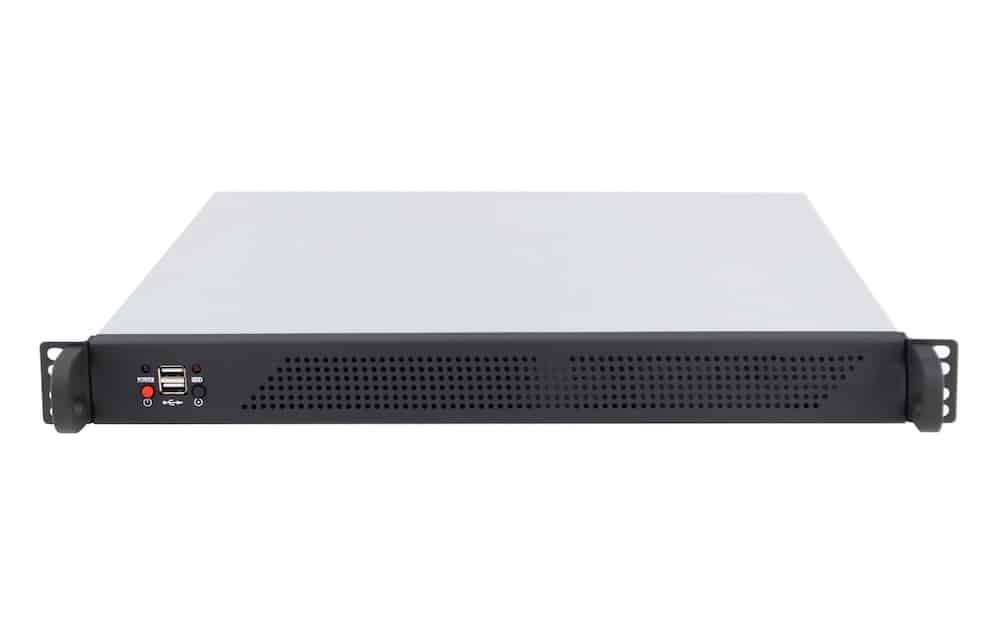

AREMO-1192-MX
19” 1U industrial rack-mount chassis
- 2x 3.5” HDD Drive bays (Or 2x 2.5” HDD/ SSD)
- Two 4cm ball-bearing cooling fans for better ventilation
- Two USB2 ports on the front panel
- All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel with aluminum front panel |
|---|---|
| Drive | Bay2x 3.5" HDD (or2x 2.5" HDD/SSD) |
| Indicator | 1x Power On/Off LED,1x HDD LED |
| Switch | 1x Power On/Off,1x System reset |
| Connector | 2x USB ports on the front panel |
| Standard | Color Black |
| Cooling | Fan Two 4cm ball-bearing cooling fans |
| Dimension | 420 x427 x 45 mm |
| Weight | 5.2 Kg |
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 50 ~ 60Hz |
| Input Current | 10A@110V, 5A@240V |
| Efficiency | > 80% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | CE, FCC |
| Operating Temperature | 0 °C ~ 50 °C |
| Storage Temperature | 0 °C ~ 70 °C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Vibration | 7 ~ 2000 Hz: 1.5g acceleration 5 ~ 7 Hz: 0.5” double amplitude displacement |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-1192-MX | 19” 1U rack-mount chassis for M/B | add to list – AREMO-1192-MX |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| AREMO-1192-MX | Datasheet | 788.67 KB | download – AREMO-1192-MX | Datasheet |
