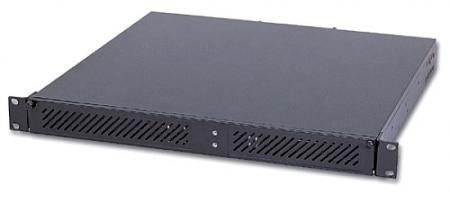

PRC-1194
19″ 1U Height industrial rack-mount P4 chasis
- Single power supply with higher +12V output for Pentium ® 4 processor
- Cooling tunnel design for expiring heatgenerated by CPU
- Power cable routed beneath the cooling tunnel to avoid disturbance of air path
- Two PCI expansion slots for adding morefunctions to system
Platform Overview
About this series
| PRC-1194-03P2X-2501 | 19” 1U rack-mount chassis with 3-slot (2xPCI) PICMG backplane and 250W PFC power supply |
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel |
|---|---|
| Drive Bay | External: NB CD-ROM x1 (or equivalent CD-RW / DVD-ROM) + NB FDD x1 Internal: 3.5” HDD x2 |
| Air Filter | N/A |
| Cooling Fan | One 12cm ball-bearing fan |
| Indicator | Power on/off x1, HDD x1 |
| Switch | Power on/off x1, System reset x1 |
| Speaker | N/A |
| Connector | Two USB connectors on the front panel, reserved one COM port cutout |
| Standard Colo | Black |
| Backplane | PBP-03P2X: 3-slot (2xPCI) PICMG backplane |
| Dimension | 481(W) x 429(D) x 44(H) mm; 19”(W) x 18.7”(D) x 1.7”(H) |
| Weight | Net: 10 kg (22.05 lb); Gross: 13 kg (28.67 lb) |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PRC-1194 | Datasheet | 118.35 KB | download – PRC-1194 | Datasheet |
