- EOL (End of Life)

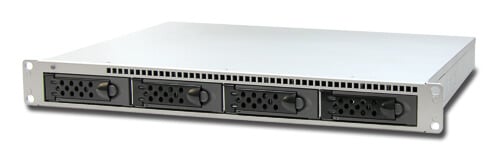

WADE-1042
1U Height Bare Bone server with four drive bays for RAID and two expansion slots
- Bare-bone s chassis for Mini-ITX board
- Compact, slim and stylish ID design
- Four 3.5” HDD bays and 180W PSU
- Two PCI expansion slot
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 5A@115V, 3A@230V |
| Efficiency | >68% |
| Holdup Time | 20ms. at full load@25 °C |
| Over Voltage Protection | +5V@5.5 ~ 6.8V; +3.3@3.7 ~ 4.8V; +12V@13.4 ~ 15.6V |
| Over Power/Load Protection | Output power over to 110% ~ 140% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | UL, TUV, CE, FCC, CB, CSA, SEMKO, FIMKO, NEMCO, DIMCO |
| Temperature/Humidity | Operating: 0 ~ 50 °C, 20 ~ 85%RH Storage: -40 ~ 70 °C, 10m ~ 90%RH |
| Operation Temperature | 0 ~ 50 °C |
| Dimension (WxDxH) | 150 x 81.6 x 40.6 mm; 5.9” x 3.2” x 1.6” Mechanical & Environmenal |
| Dimension | 443 x387 x 44 (mm) |
| Weight | 6.5 Kg |
| Storage Temperature | 20 ~ 80 °C |
| Relative Humidity | 5 ~ 95% non-condensing |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-1042 | Datasheet | 576.02 KB | download – WADE-1042 | Datasheet |
