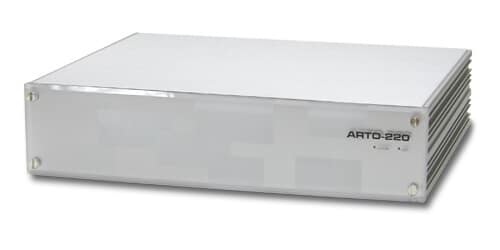

ARTO-220-ITX
1.5U Advanced, Stylish and Compact ARTO-220-ITX Mini-ITX Bare-Bones Chassis
- Bare-bones chassis for Mini-ITX board
- Compact, slim and stylish ID design
- One 3.5” HDD bay and 250W PSU
- One PCI expansion slot
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 5A@115V, 3A@230V |
| Efficiency | >68% |
| Holdup Time | 17ms. at full load@25 °C |
| Over Voltage Protection | +5V@5.7 ~ 6.5V; +3.3@3.7 ~ 4.5V; +12V@13.3 ~ +5.6V |
| Over Power/Load Protection | Output power over to 110% ~ 160% |
| MTBF | 105,405 hrs |
| EMI & Safety Approval | UL, cUL, TVU, CE, FCC |
| Temperature/Humidity | Operating: 0 ~ 50 °C, 20 ~ 85%RH Storage: -20 ~ 70 °C, 10m ~ 90%RH |
| Operation Temperature | 0 ~ 50 °C |
| Dimension | (WxDxH)100 x 190 x 40.5 mm; 3.9” x 7.5” x 1.6” Mechanical & Environmenal |
| Dimension #2 | 347 x241 x 74 (mm) |
| Weight | 3.5 Kg |
| Storage Temperature | -20 ~ 80 °C |
| Relative Humidity | 5 ~ 95% non-condensing |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ARTO-220-ITX | Datasheet | 565.12 KB | download – ARTO-220-ITX | Datasheet |
