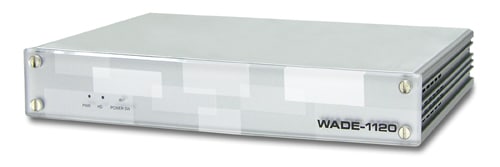

WADE-1120A
The fan-less compact Mini-ITX Bore Bone Chassis
- Integrated with WADE-8041 or similar Mini-ITX board
- Small form factor with fan-less ventilation mechanism
- Rugged design for harsh environment
- Unique tool-free design for quick top cover release
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Maximum Output | 55W ATX power supply |
|---|---|
| Input Voltage | 90V ~ 265V AC, full range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 2.0A(RMS)@115V, 1.0A(RMS)@230V |
| Efficiency | >74% |
| Holdup time | 17ms. at 115V/60Hz or 230V/50Hz |
| Over Voltage Protection | 3.3V@3.5 ~ 4.5V; 5V@5.5 ~ 6.82V; 12V@13.4 ~ 16.5V |
| MTBF | 121,330 hrs |
| Operation Temperature | 0 ~ 50 °C |
| Certification | UL, cUL, TUV, CE, FCC |
| Storage Temperature | -20 ~ 80 °C |
| Relative Humidity | 5 ~ 95% non-condensing |
| Dimension (WxDxH) | 183 x50 x 37.6 mm; 7.2” x 2” x 1.5” Mechanical & Environmenal |
| Dimension | 268 x196 x 44 (mm) |
| Weight | 2.2 Kg |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-1120A | Datasheet | 445.08 KB | download – WADE-1120A | Datasheet |
