- Portwell

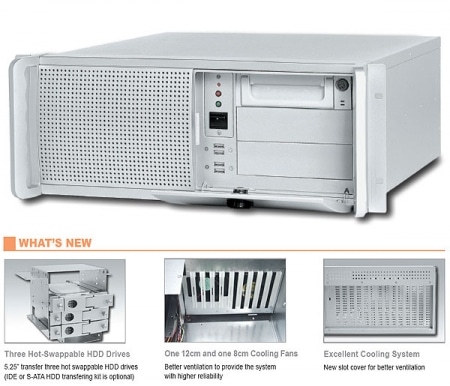

AREMO-4185
19” 4U industrial rack-mount chassis
- Three 5.25″ and two internal 3.5″ HDD drive bays for RAID 0, 1, 5 & CD-ROM
- Four USB ports on the front panel
- Two ball-bearing cooling fans (12 cm x1 + 8 cm x1) for better ventilation
- Three card retainer positions
- One modularized function panel for single (default) and dual (optional) systems
- PS/2 redundant power supply installable
- ATX M/B applicable, especially for large AT size M/B
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel with aluminum front panel |
|---|---|
| Drive Bay | External: 5.25”x3 Internal: 3.5” HDD x2 |
| Card Retainer | Three locations for one card retainer |
| Air Filter | One replaceable air filter |
| Cooling Fan | One 12cm and one 8cm ball-bearing cooling fans |
| Indicator | Power on/off x1, HDD x1 |
| Switch | Power on/off x1, System reset x1 |
| Speaker | One 8Ω speaker |
| Connector | Four USB ports on the front panel |
| Standard Color | Silver, Black |
| Backplane | PBP-14I: 14-slot ISA backplane PBP-14AC: 14-slot (12xPCI) active PICMG backplane PBP-14A7: 14-slot (7xPCI) active PICMG backplane PBP-14P4: 14-slot (4xPCI) PICMG backplane PBP-13D4: 13-slot dual-system PICMG backplane |
| Dimension | 482(W) x 461(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H) |
| Weight | Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb) |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-4185-14P4-D3501P | 19” 4U rack-mount chassis with 14-slot (4xPCI) PICMG backplane and 350W active PFC ATX power supply | add to list – AREMO-4185-14P4-D3501P | |
| AREMO-4185-14A7-D3501P | 19” 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 350W active PFC ATX power supply | add to list – AREMO-4185-14A7-D3501P | |
| AREMO-4185-MX-D3501P | 19” 4U rack-mount chassis for ATX motherboard with active 350W ATX, PFC power supply | add to list – AREMO-4185-MX-D3501P | |
| AREMO-4185-14A7-D3202P | 19” 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 320W active PFC redundant power supply | add to list – AREMO-4185-14A7-D3202P |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| AREMO-4185 | Datasheet | 921.64 KB | download – AREMO-4185 | Datasheet |
