- Portwell

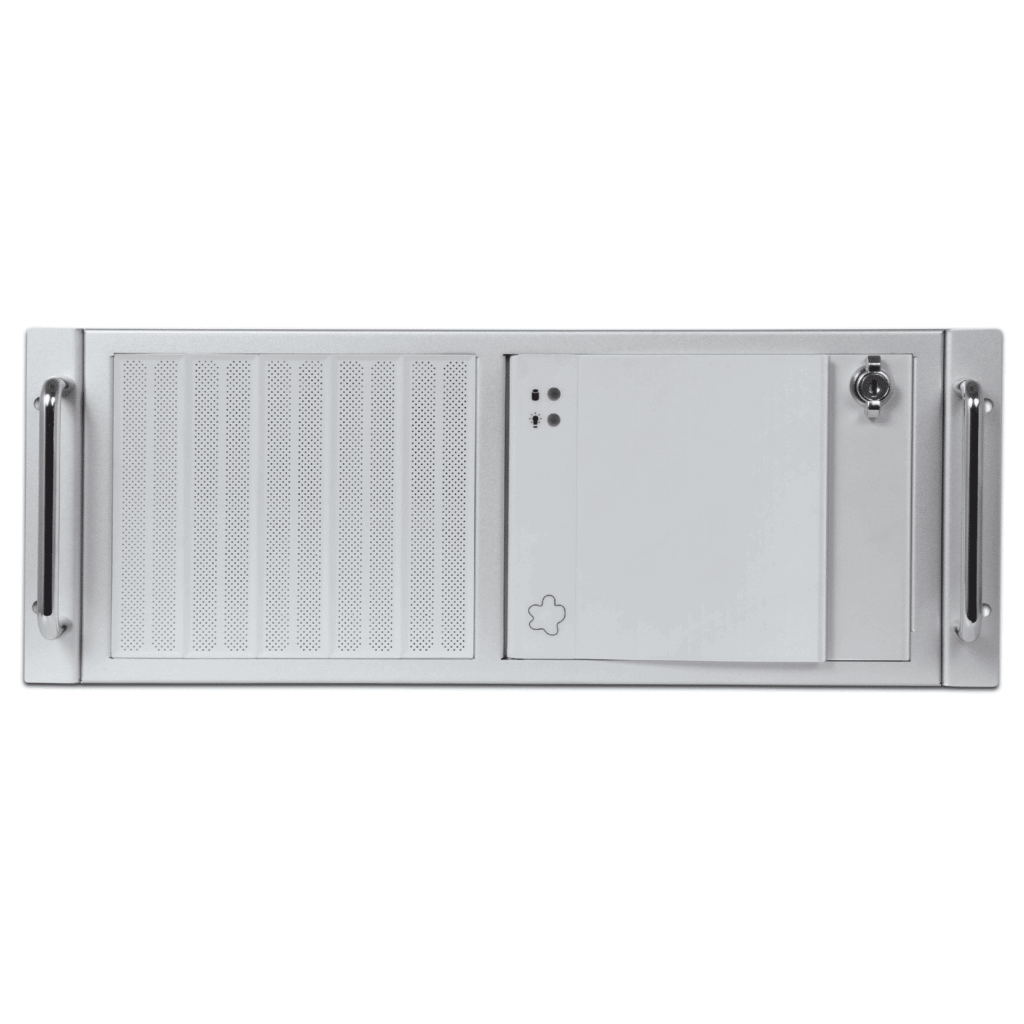

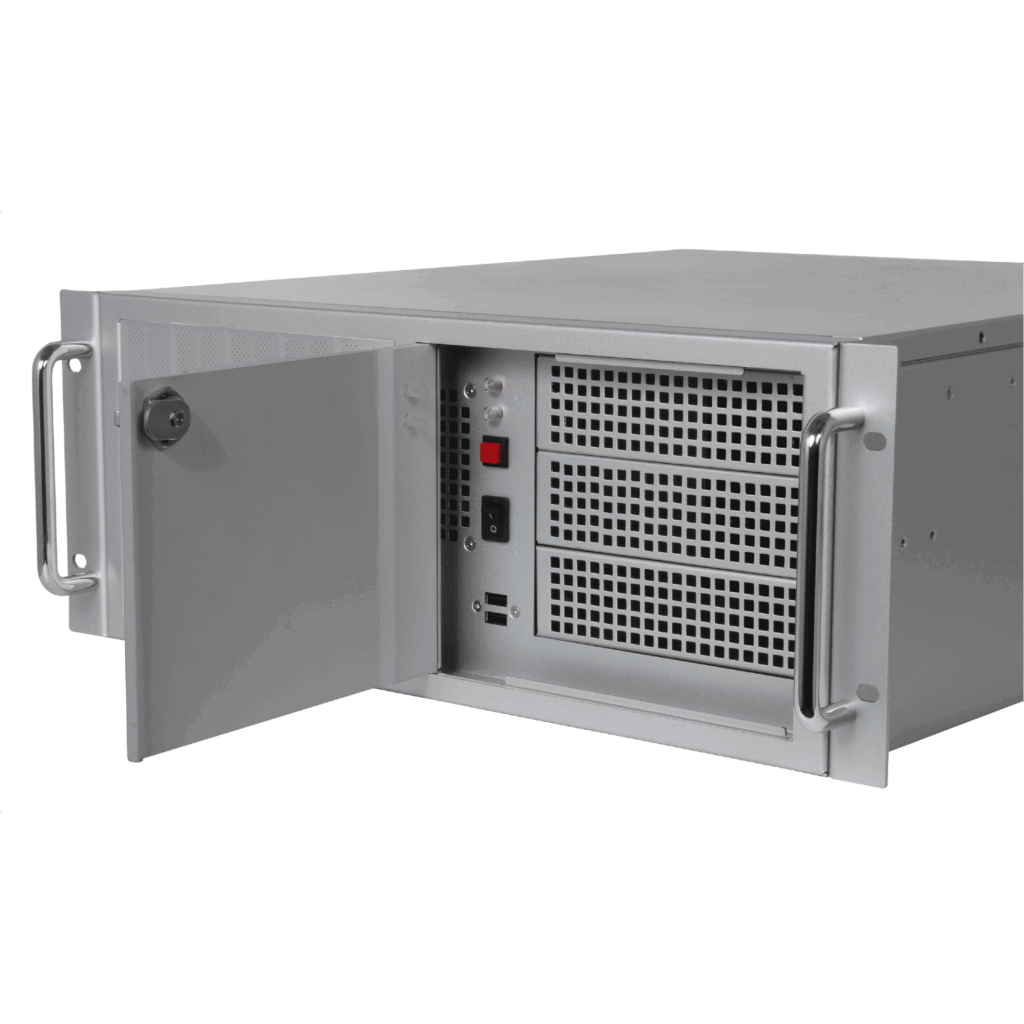

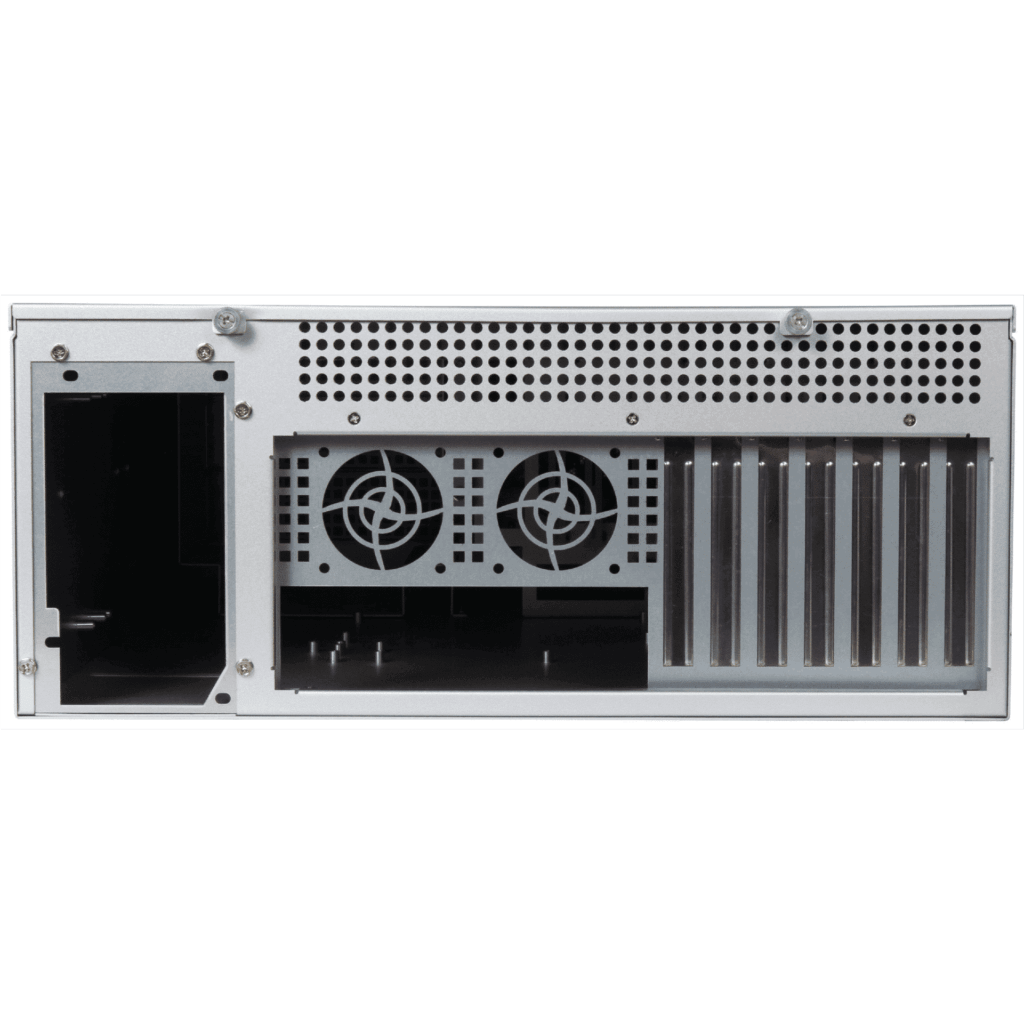

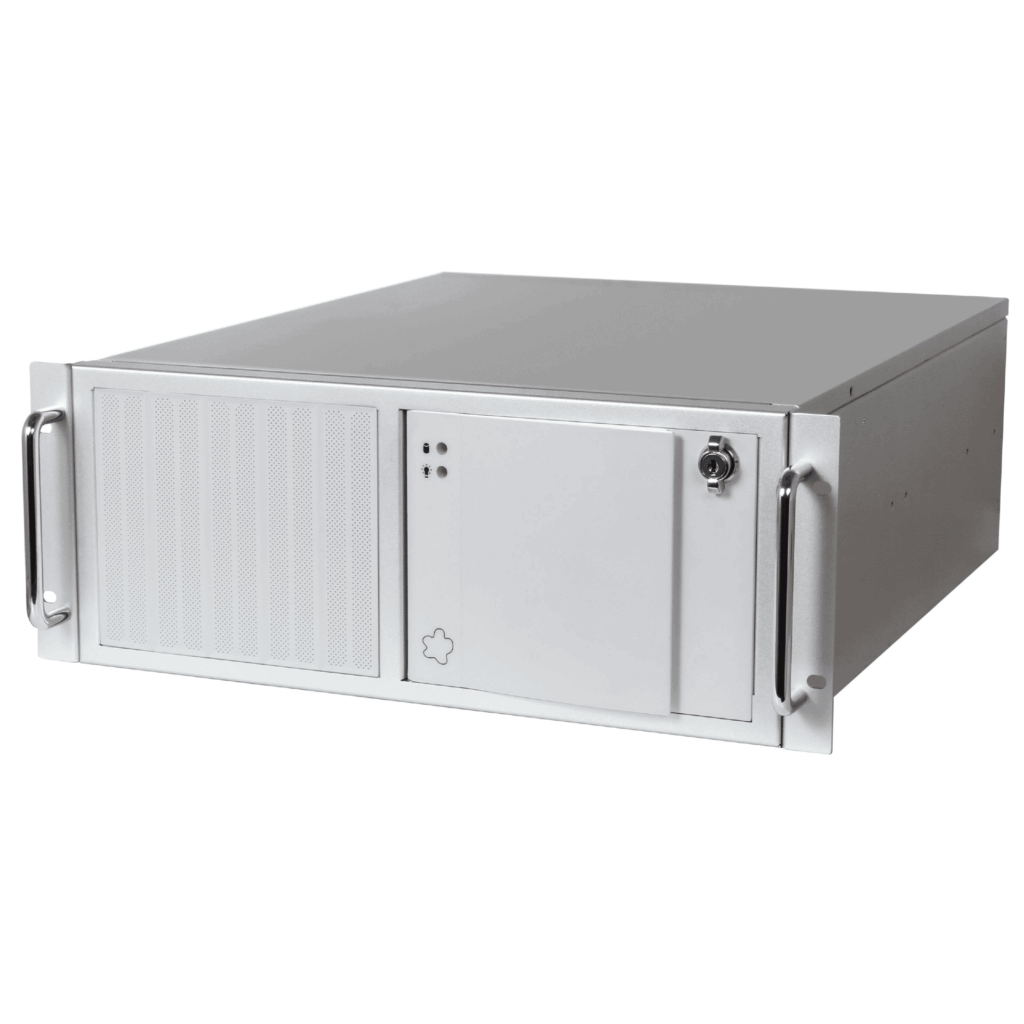

AREMO-4197
19″ 4U industrial rack-mount chassis
- Two USB ports on the front panel
- 5.25” x3 + 3.5” x1 drive bays for RAID 0, 1, 5 & CD-ROM
- Traditional rack-mount handles
- PS/2 or Mini-reduncant power supply installable
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| TYPE | 4U |
|---|---|
| SLOT | 14 ATX |
| ORDERING GUIDE | AREMO-4197, AREMO-4197/B, AREMO-4197-MX, AREMO-4197-MX/B |
| BP MODEL | PBPE-14AD64 PBPE-13A8 PBPE-13A4 PBPE-12AA64 PBPE-12A9 PBPE-12P4 PBPE-11A3 |
| PICMG | 1.3 1.3 1.3 1.3 1.3 1.3 1.3 |
| PCIe | 2 4 8 1 2 8 8 |
| PCI/PCI-X | 3/8 8/0 4/0 2/8 9/0 4/0 3/0 |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-4197 | 19” 4U rack-mount chassis for PICMG backplane | add to list – AREMO-4197 | |
| AREMO-4197/B | 19” 4U black rack-mount chassis for PICMG backplane | add to list – AREMO-4197/B | |
| AREMO-4197-MX | 19” 4U rack-mount chassis for ATX M/B | add to list – AREMO-4197-MX | |
| AREMO-4197-MX/B | 19” 4U black rack-mount chassis for ATX M/B | add to list – AREMO-4197-MX/B |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| AREMO-4197 | Datasheet | 1.23 MB | download – AREMO-4197 | Datasheet |
