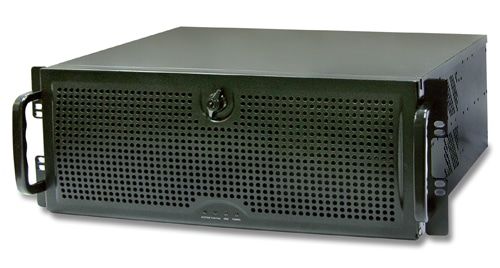

AREMO-4196
The Best Cost-Performance 19” 4U Height Intel® Desktop Mother Board Based Rack-mount Computer
- Three 5.25” and one external 3.5” HDD drive bays for RAID 0, 1, 5 & CD-ROM
- Two USB ports on the front panel
- Dual 12cm ball-bearing cooling fans for better ventilation
- Two card retainer positions
- PS/2 or redundant power supply installable
- ATX M/B applicable (AREMO-4196-MX)
- Easily detached and washable air filter
- Equipped with fan control card to detect fan failure
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel with aluminum front panel |
|---|---|
| Drive Bay | Internal: 5.25” x3, 3.5” HDD x1 Internal: 3.5” x2 |
| Card Retainer | Three locations for one card retainer |
| Air Filter | Two replaceable air filter |
| Cooling Fan | Two 12cm ball-bearing cooling fans |
| Indicator | Power on/off x1, HDD x1 |
| Switch | Power on/off x1, System reset x1 |
| Speaker | One 8Ω speaker |
| Connector | Two USB ports on the front panel |
| Standard Color | Silver, Black |
| Backplane | PBPE-13A8:14-slot [PCIe (4), PCI (8), PCI-X (0)] active PICMG1.3 backplane PBPE-13A4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] active PICMG1.3 backplane PBPE-12A9: 14-slot [PCIe (2), PCI (9), PCI-X (0)] active PICMG1.3 backplane PBPE-12P4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] PICMG 1.3 backplane PBPE-11A3: 14-slot [PCIe (8), PCI (3), PCI-X (0)] active PICMG1.3 backplane |
| Dimension | 482(W) x 481(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H) |
| Weight | Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb) |
- AREMO-4196/B 19” 4U black rack-mount chassis for PICMG Version
- AREMO-4196-MX 19” 4U rack-mount chassis for M/B Version
- AREMO-4196-MX/B B19” 4U black rack-mount chassis for M/B Version
