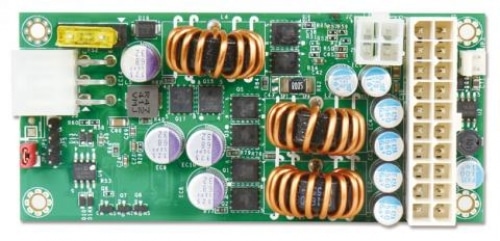

GADIWA-B9120
120W DC/DC 9V~29V Input/ATX output, Board Type Converter
- Compact and user-friendly design for installation and maintenance
- Small size for 1U or higher system to save space
- Suitable for Car PC, Steamer, Truck, Boat and Adapter
- Special design for delay-time
- Socket type fuse protection
- -40°C to 75°C wide temperature support
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 9V ~ 29V |
|---|---|
| Output | 120Watts / 160 Watts Peak |
| Efficiency | >90% @ 12V input, 120W output |
| MTBF | 410,386hrs @ 55 °C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | 9V ~ 29V 6 pin (P/N: B6902060) |
| Output Connector | ATX 20 pin + 12V 4 pin |
| Operation Temperature | -40 °C ~ 75 °C |
| Dimension (WxDxH) | 100 x45 x 22.5 mm |
