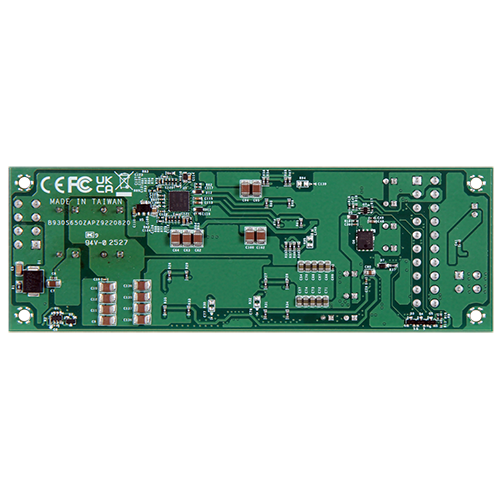

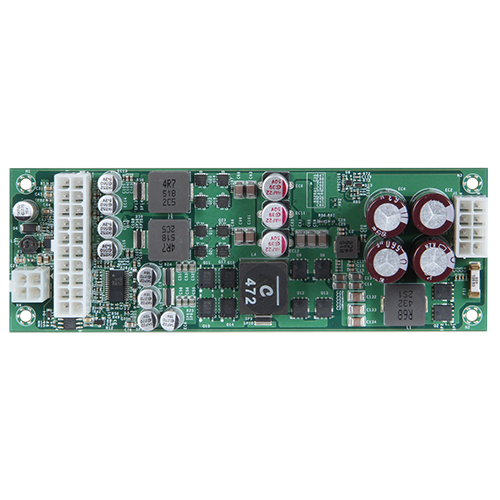

GADIWA-B9220
220W DC/DC 9-36V input/ATX output Board type Converter
- Compact design with simplified installation and maintenance.
- 9-36V/Wide-input, plug into the ATX connector with board output.
- Small size for 1U or higher system to save space.
- CE/FCC compliant; Industrial EMC: EN 61000-6-2, EN 61000-6-4.
- Wide operating temperature range from -40°C to 80°C.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 9 VDC-36 VDC |
|---|---|
| Wattage | 220W |
| Form Factor | Power Baord |
| MTBF(hrs) | 420,000 @55 °C |
| Temperature/ Humidity | Operating: -40 °C ~ 80 °C, 5% ~ 95%RH Storage: -40 °C ~ 85 °C, 5% ~ 95%RH |
| EMC & Safety | CE, FCC, EN 61000-6-2 (Industrial Immunity), EN 61000-6-4 (Industrial Emission) |
| Dimension(WxHxD) | 150 x27 x 51 (mm) |
| +12 V | +5V +5Vsb +3.3V +12 V |
| Max. Load | 15A 10A 2A 8A 0.1A 220W |
| Min. Load | 0A 0A 0A 0A 0A |
| Ripple | 120mv 50mv 50mv 50mv 120mv |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| APZ-3063 | GADIWA-B9220 | 220W DC/DC 9-36V input/ATX output Board type Converter | add to list – GADIWA-B9220 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| GADIWA-B9220 | Datasheet | 760.51 KB | download – GADIWA-B9220 | Datasheet |
