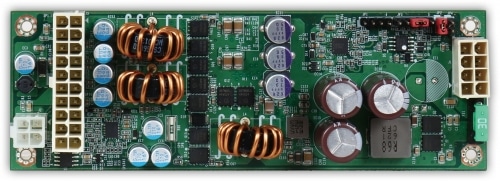

GADIWA-B9180
180W DC/DC 6~36V input/ATX output Board type Converter
- Compact and user-friendly design for installation and maintenance
- 6~36V/Wide-input, plug into the ATX connector with board output
- Small size for 1U or higher system to save space
- Suitable for Car PC, Steamer, Truck, Boat and Adapter
- Socket type fuse protection
- -40°C to 75°C wide temperature support
Platform Overview
About this series
GADIWA-B9180 is a DC to DC wide voltage input board type converter. It normally support continuous 180 Watts
and peak 200 Watts.
GADIWA-B9180 can save more space and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested byautomatic production line; therefore, it can provide high quality and better performance.
| APZ-3034 | GADIWA-B9180, 180W DC/DC 6V~36V/wide-input.ATX/output.Wide Temperature.Board Type Converter |
| APZ-3041 | GADIWA-B9180-BP, 180W DC/DC 6V~36V/wide-input.ATX/output.Wide Temperature.Board Type Converter, bulk packing |
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 6V ~ 36V |
|---|---|
| Output | 180Watts / 200 Watts Peak |
| Efficienc | > 90% @12V input, 180W output, 25 °C |
| MTBF | 420,000hrs @ 55 °C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | 6V ~ 36V 8 pin |
| Output Connector | ATX 20 Pin + 12V 4 Pin |
| Operation Temperature | -40 °C to 75 °C |
| Dimension (WxDxH) | 150 x51 x 25 mm |
