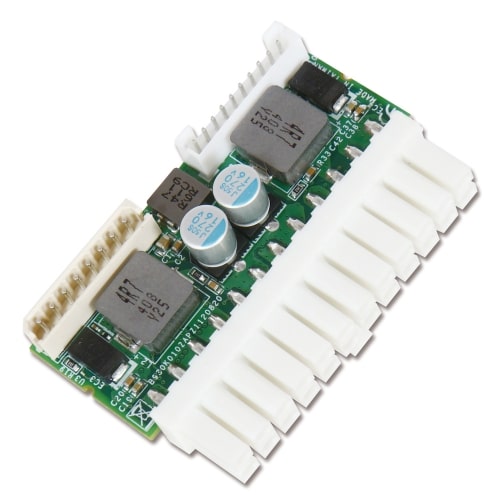

GADIWA-M1120
120W DC/DC 12V input/ATX output Socket type Converter
- 12V DC/input, plug directly into the ATX connector with socket output
- Compact and user-friendly design for installation and maintenance
- Fan-less design for mission-critical application
- -40°C to 75°C wide temperature support
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 12V |
|---|---|
| Output | 120Watts / 160 Watts Peak |
| Efficiency | > 90% @12V input, 120W output, 25 °C |
| MTBF | 420,000hrs @ 55 °C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | 12V / DC Jack |
| Output Connector | ATX 24Pin Connector |
| Operation Temperature | -40 °C ~ 75 °C |
| Dimension (WxDxH) | 35 x56 x 23.5 mm |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| GADIWA-M1120 | Datasheet | 573.59 KB | download – GADIWA-M1120 | Datasheet |
