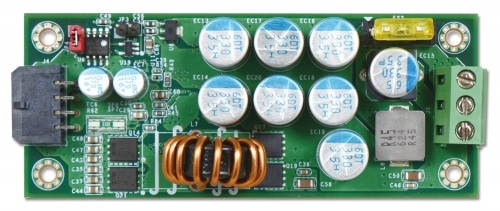

GADIWA-R9142
140W DC/DC 9~32V input/ 24V output Board type Regulator
- 9~32V/Wide-input, 24V/output Regulator with ATX connector with board output
- Compact and user-friendly design for installation and maintenance
- Fan-less design for mission-critical application
- -40°C to 75°C wide temperature support
Platform Overview
About this series
GADIWA-R9142 is a DC to DC 9V~32V input to 24V output board type Regulator. It normally support continuous 140 Watts and peak 160 Watts.
GADIWA-R9142 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance. production line; therefore, it can provide high quality and performance.
| APZ-3044 | GADIWA-R9142, 140W 9V~32V input to 24V output DC to DC Power module.Wide Temperature |
| APZ-3045 | GADIWA-R9142, 140W 9V~32V input to 24V output DC to DC Power module.Wide Temperature, bulk packing |
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 9V ~ 32V |
|---|---|
| Output | 24V 140Watts / 160 Watts Peak |
| Efficiency | 95% @24V, 5.833A output, 25 °C |
| MTBF | 420,000hrs @ 55 °C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | 9V ~ 32V 3 pin TBC |
| Output Connector | Mini-Fit 8 pin |
| Operation Temperature | -40 °C ~ 75 °C |
| Dimension (WxDxH) | 93.4 x38 x 20 mm |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| GADIWA-R9142 | Datasheet | 736.55 KB | download – GADIWA-R9142 | Datasheet |
