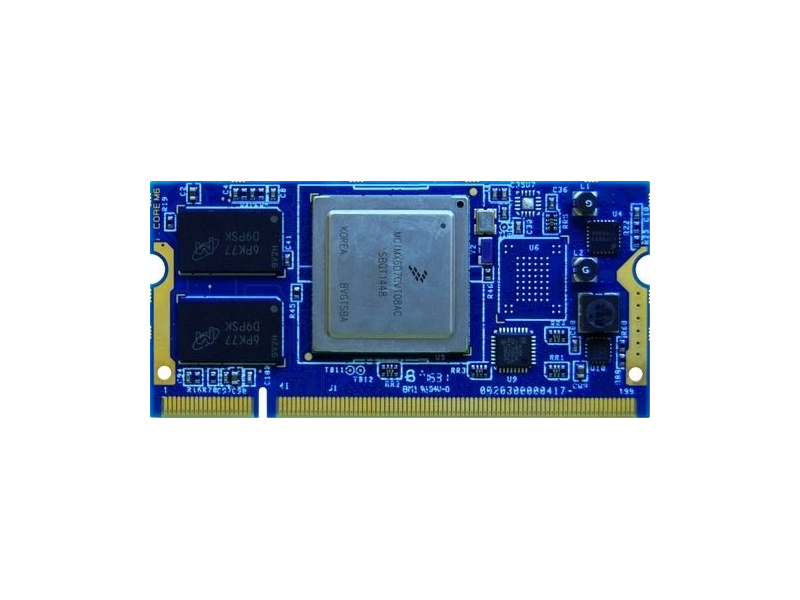

i.Core 1.5 MX6
Access technical documents, software, and support resources.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX6 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to4 x Cortex-A9@800MHz |
| Cores #3 | 1, 2, 4 cores |
| Memory | DDR3@1066MTs |
| Memory #2 | 512MB up to 2GB |
| Graphics & AI | Up to 4 individual displays VPU—Video Processing Unit IPU—Image Processing Unit (2 IPUs) GPU3D—3D Graphics Processing Unit (OpenGL ES 2.0) GPU2D—2D Graphics Processing Unit (BitBlt) GPUVG—OpenVG 1.1 Graphics Processing Unit (Dual/Quad Only) ASRC—Asynchronous Sample Rate Converter |
| Video Interfaces | HDMI, LVDS, Parallel RGB |
| Video Processing Unit Capabilities | Up to 1920x1200 |
| Mass Storage | eMMC |
| Mass Storage #2 | EMMC |
| Networking | 1x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | 1 |
| PCIe #2 | 1 x PCIe interface |
| Audio | 1 x I2S interface |
| Peripheral Interfaces | 2x I2C1x PWM (Up to 4)3x UART (Up to 4)2x CAN Bus2x SDIO interfaces JTAG interface 8 bit CSI INPUT MIPI-CSI INPUT (Up to 3 SPI) |
| Power Supply | single 5V |
| Operating System | Linux |
| Operating System #2 | Android |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCN_1503-2.pdf | 74.66 KB | download – PCN_1503-2.pdf |
