- Engicam

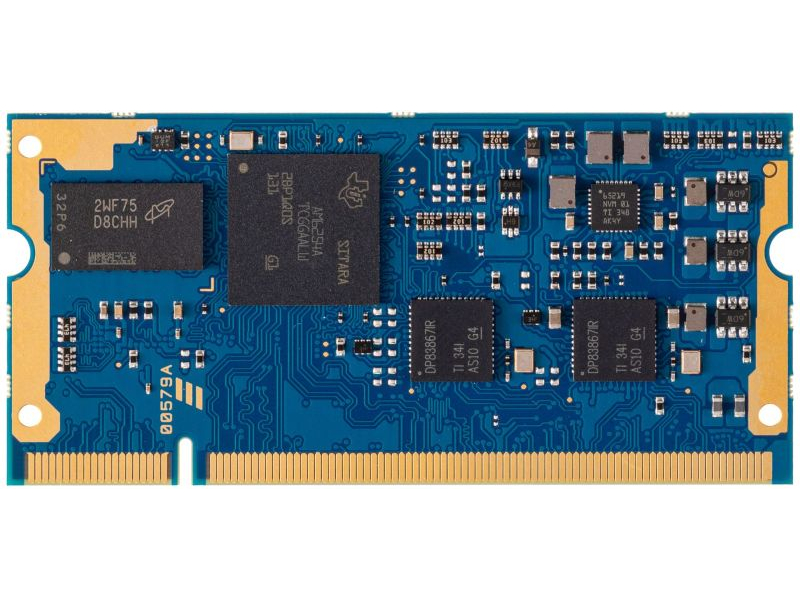

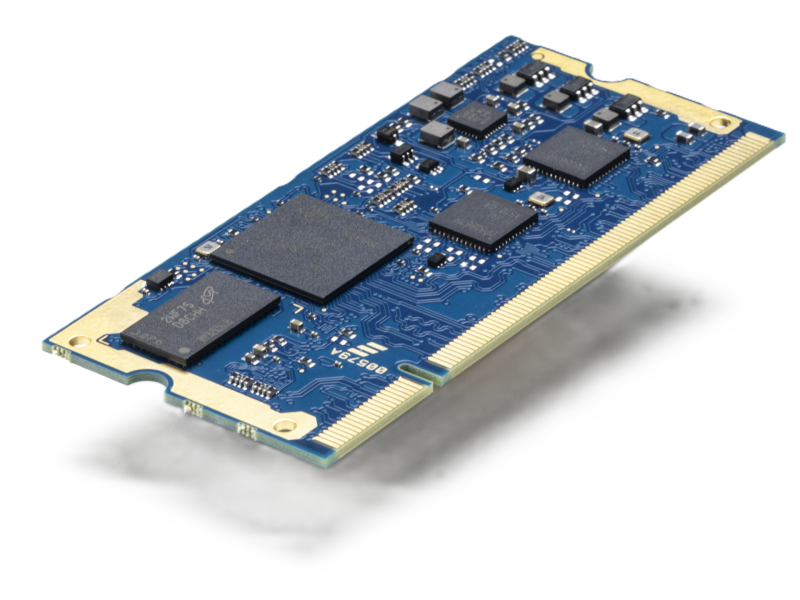

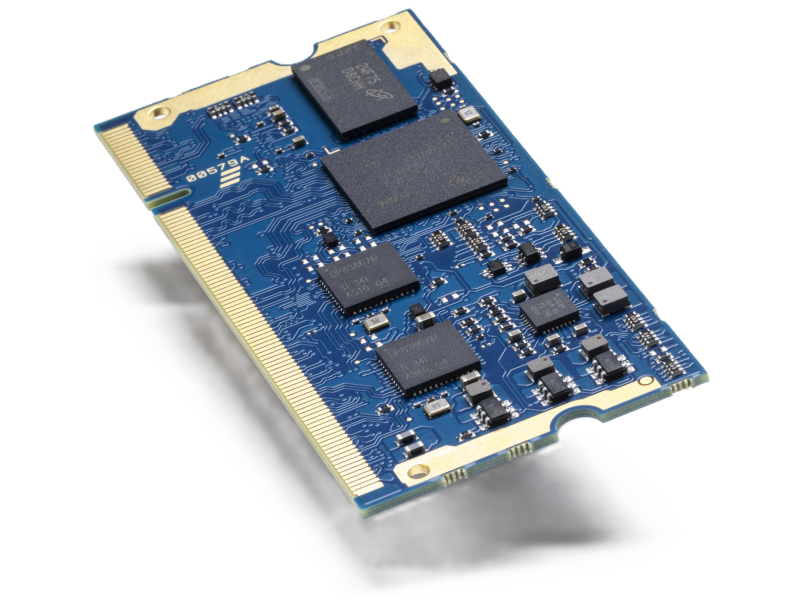

i.Core AM62x
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | AM62x Sitara |
|---|---|
| CPU #2 | Manufacturer: Texas Instruments |
| CPU #3 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem up to 1.4 GHz and Single-core Cortex®-M4F MCU @ 400 MHz. |
| Memory | DDR4@1600MTs |
| Memory #2 | 1GB up to 2GB |
| Graphics & AI | 3D GPU, OpenGL ES 3.1 and Vulkan 1.2 |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board |
| Networking | 2x 1Gb Ethernet |
| USB | 2x USB2 |
| PCIe | NO |
| Audio | I2S interface |
| Peripheral Interfaces | 3x UART (Up to 8)1x MCU UART (Up to 2)3x I2C2x SPI (Up to 3) JTAG1x MCAN1x MCU CAN (Up to 2)2x SDIO GPIOs 4-lane MIPI-CSI |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 67.6 x 32 mm |
| Product availability | 2033 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_AM62_Flyer.pdf | 295.79 KB | download – i.Core_AM62_Flyer.pdf |
