- Engicam

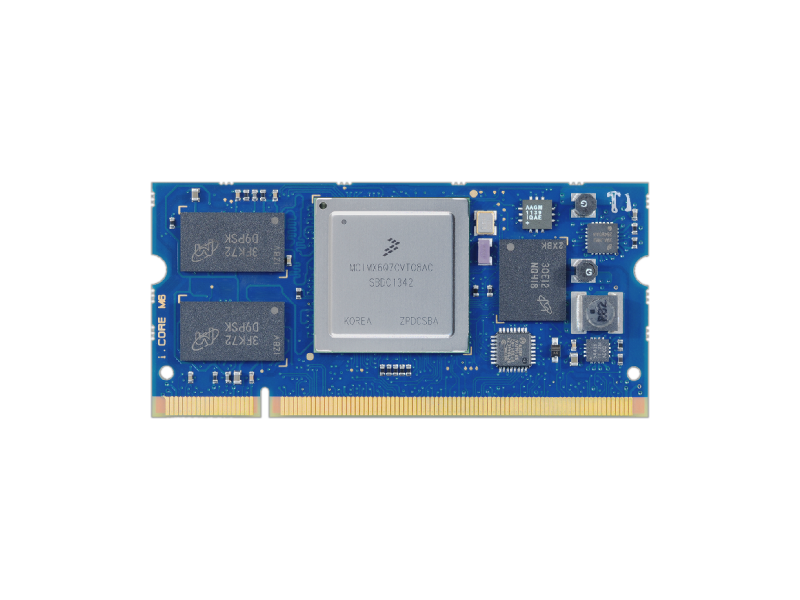

i.Core MX6
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX6 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to4 x Cortex-A9@800MHz |
| Cores #3 | 1, 2, 4 cores |
| Memory | DDR3L@1066MTs |
| Memory #2 | 256MB up to 2GB |
| Graphics & AI | Up to 4 individual displays VPU, 2 IPUs, OpenGL ES 2.0 GPU2D—BitBlt, GPUVG—OpenVG 1.1 Unit (Dual/Quad Only), ASRC |
| Video Interfaces | HDMI, LVDS, Parallel RGB |
| Video Processing Unit Capabilities | Up to 1920x1200 |
| Mass Storage | SATA (Dual/Quad Only), Nand Flash |
| Mass Storage #2 | EMMC, NAND, SATA |
| Networking | 1x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | 1 |
| PCIe #2 | 1 x PCIe interface |
| Audio | 1 x I2S interface |
| Peripheral Interfaces | Up to 2 I2C Up to 3 SPI Up to 4 PWM Up to 4 UART Up to 2 CAN Bus Up to 2 SDIO interfaces JTAG interface 8 bit CSI INPUT MIPI-CSI INPUT |
| Power Supply | single 5V |
| Operating System | Linux |
| Operating System #2 | Android |
| Development System | Debian |
| Development System #2 | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_MX6_Flyer.pdf | 354.63 KB | download – i.Core_MX6_Flyer.pdf |
