- Engicam

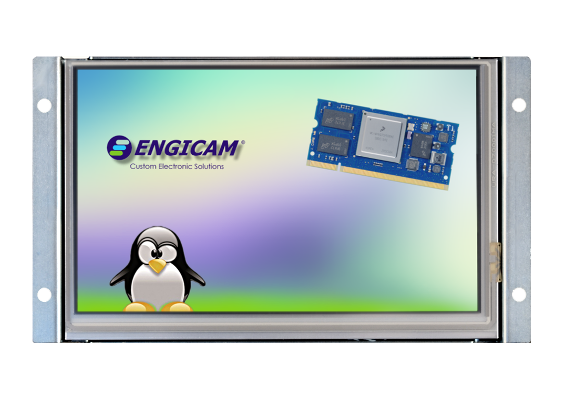

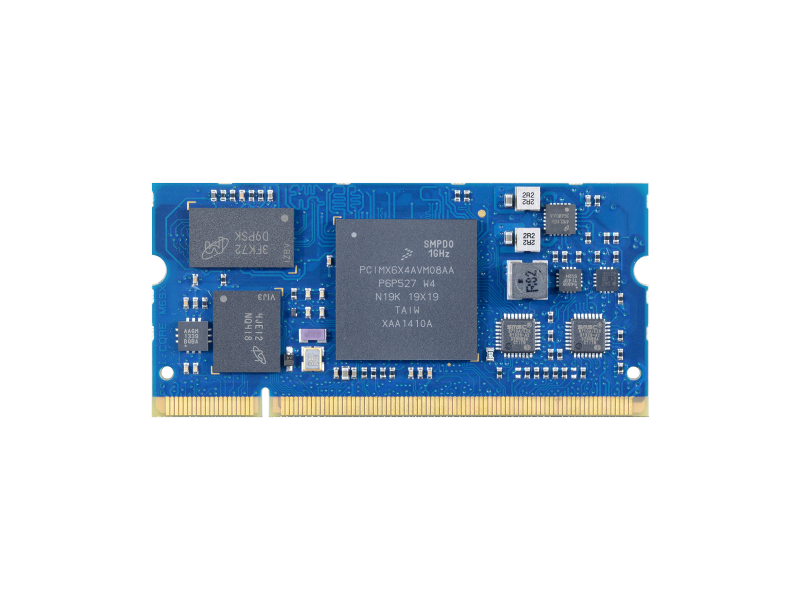

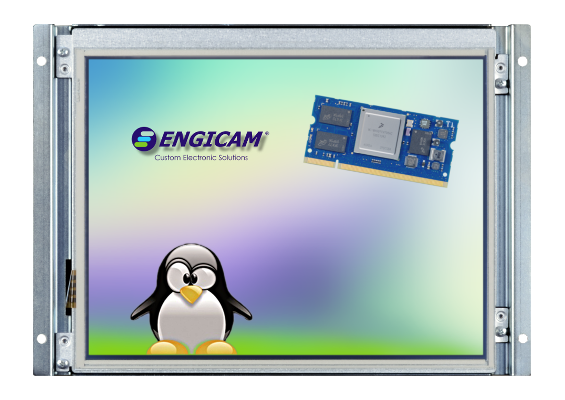

i.Core MX6SX
Access technical documents, software, and support resources.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX 6SoloX |
|---|---|
| CPU #2 | Manufacturer: NXP |
| Cores | ARM |
| Cores #2 | 1x Cortex™-A9,1x Cortex™-M4 |
| Cores #3 | 1 cores |
| Memory | DDR3L@800MTs |
| Memory #2 | 512MB up to 1GB |
| Graphics & AI | GPU3D—3D Graphics Processing Unit (OpenGL ES 2.0) GPU2D—2D Graphics Processing Unit (BitBlt) GPUVG—OpenVG 1.1 |
| Video Interfaces | LVDS |
| Video Processing Unit Capabilities | Up to 1366x768 |
| Mass Storage | 512MB Nand Flash |
| Mass Storage #2 | NAND |
| Networking | 2x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | 1 |
| PCIe #2 | 1 x PCIe interface |
| Audio | 1 x I2S interface |
| Peripheral Interfaces | Up to 3 I2C Up to 4 SPI Up to 6 PWM Up to 5 UART Up to 2 CAN Bus Up to 2 SDIO interfaces JTAG interface Up to 8 ADC Up to 4 Video ADC |
| Power Supply | single 5V |
| Operating System | Linux |
| Operating System #2 | Freeertos |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | 67.6 x 32 mm |
| Product availability | 2035 |
