- Engicam

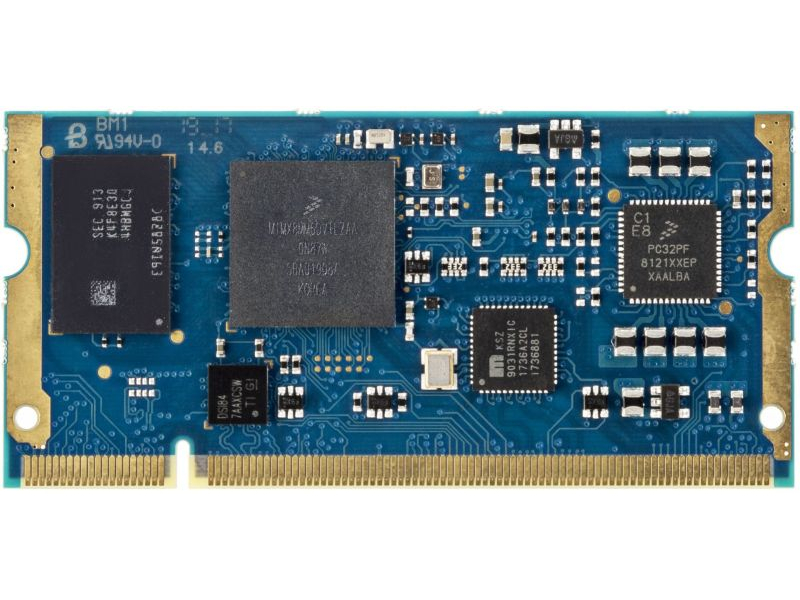

i.Core MX8M Mini
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX8M MINI |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | Quad ARM Cortex-A53 @ 1.6 GHz and Cortex-M4 @ 400MHz |
| Cores #3 | 4 cores |
| Memory | LPDDR4@3000MTs |
| Memory #2 | 1GB up to 4GB |
| Graphics & AI | GCNanoUltra for 3D acceleration, GC320 for 2D acceleration |
| Video Interfaces | DSI, LVDS |
| Video Processing Unit Capabilities | 1080p60 HEVC (h.265, VP8, VP9) dec; 1080p60 (h.264, VP8) enc |
| Mass Storage | Starting from 4GB eMMC |
| Mass Storage #2 | EMMC |
| Networking | 1x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | 1 |
| PCIe #2 | 1 x PCIe Gen2 interface |
| Audio | 1 x I2S interface |
| Peripheral Interfaces | 2x I2C2x SPI4x UART JTAG2x SDIO interfaces MIPI-CSI 4-Lanes |
| Power Supply | single 5V |
| Operating System | Linux |
| Operating System #2 | Android |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2034 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_MX8M_mini_Flyer.pdf | 262.31 KB | download – i.Core_MX8M_mini_Flyer.pdf |
| PCN_2106-1.pdf | 125.64 KB | download – PCN_2106-1.pdf |
| PCN_2110-1.pdf | 50.17 KB | download – PCN_2110-1.pdf |
| PCN_2202-2.pdf | 617.60 KB | download – PCN_2202-2.pdf |
